X329 Body Harness to Floor Console Harness (UQA or UQS)
X329 Body Harness to Floor Console Harness (UQA or UQS)

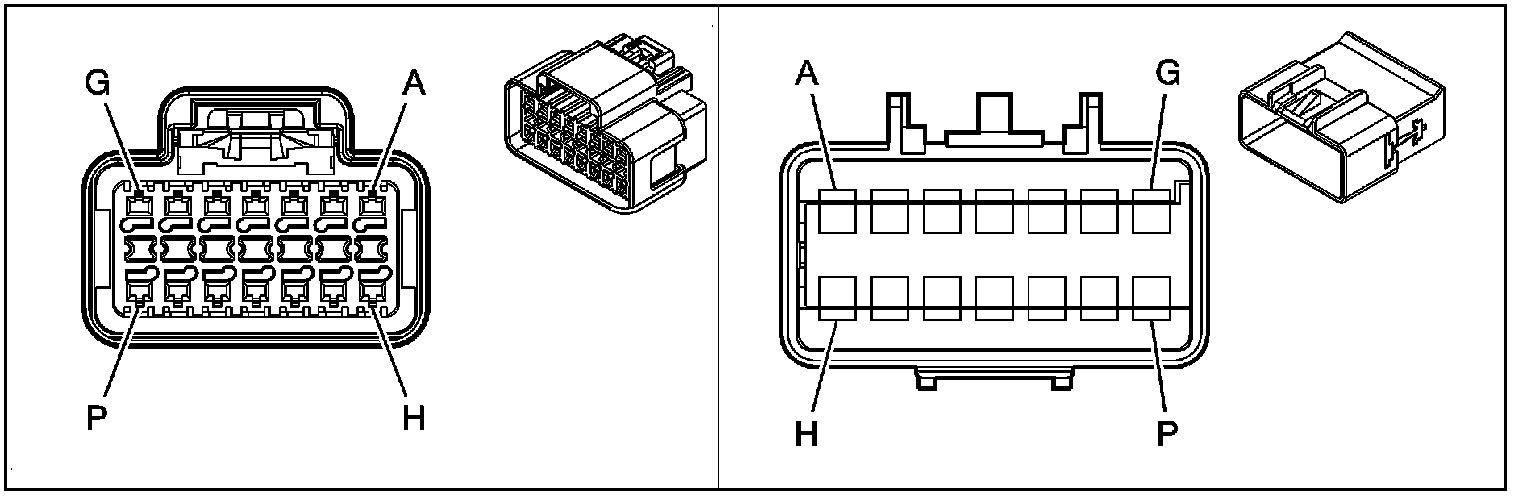

Inline Harness Connector End Views

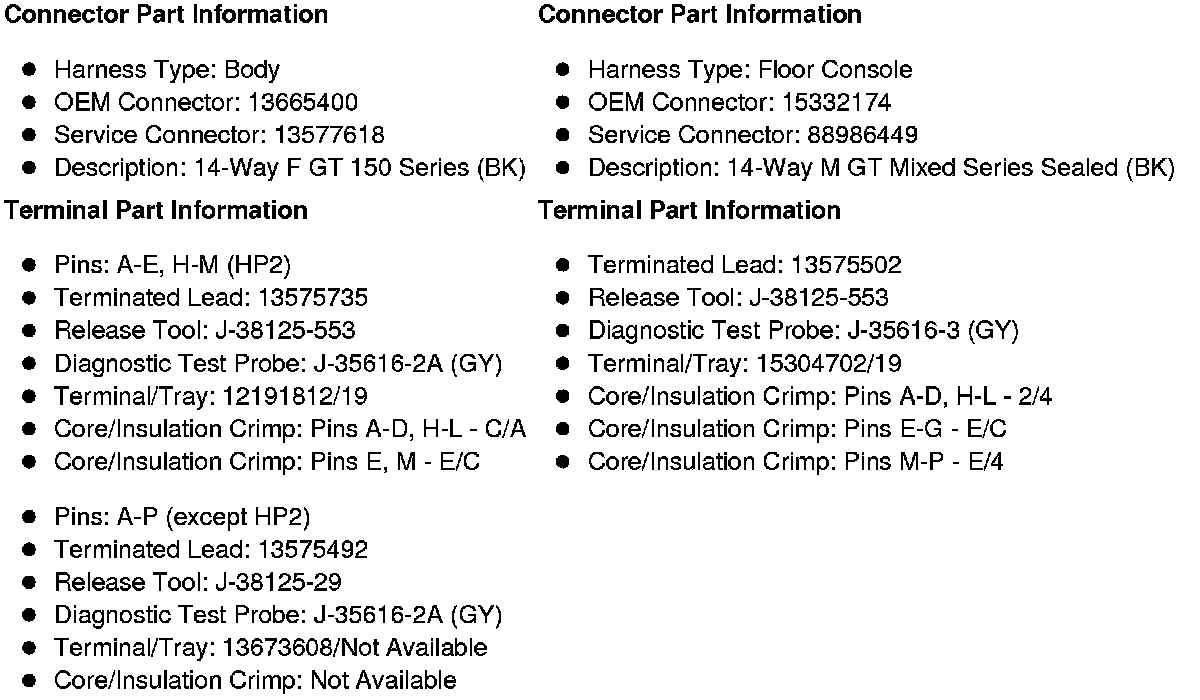

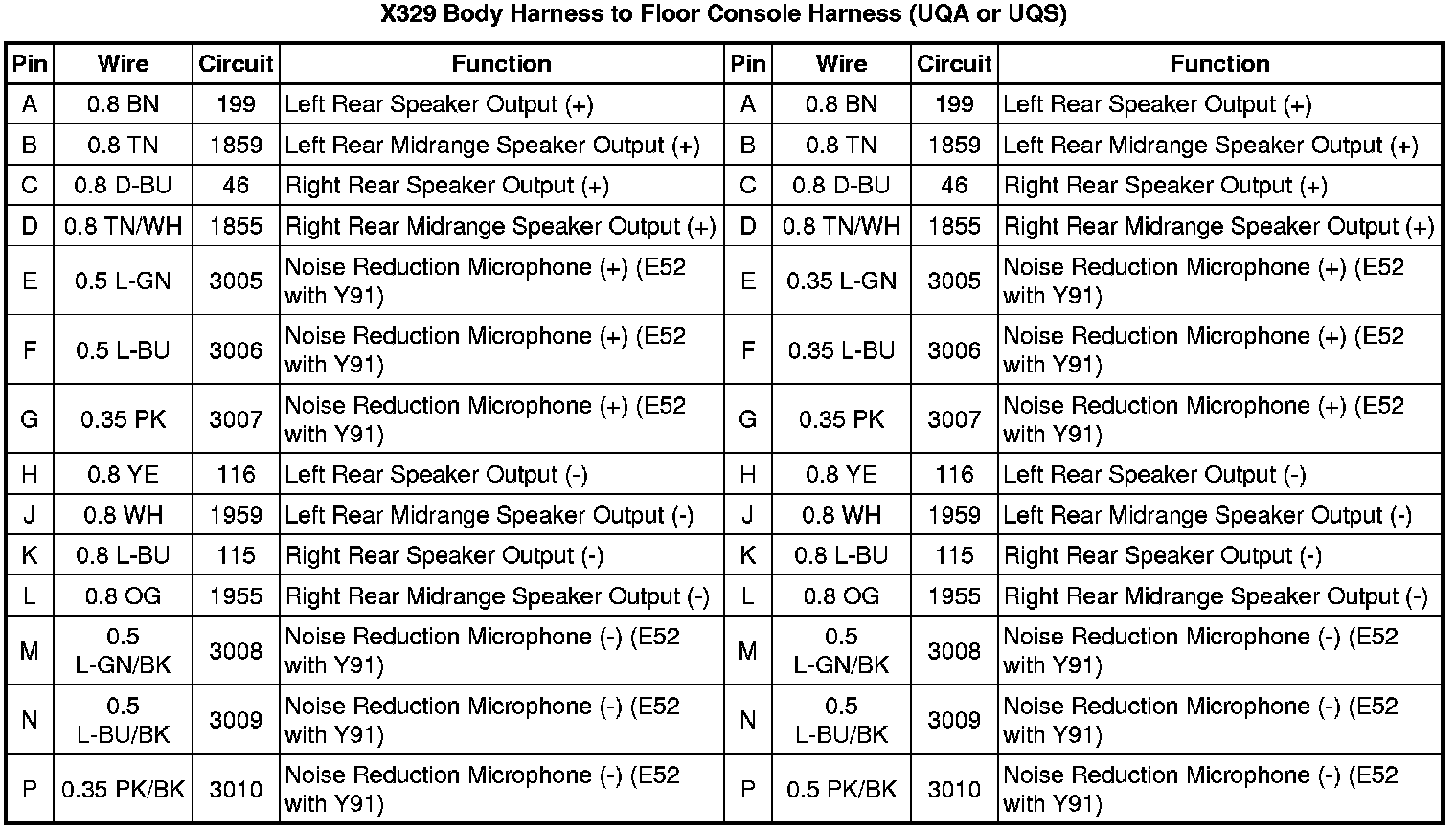

X329 Body Harness to Floor Console Harness (UQA or UQS)
