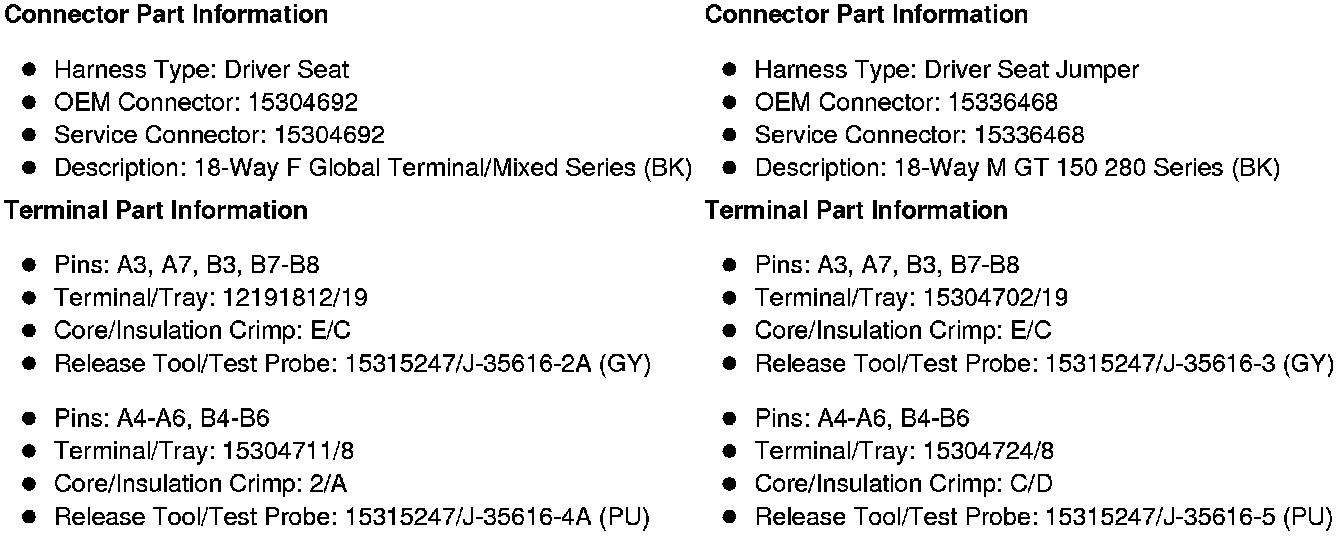

X324 Driver Seat Harness to Driver Seat Jumper Harness (AN3)

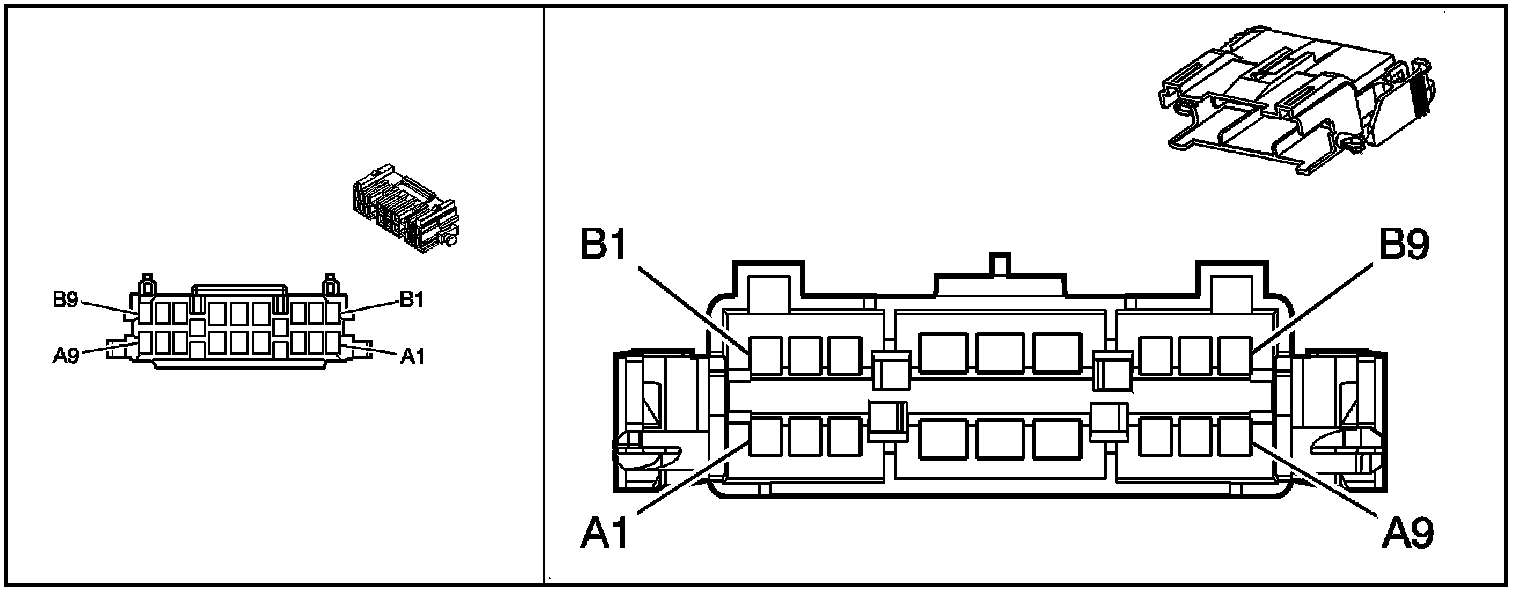

Inline Harness Connector End Views

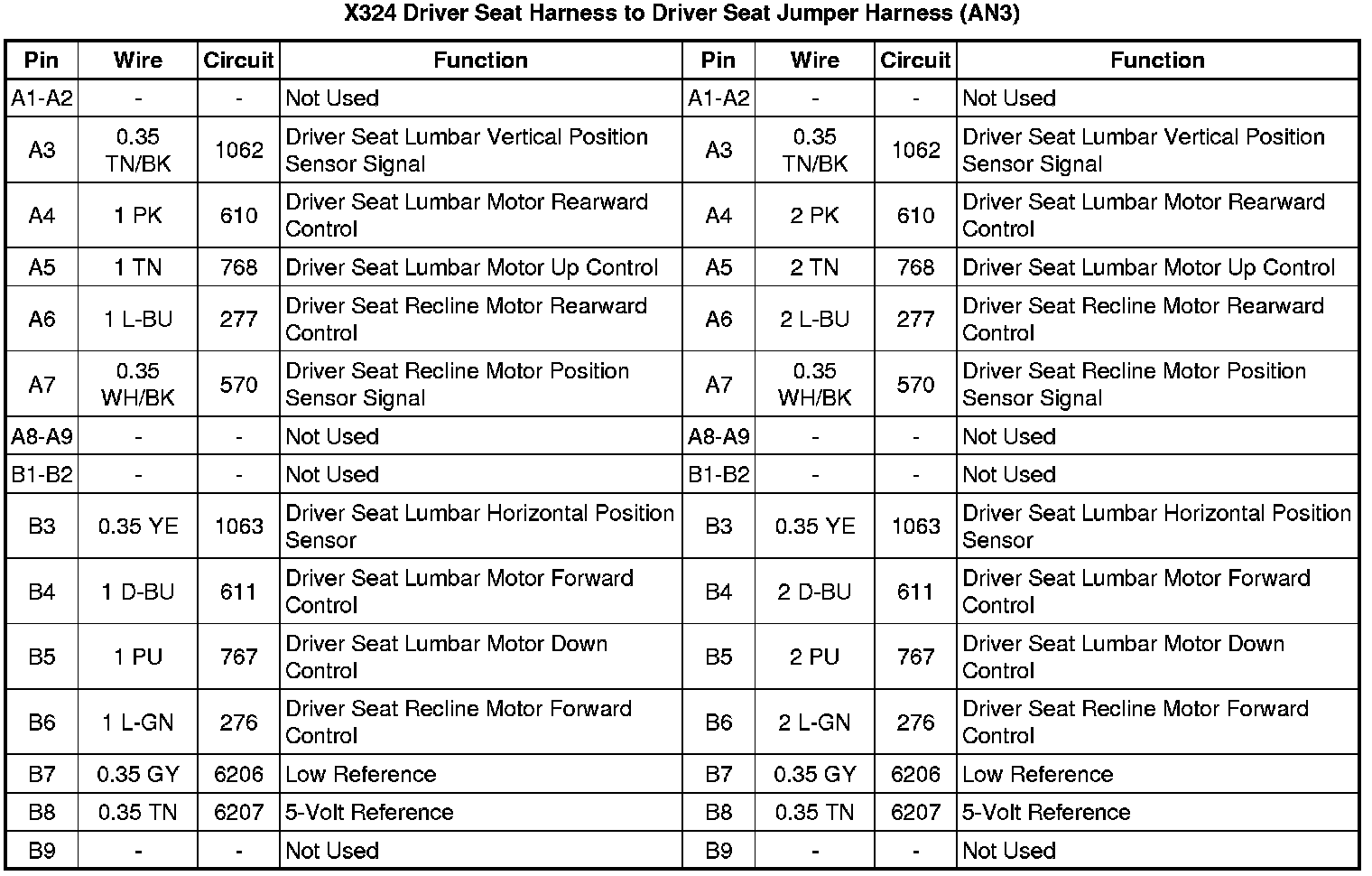

X324 Driver Seat Harness to Driver Seat Jumper Harness (AN3)
