X323 Body Harness to Driver Seat Harness (N48)
X323 Body Harness to Driver Seat Harness (N48)

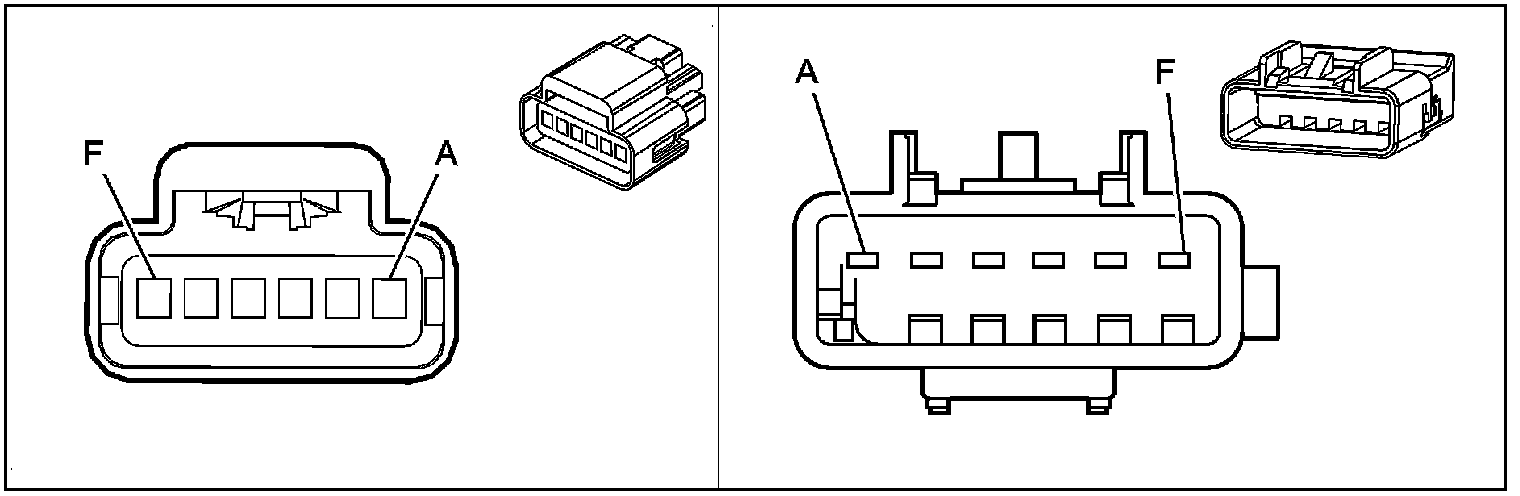

Inline Harness Connector End Views

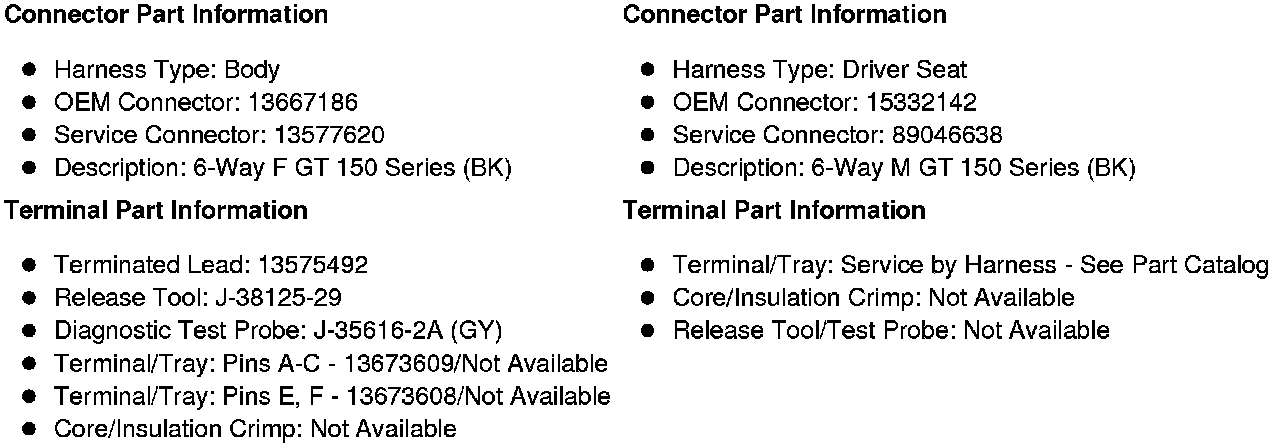

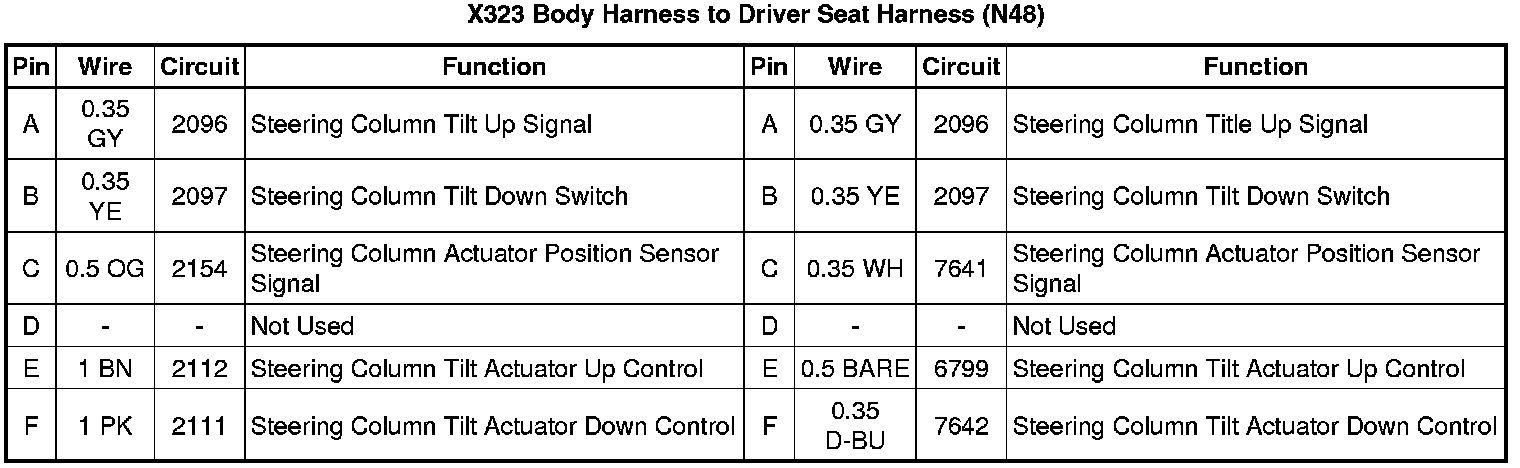

X323 Body Harness to Driver Seat Harness (N48)
