X322 Body Harness to Headliner Harness (UVC without UVB, E52 or TB7)

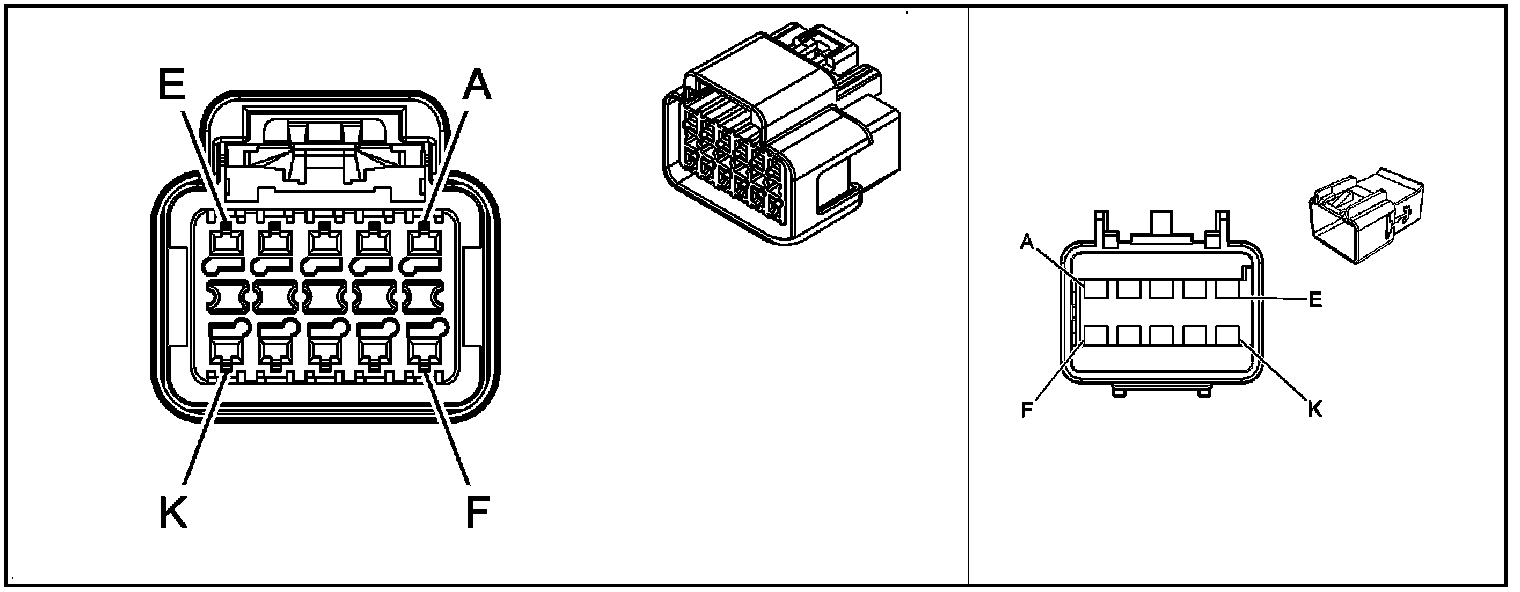

Inline Harness Connector End Views

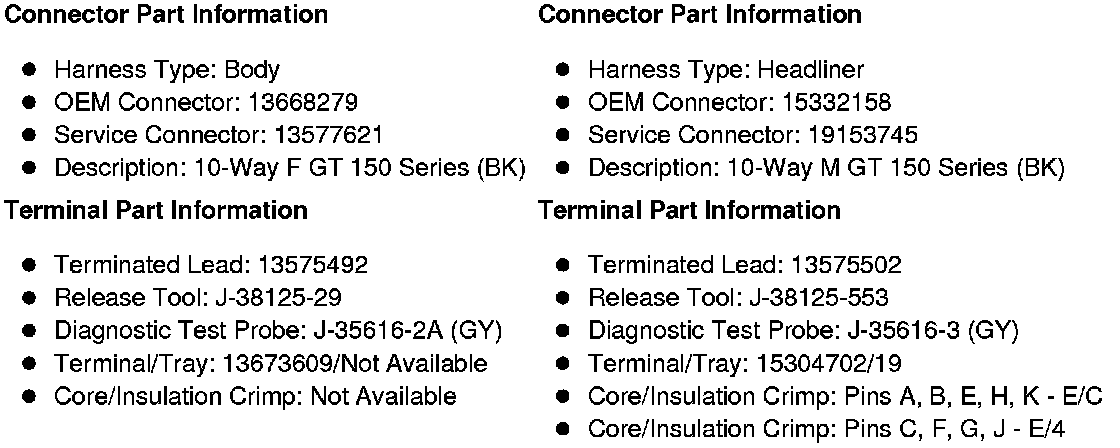

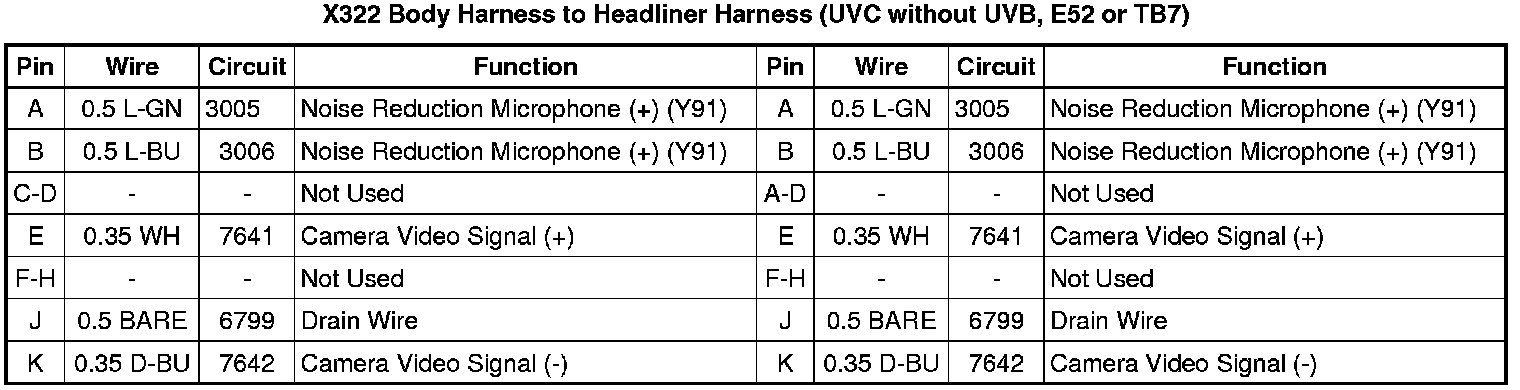

X322 Body Harness to Headliner Harness (UVC without UVB, E52 or TB7)
