X310 Body Harness to Chassis Harness (UD7 with UVC, without E52 or TB7)

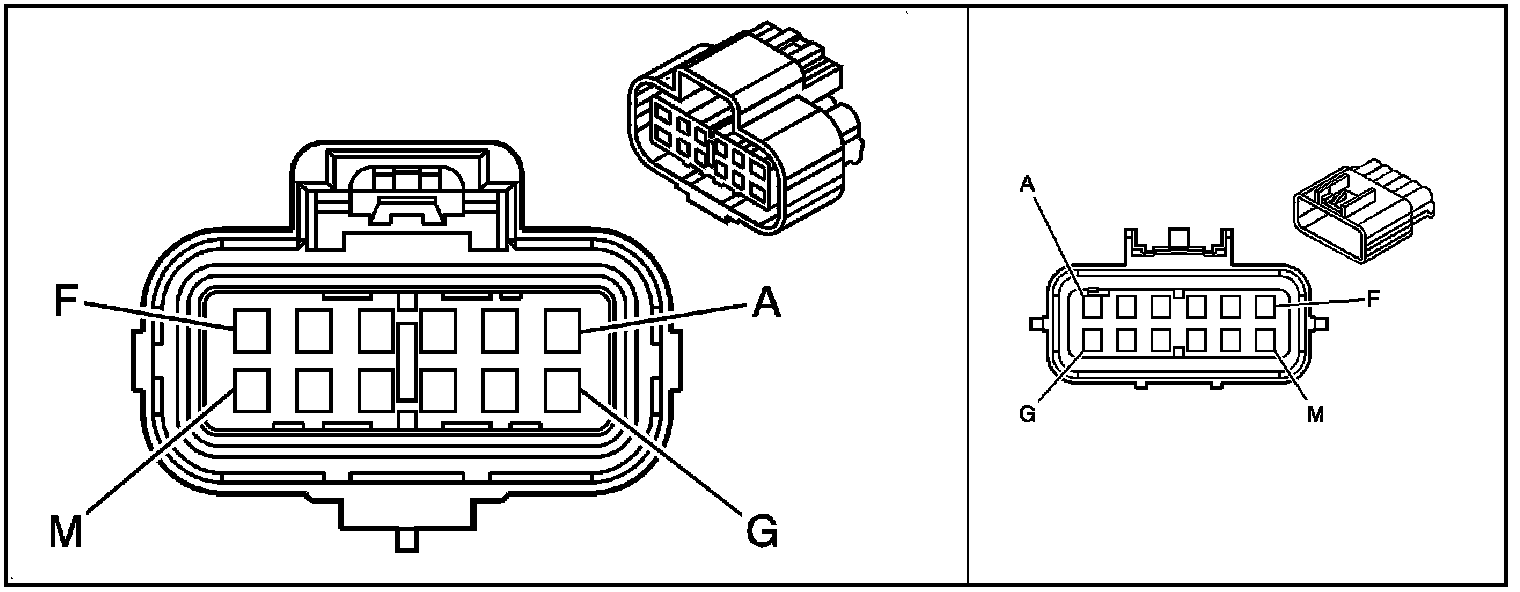

Inline Harness Connector End Views

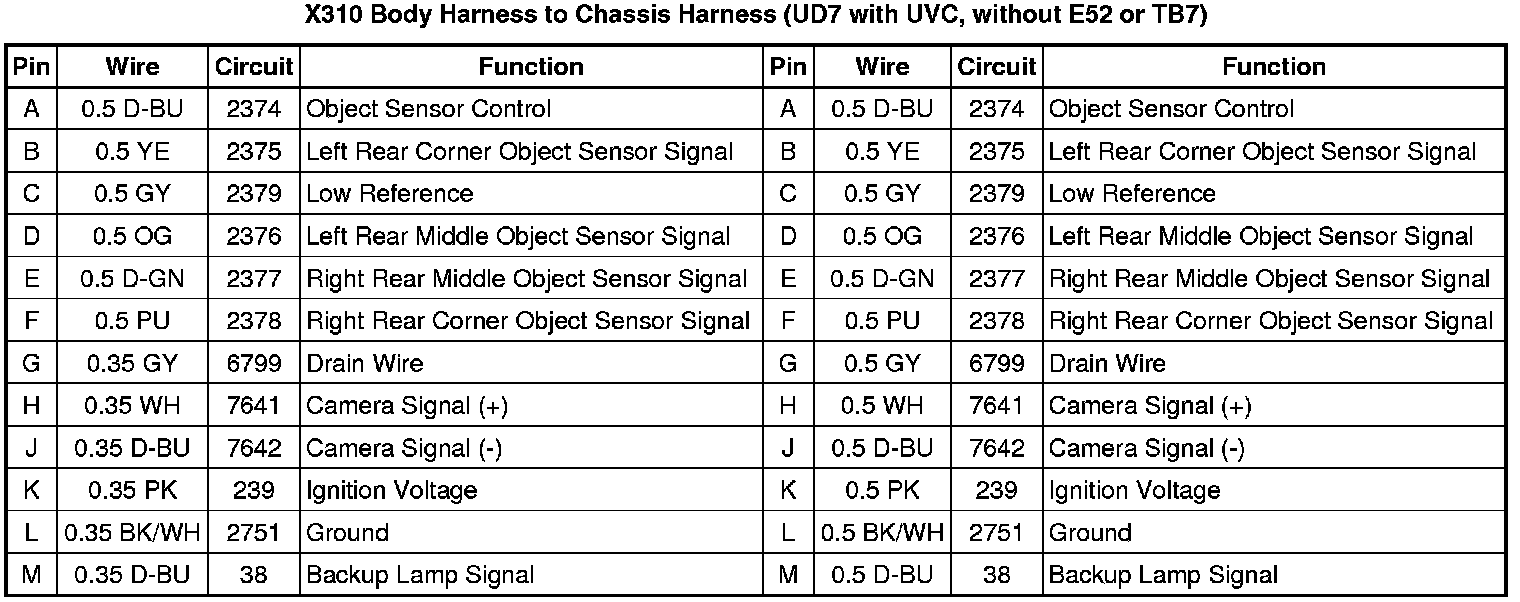

X310 Body Harness to Chassis Harness (UD7 with UVC, without E52 or TB7)
