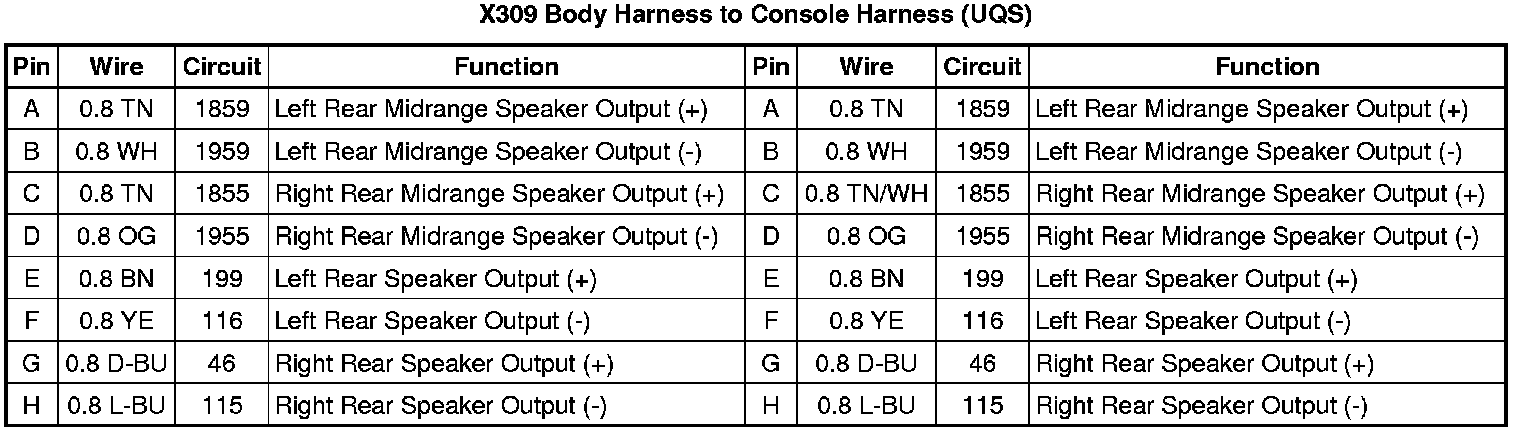

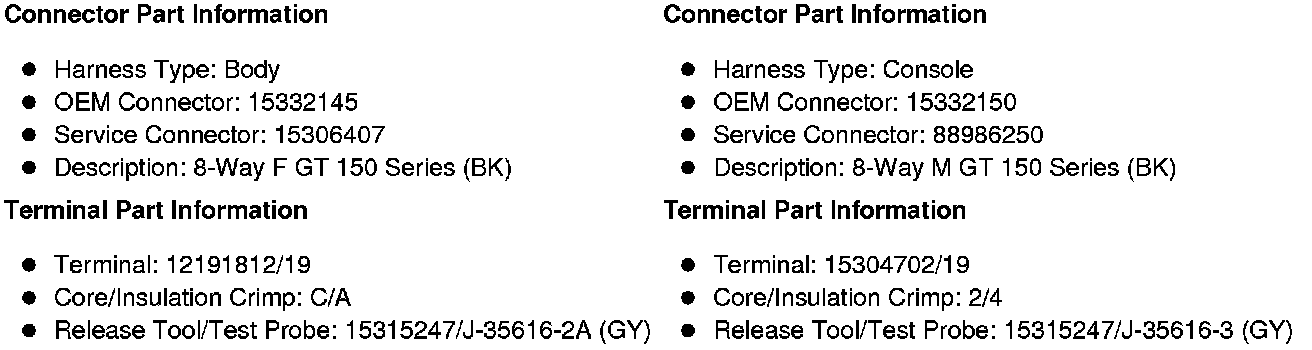

X309 Body Harness to Console Harness (UQS)

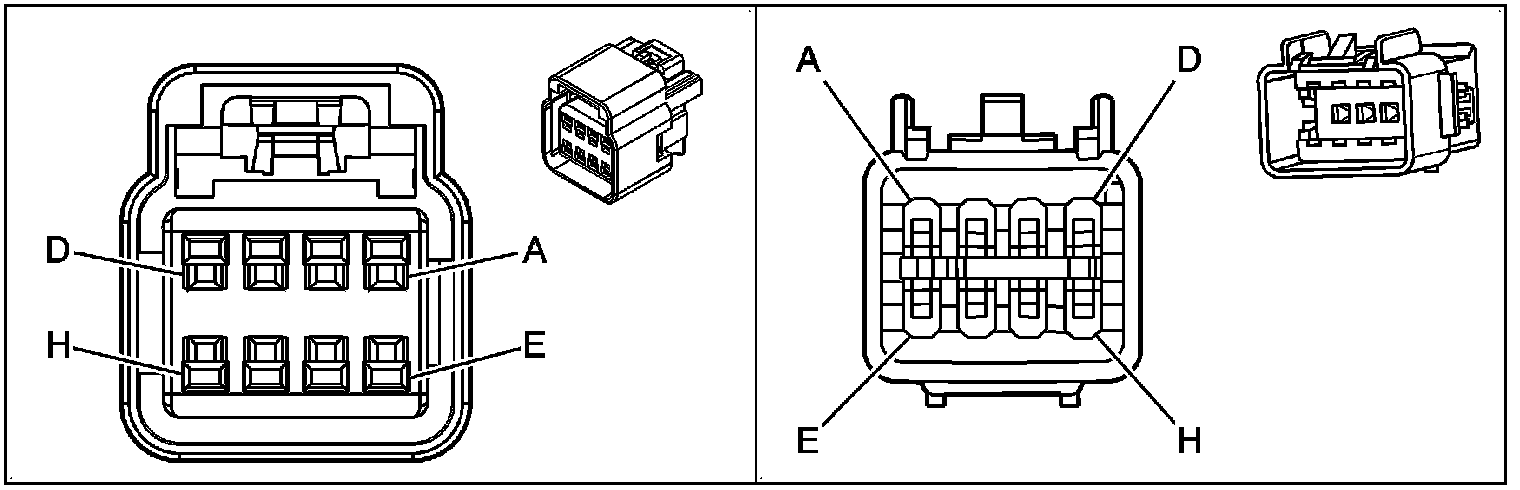

Inline Harness Connector End Views
X309 Body Harness to Console Harness (UQS)
