X308 Body Harness to Left Rear Seat Harness (ARS or KA6)

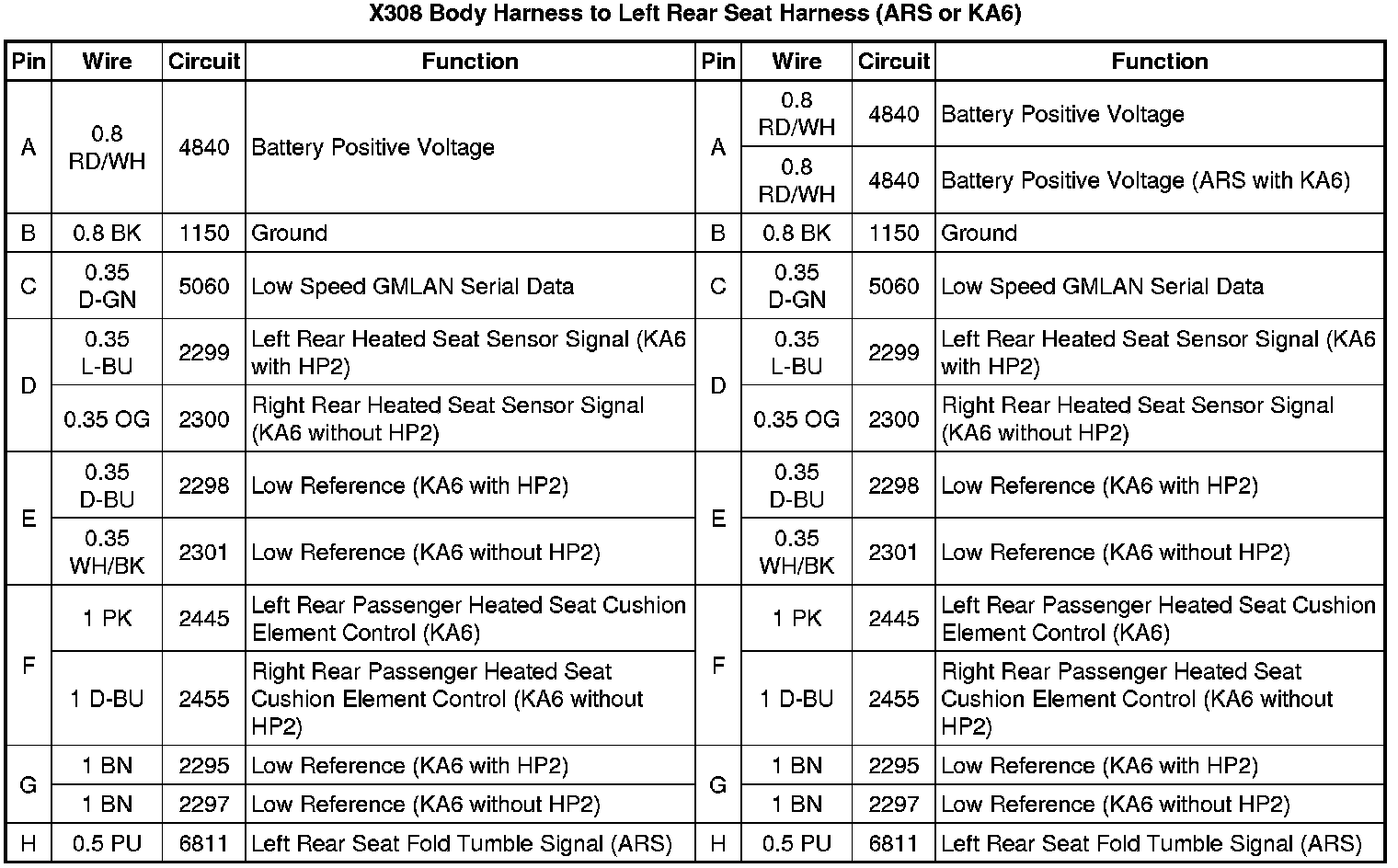

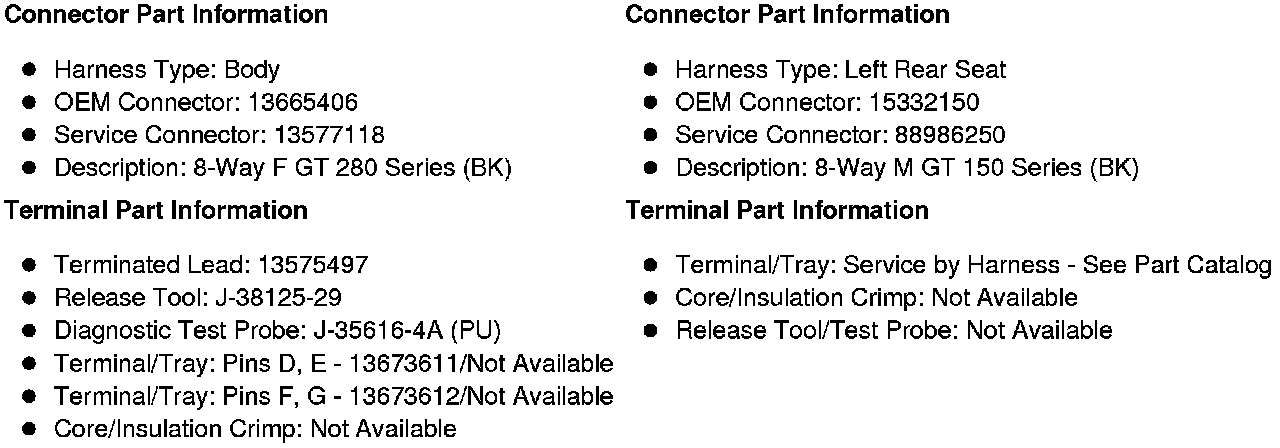

X308 Body Harness to Left Rear Seat Harness (ARS or KA6)

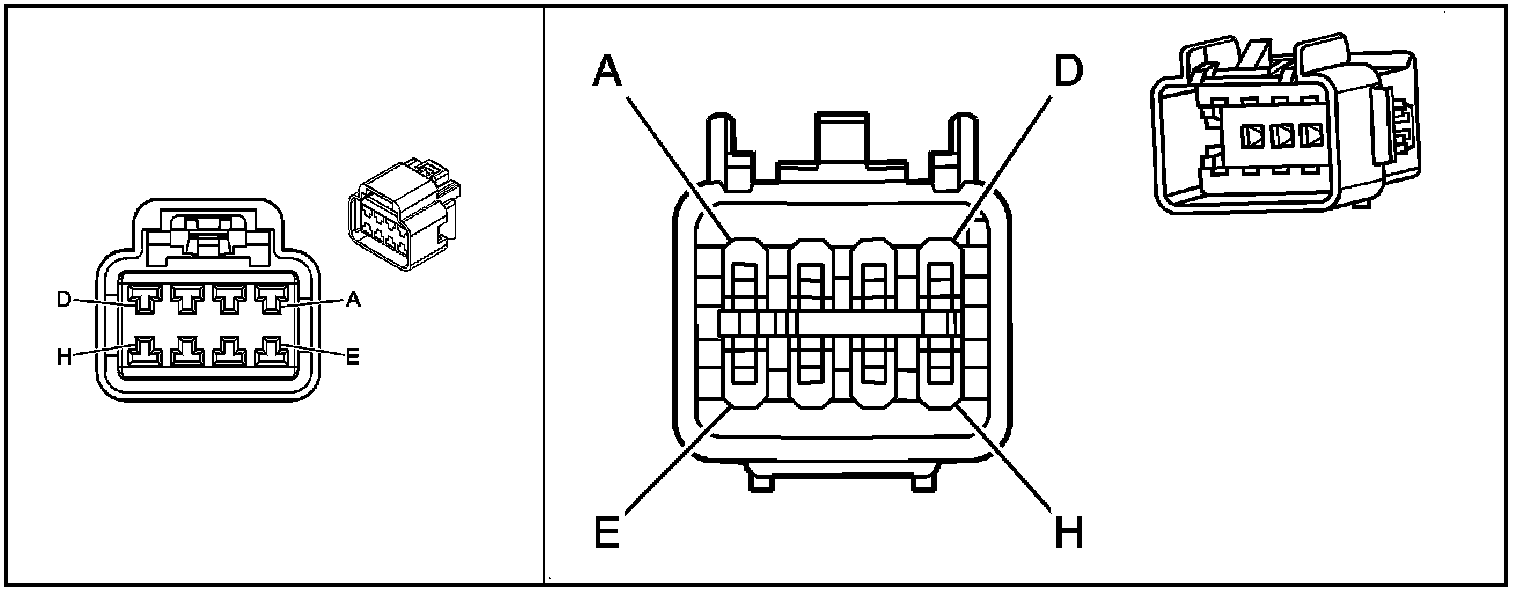

Inline Harness Connector End Views
X308 Body Harness to Left Rear Seat Harness (ARS or KA6)
