X304 Headliner Harness to Overhead Console Harness
X304 Headliner Harness to Overhead Console Harness

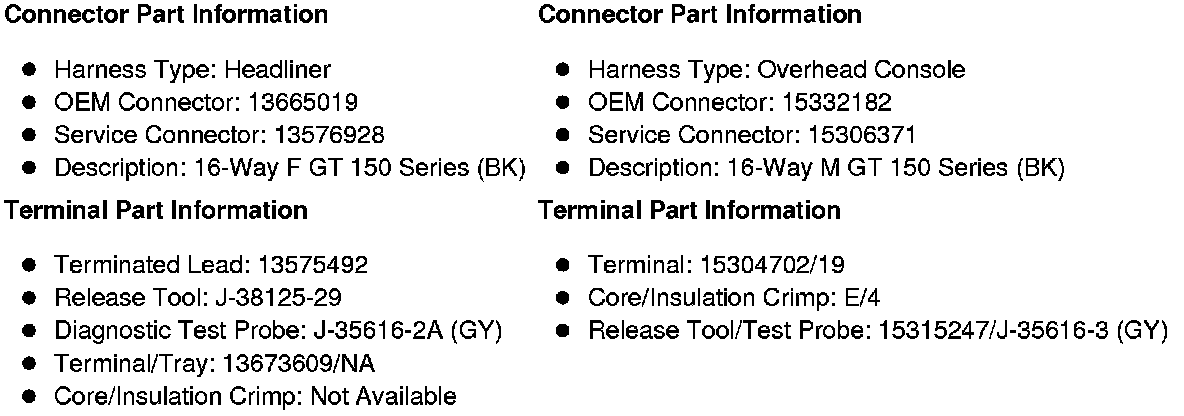

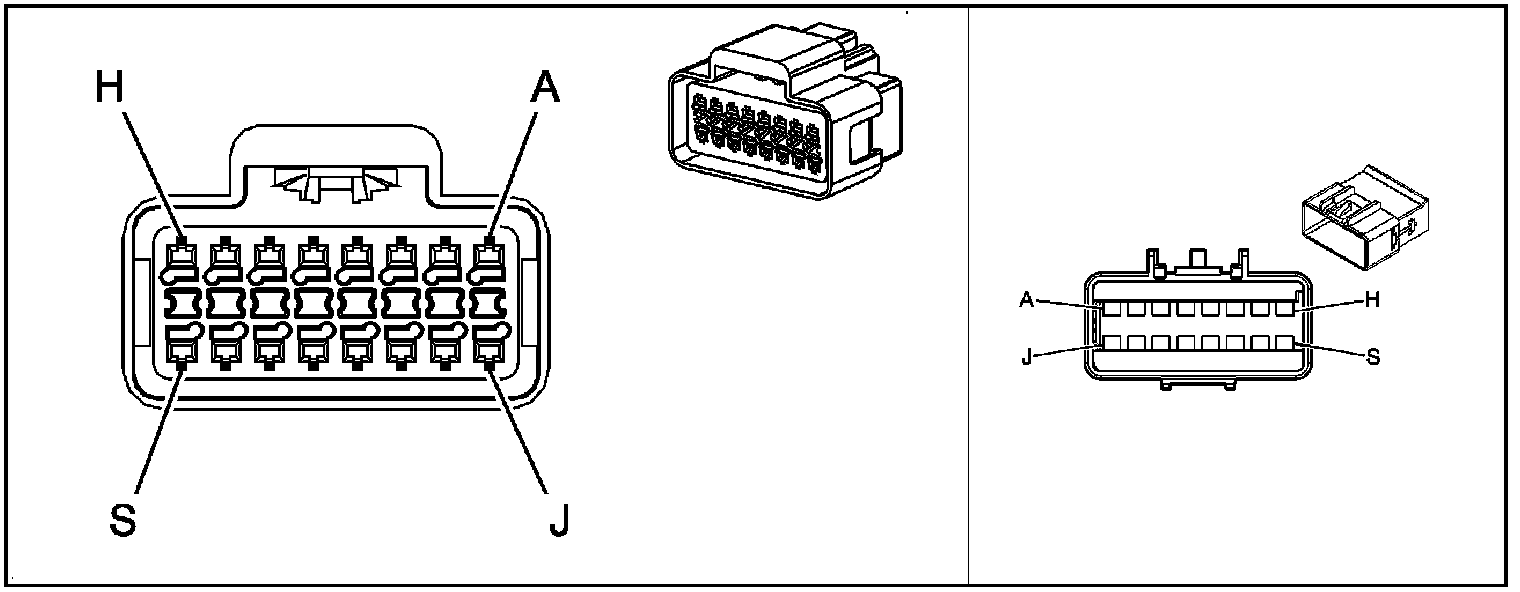

Inline Harness Connector End Views

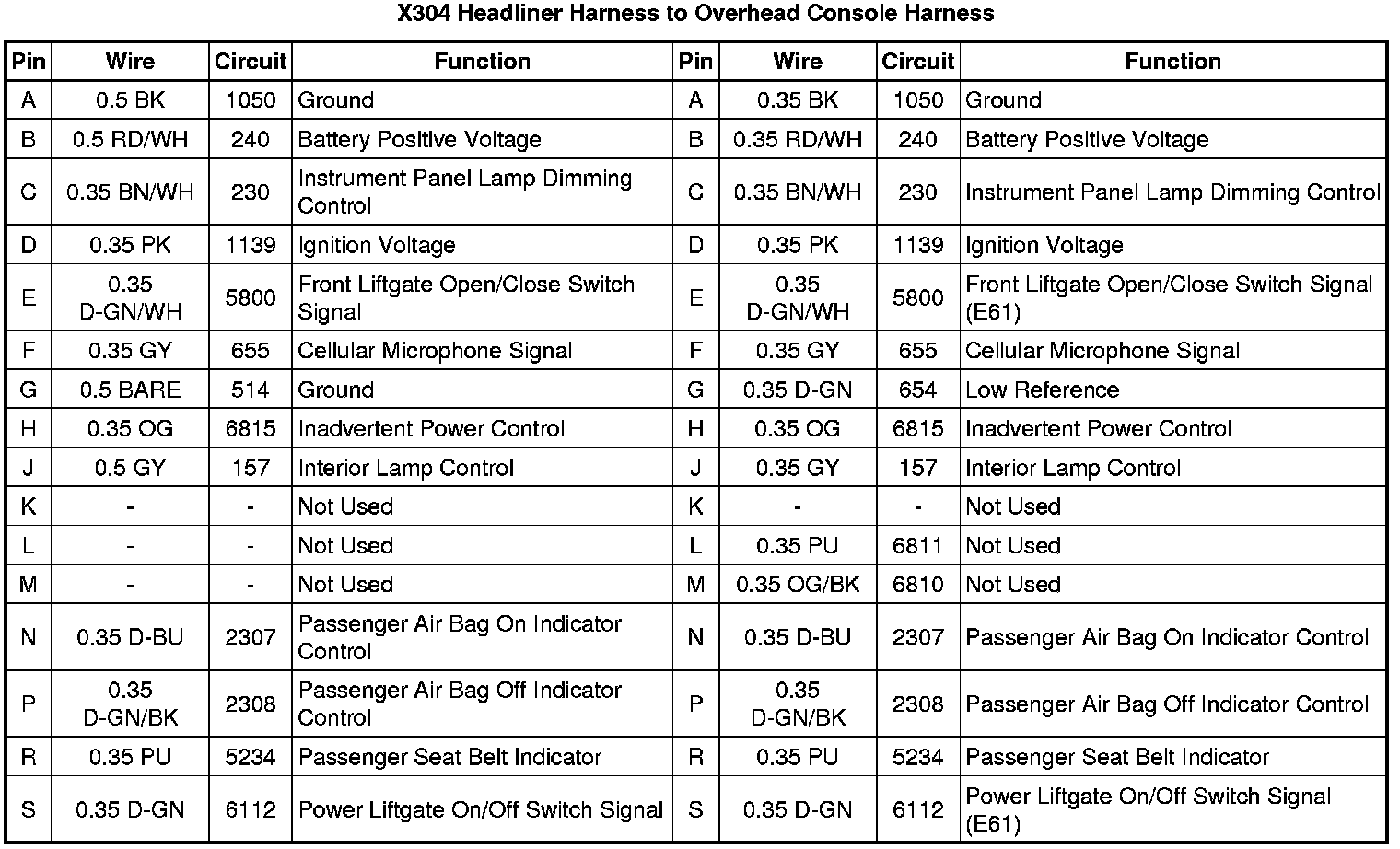

X304 Headliner Harness to Overhead Console Harness
