X277 Steering Wheel Module Coil to Heated Steering Wheel Harness (KA9)

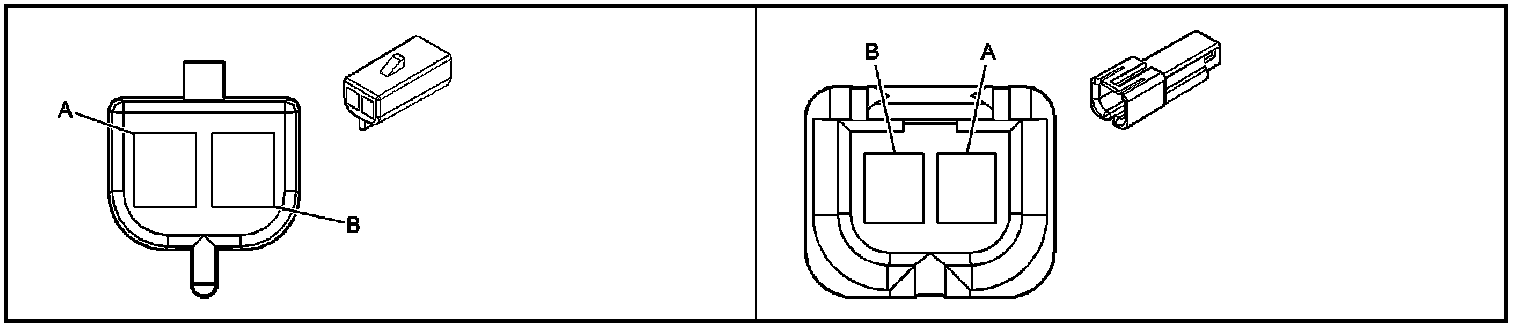

Inline Harness Connector End Views

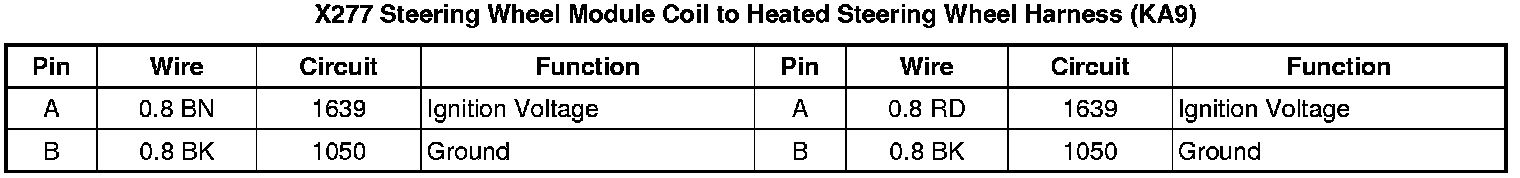

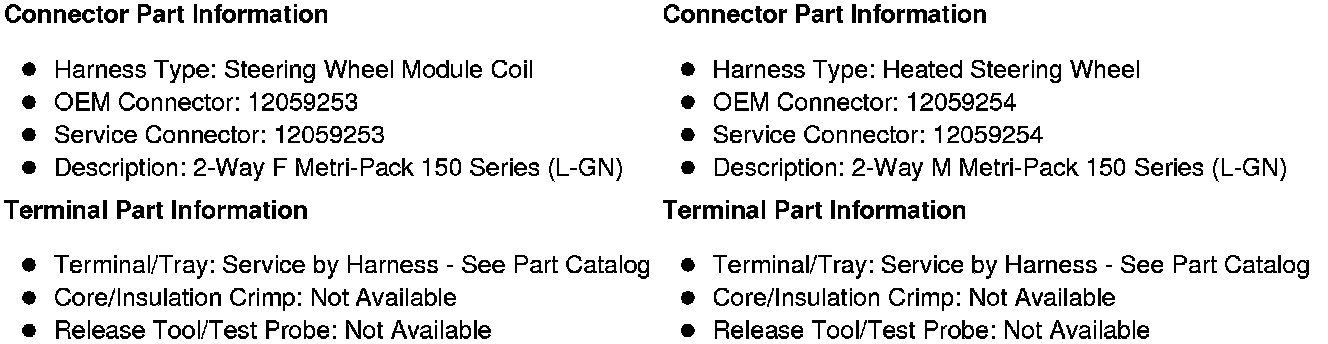

X277 Steering Wheel Module Coil to Heated Steering Wheel Harness (KA9)
