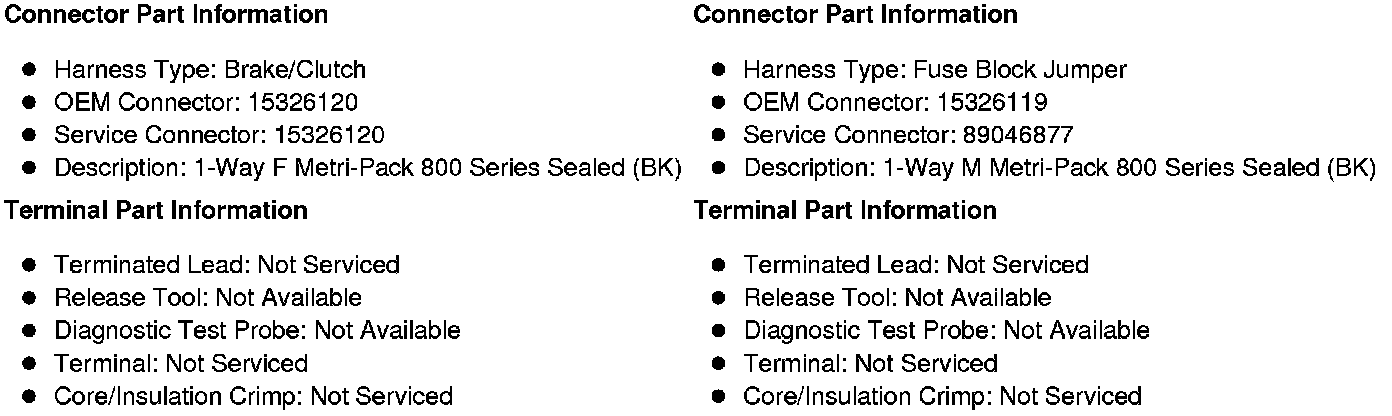

X226 Fuse Block Jumper Harness to Brake/Clutch Harness (6J1)

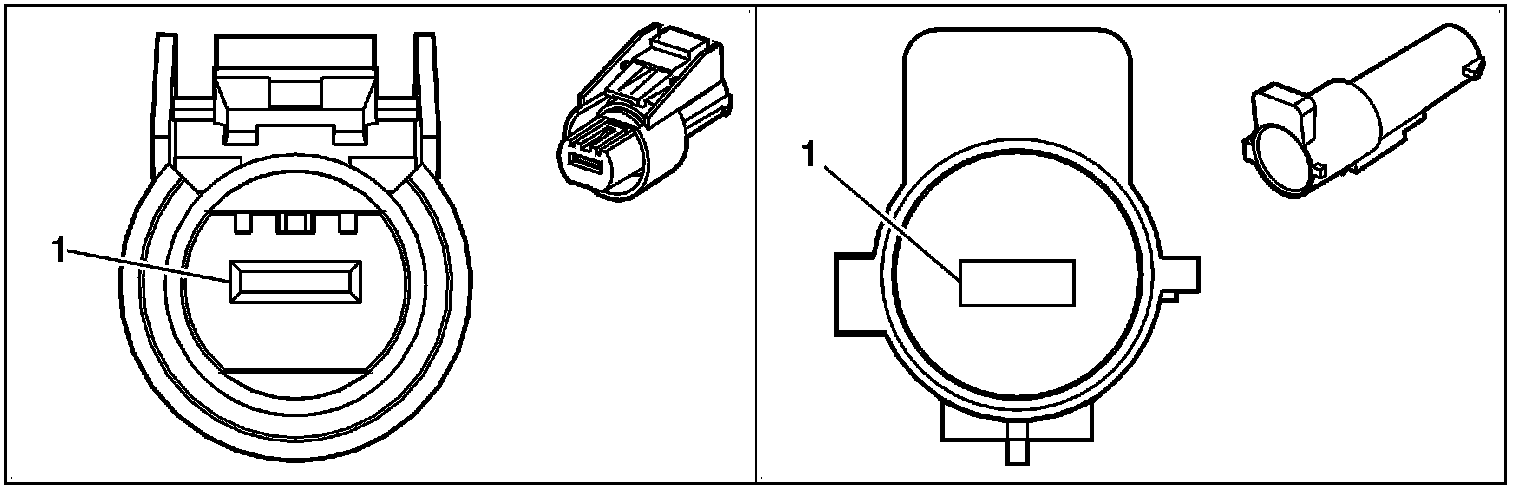

Inline Harness Connector End Views

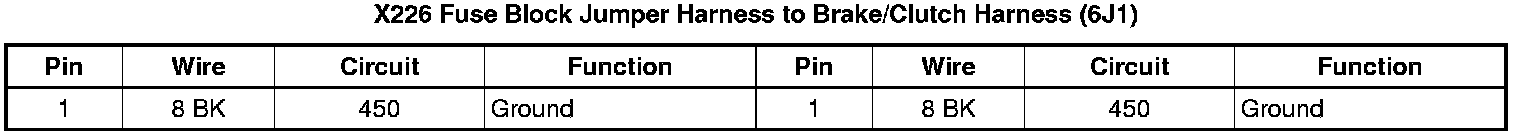

X226 Fuse Block Jumper Harness to Brake/Clutch Harness (6J1)
