X211 Instrument Panel Harness (STZ or Y91) or Instrument Panel Extension Harness (without STZ or Y91) to Console Harness (D07)

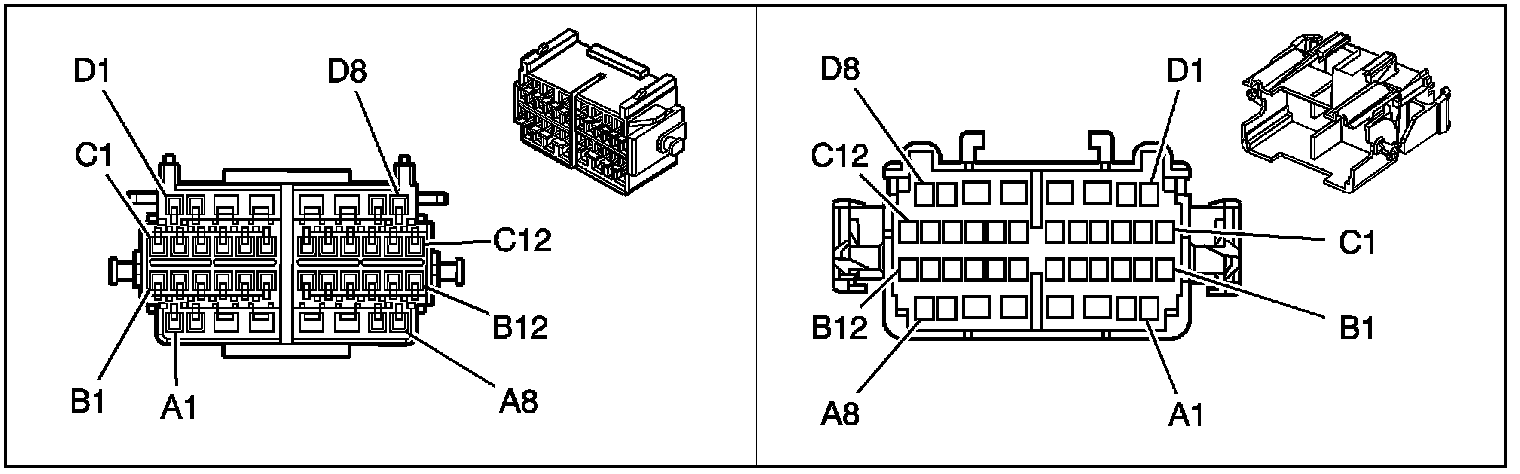

Inline Harness Connector End Views

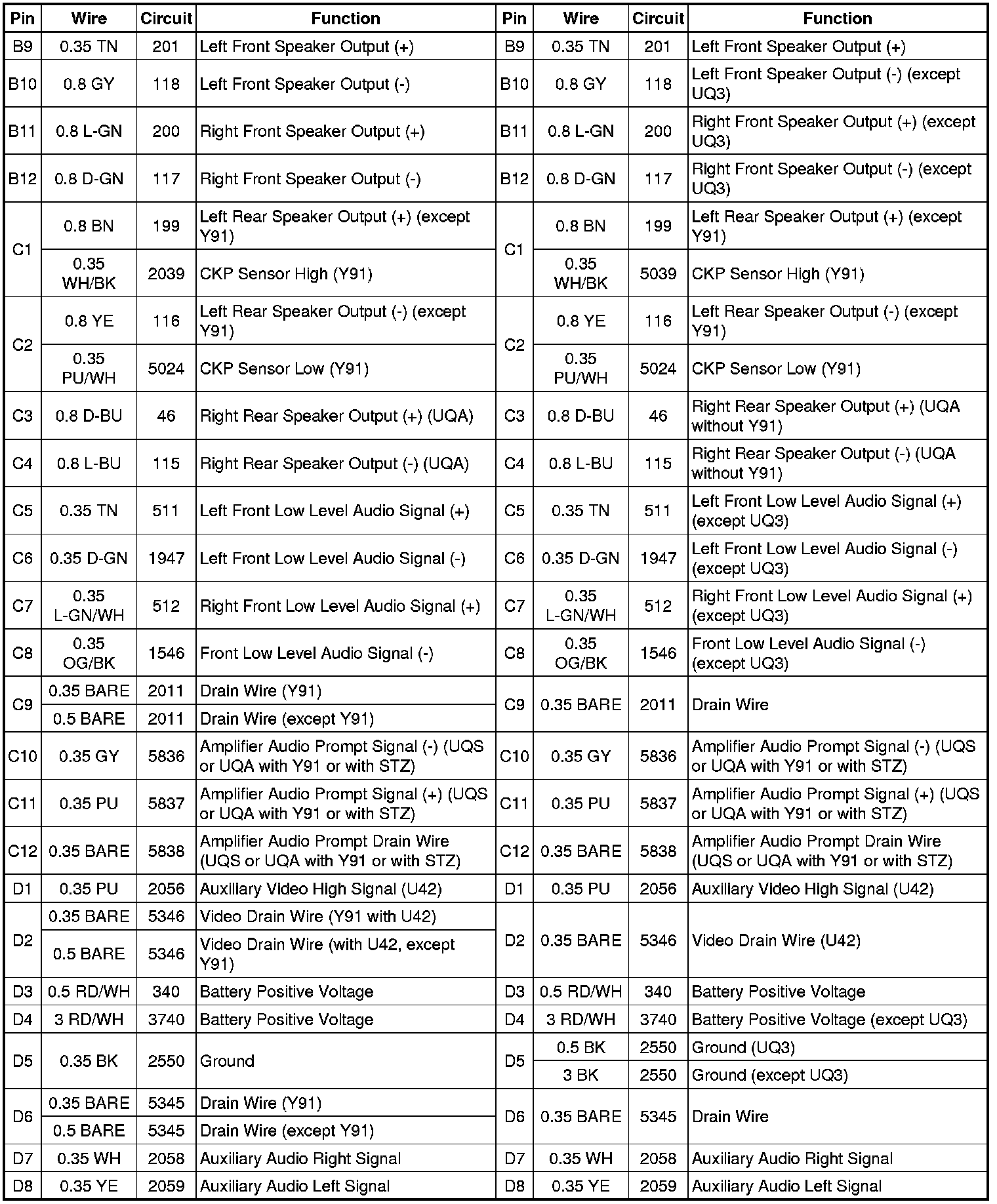

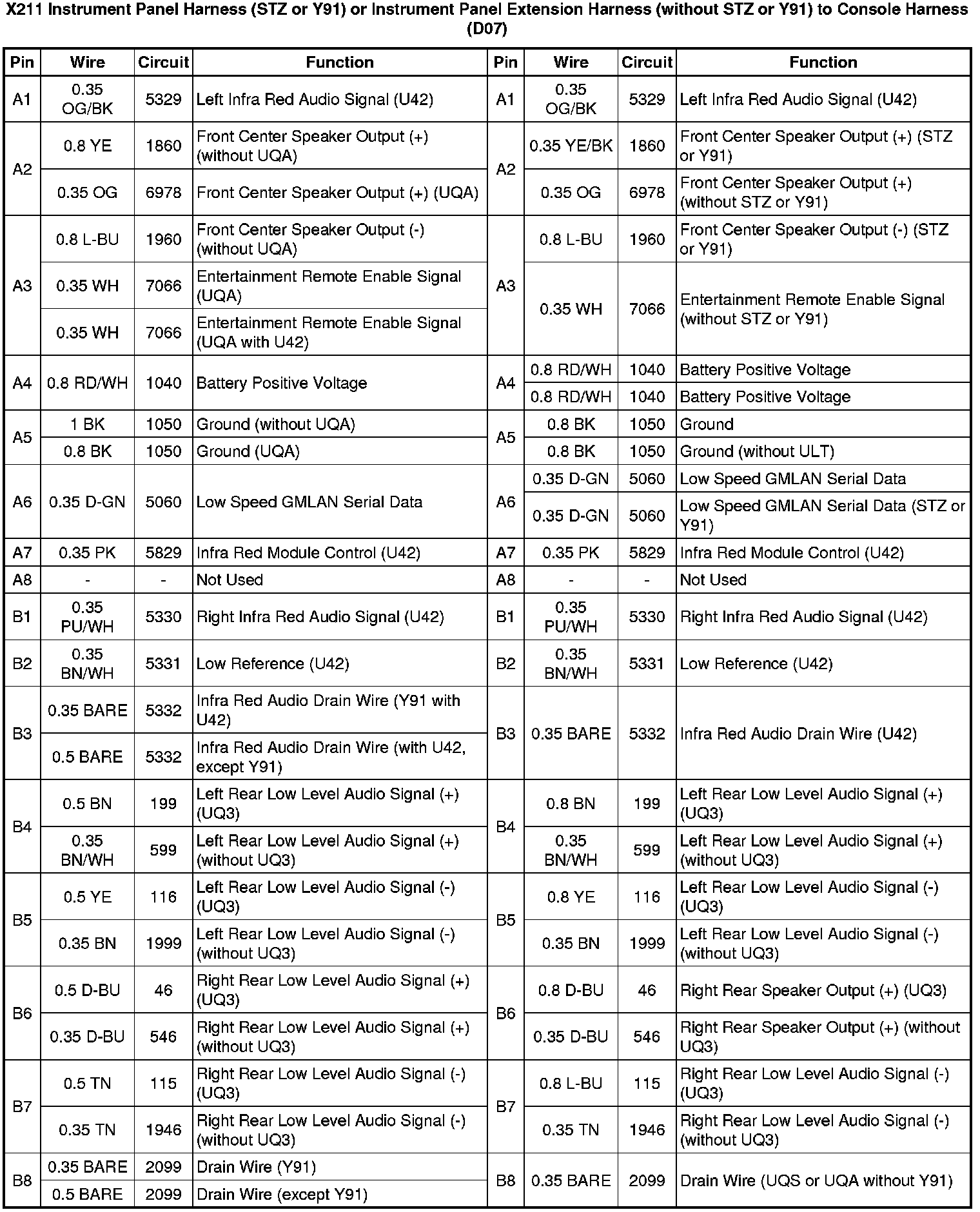

X211 Instrument Panel Harness (STZ or Y91) or Instrument Panel Extension Harness (without STZ or Y91) to Console Harness (D07)
