X206 RH A-Pillar Harness (without DNU) to IP Harness (STZ or Y91) or IP Ext Harness (without STZ or Y91) (except Z75 with DNU)

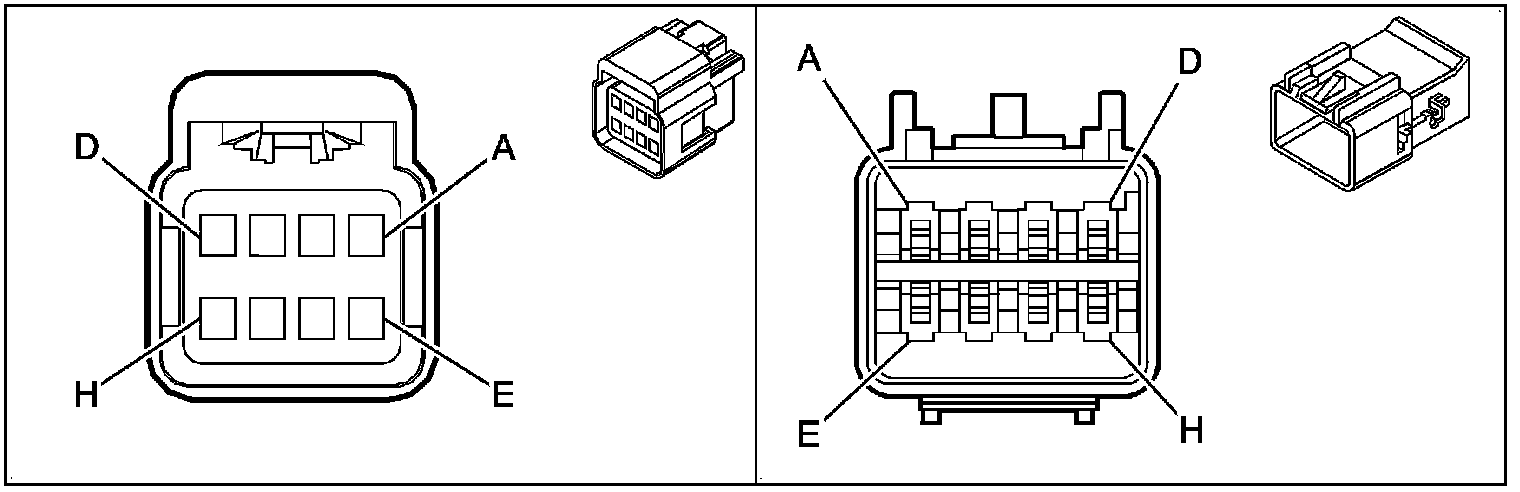

Inline Harness Connector End Views

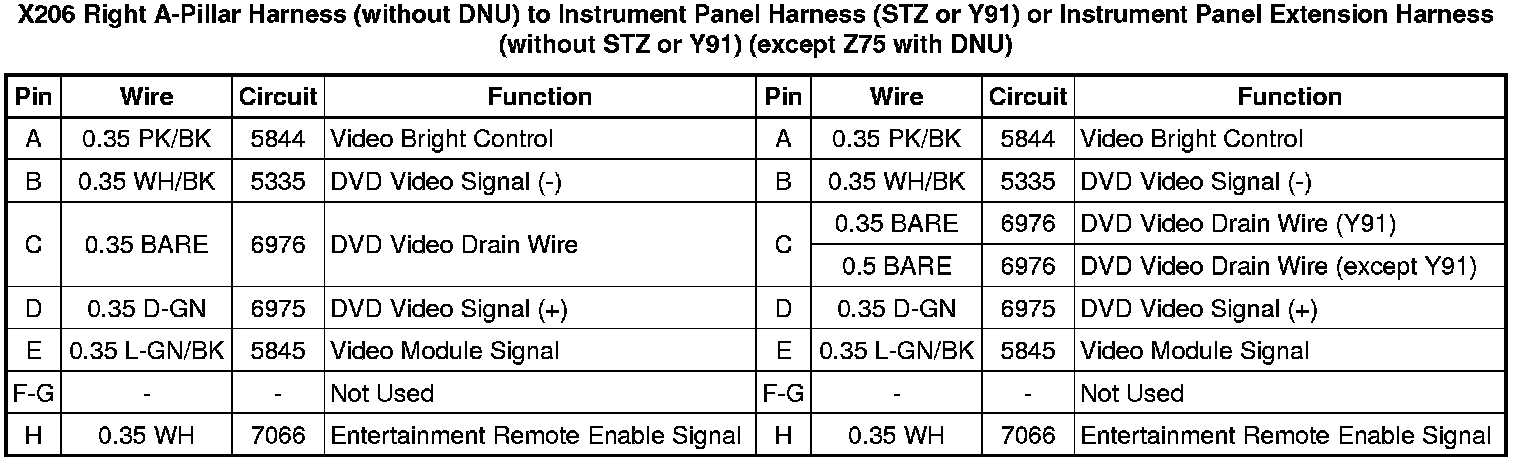

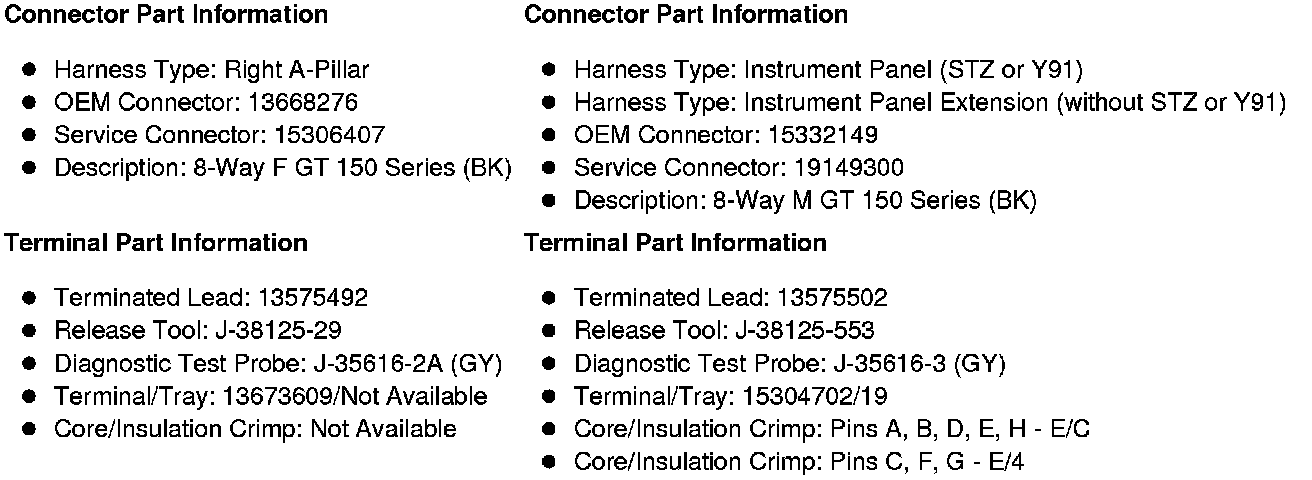

X206 Right A-Pillar Harness (without DNU) to Instrument Panel Harness (STZ or Y91) or Instrument Panel Extension Harness (without STZ or Y91) (except Z75 with DNU)
