X112 Engine Harness to Camshaft Position Sensor Jumper Harness (except 6.0L)

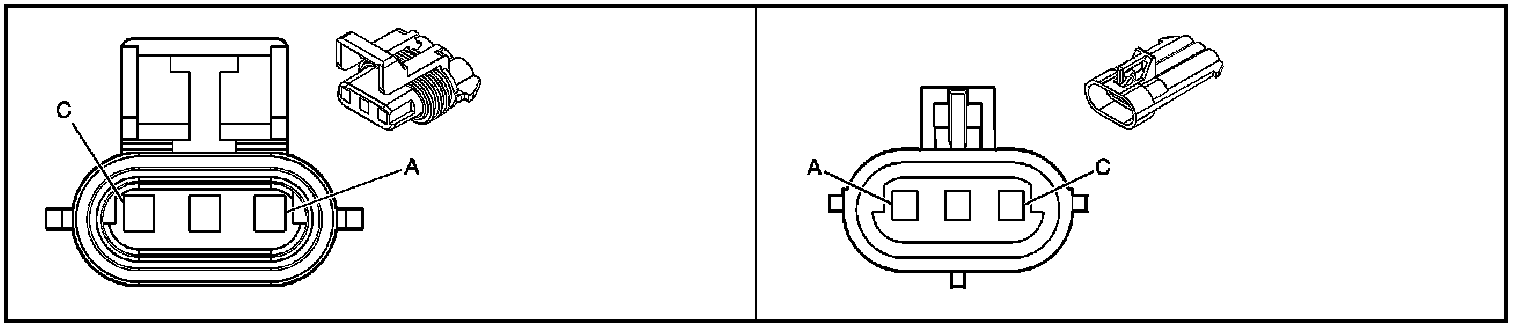

Inline Harness Connector End Views

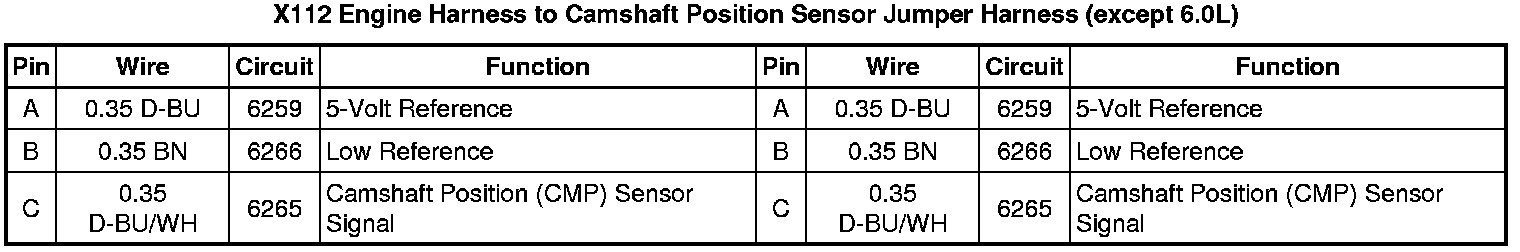

X112 Engine Harness to Camshaft Position Sensor Jumper Harness (except 6.0L)
