X108 Forward Lamp Harness to Forward Lamp Harness (VYU)
X108 Forward Lamp Harness to Forward Lamp Harness (VYU)
Inline Harness Connector End Views

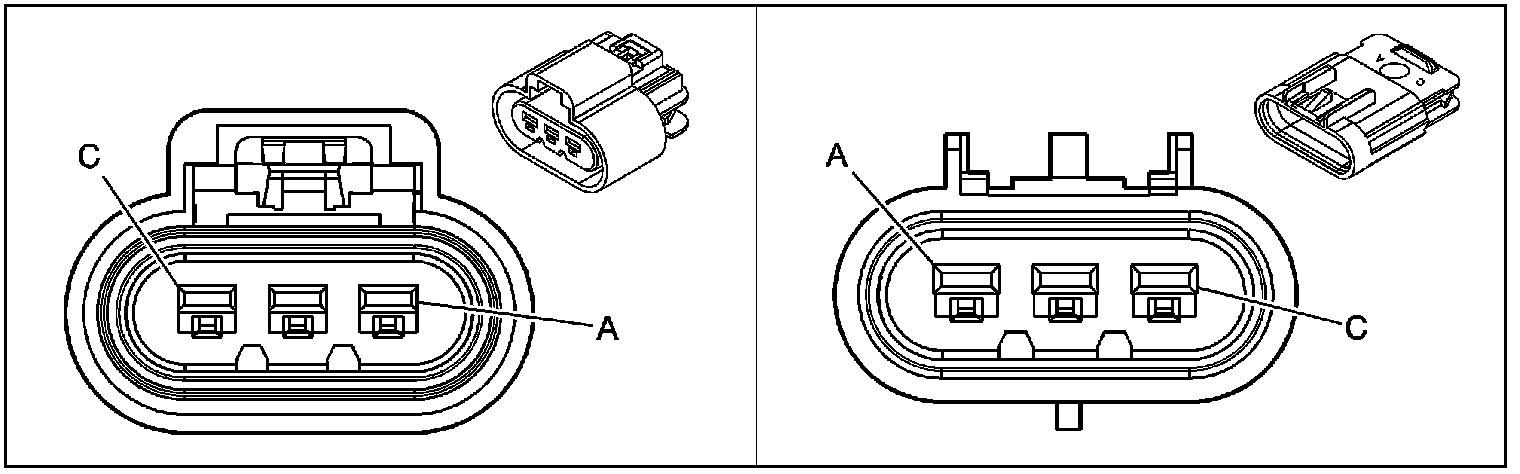

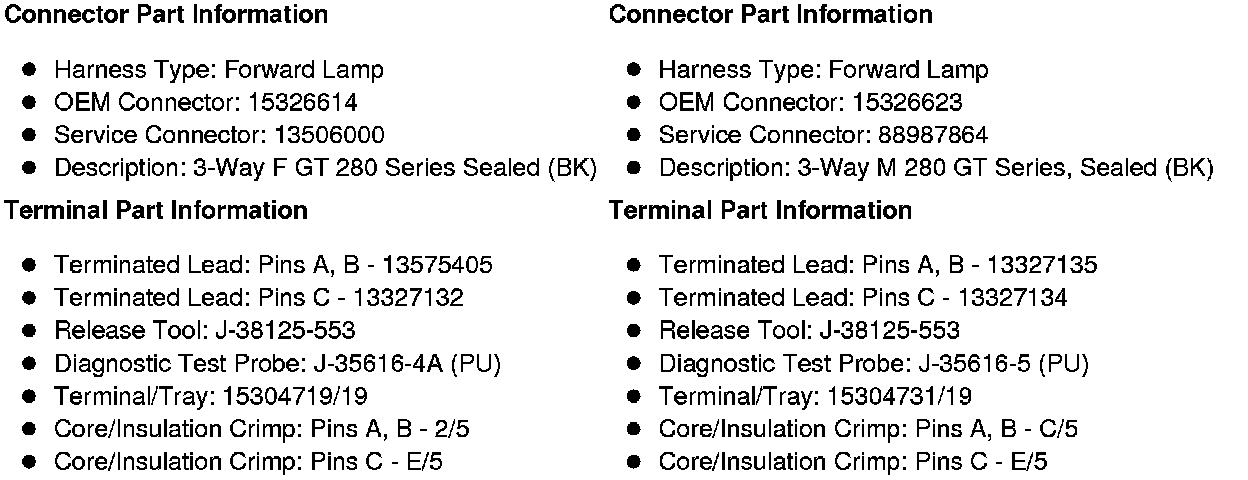

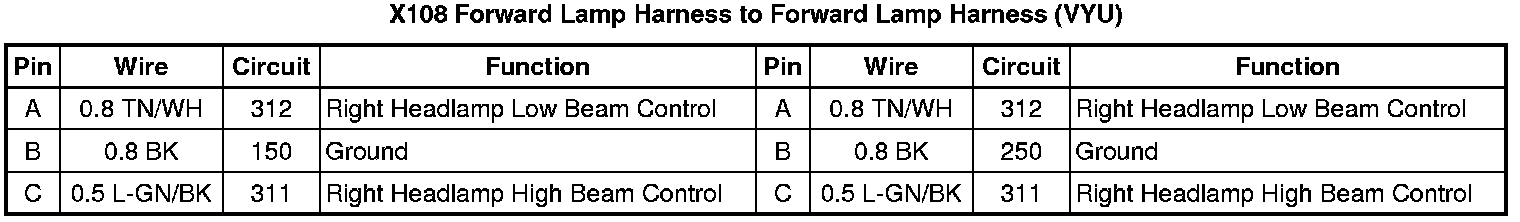

X108 Forward Lamp Harness to Forward Lamp Harness (VYU)
