X104 Forward Lamp Harness to Right Front Lamp Harness
X104 Forward Lamp Harness to Right Front Lamp Harness
Inline Harness Connector End Views

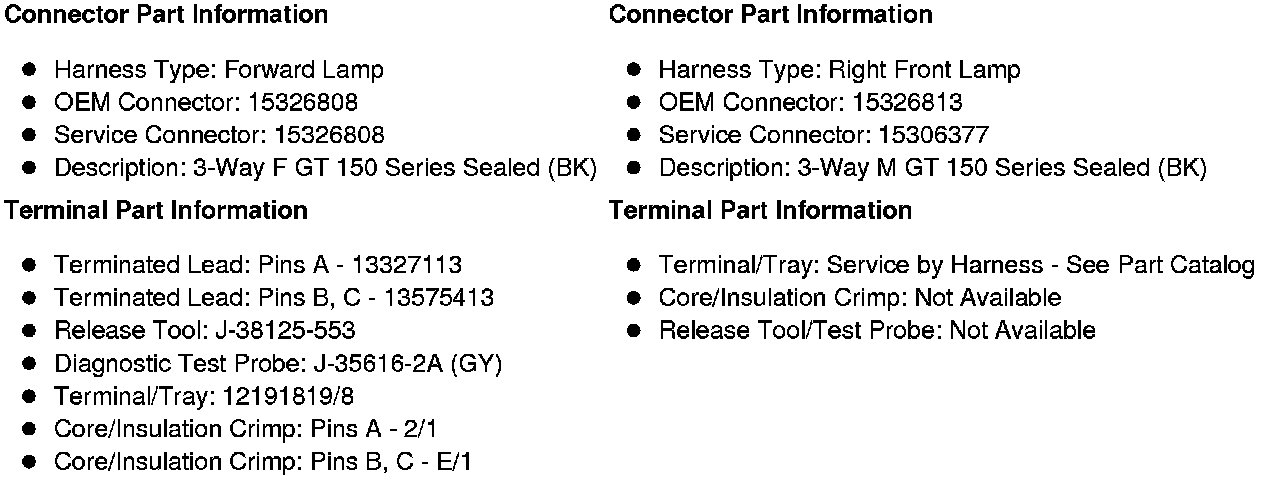

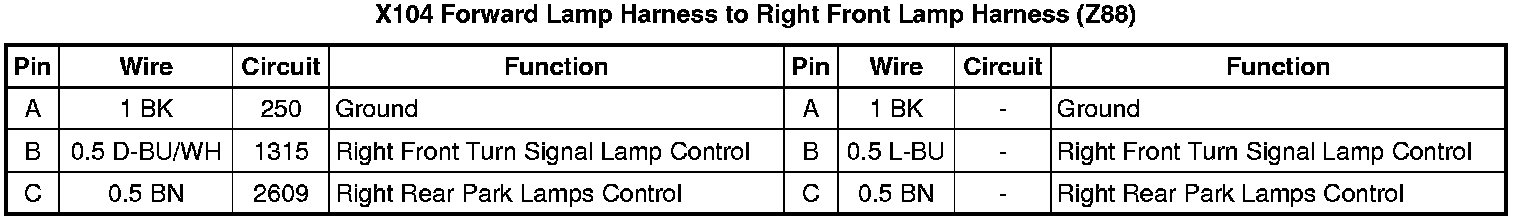

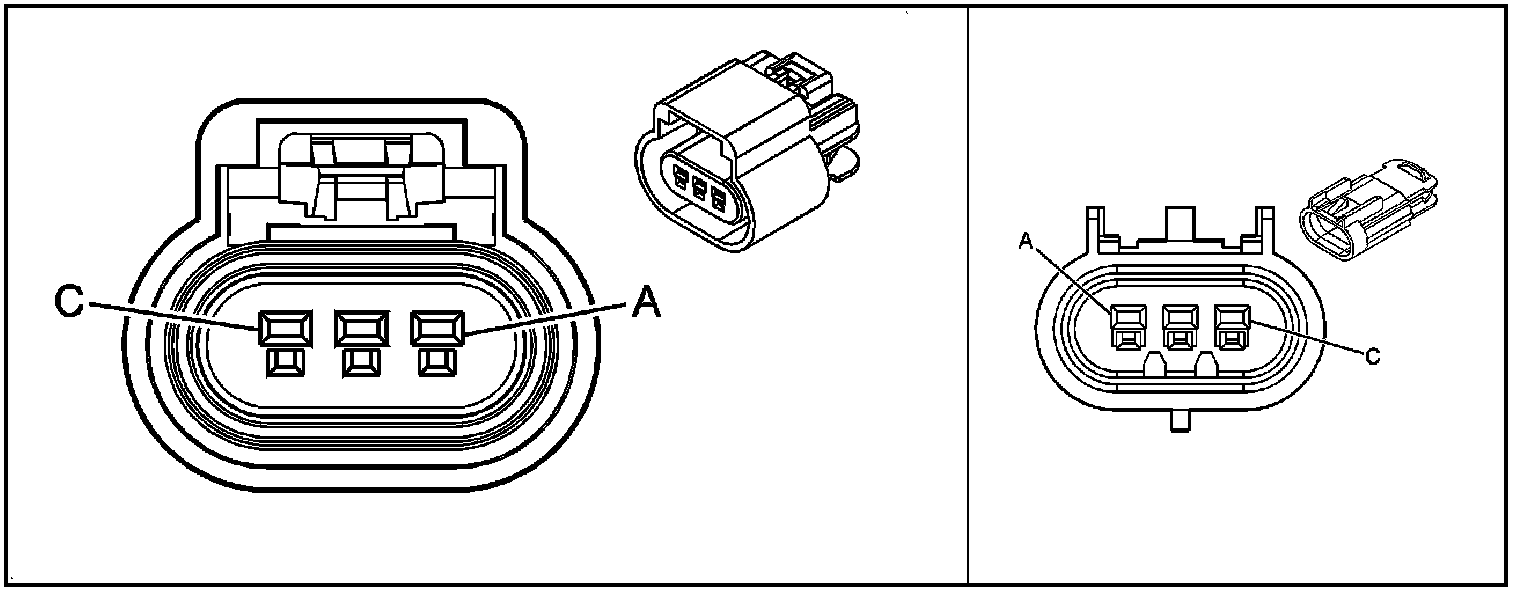

X104 Forward Lamp Harness to Right Front Lamp Harness (Z88)
