X101 Forward Lamp Harness to Left Front Lamp Harness
X101 Forward Lamp Harness to Left Front Lamp Harness

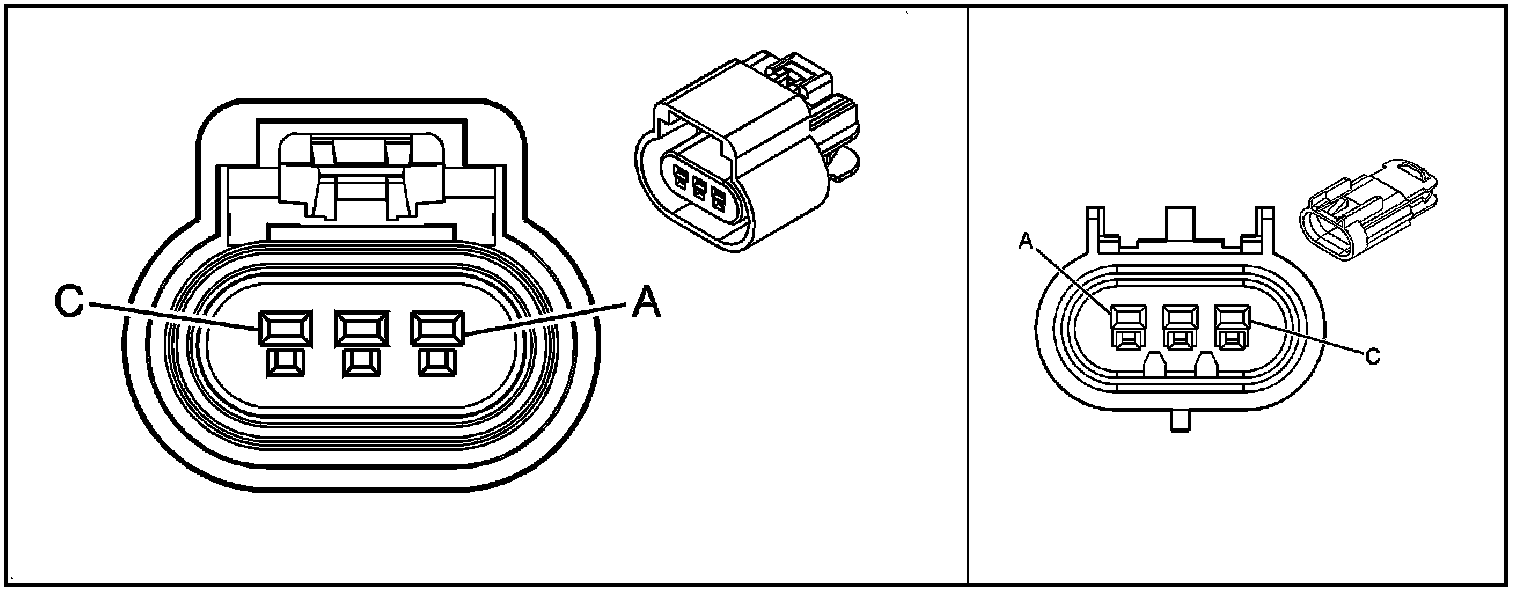

Inline Harness Connector End Views

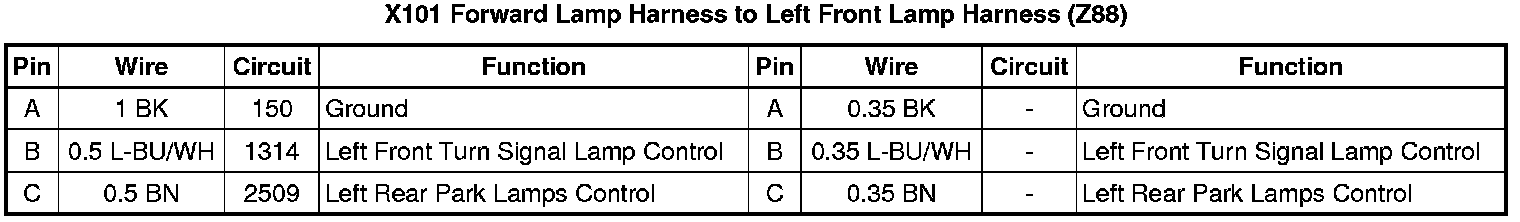

X101 Forward Lamp Harness to Left Front Lamp Harness (Z88)
