Speaker - Right Front (UQS or UQA)
Speaker - Right Front (UQS or UQA)
Component Connector End Views

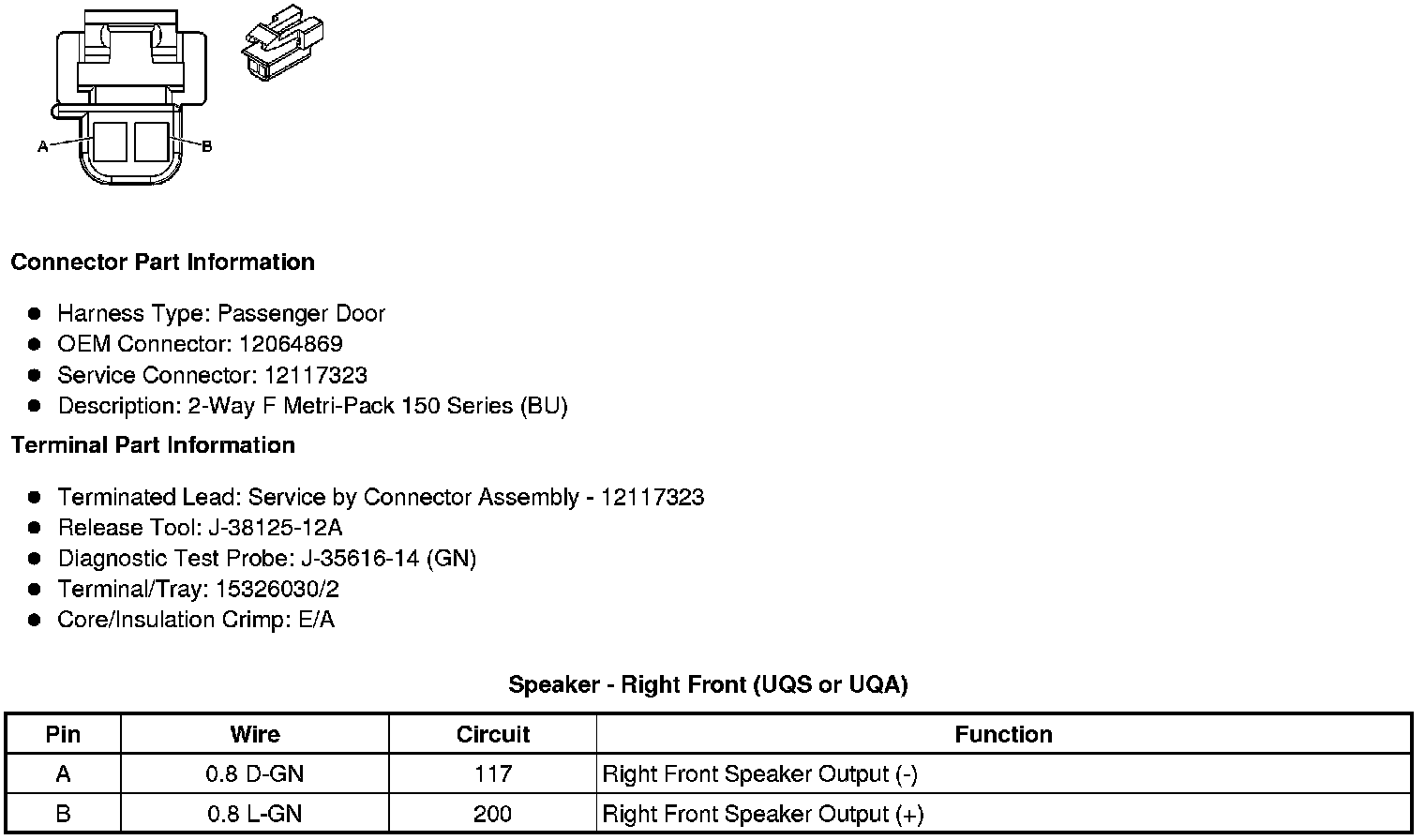

Speaker - Right Front (UQS or UQA)
