Speaker - Left Rear (UQ3)
Speaker - Left Rear (UQ3)
Component Connector End Views

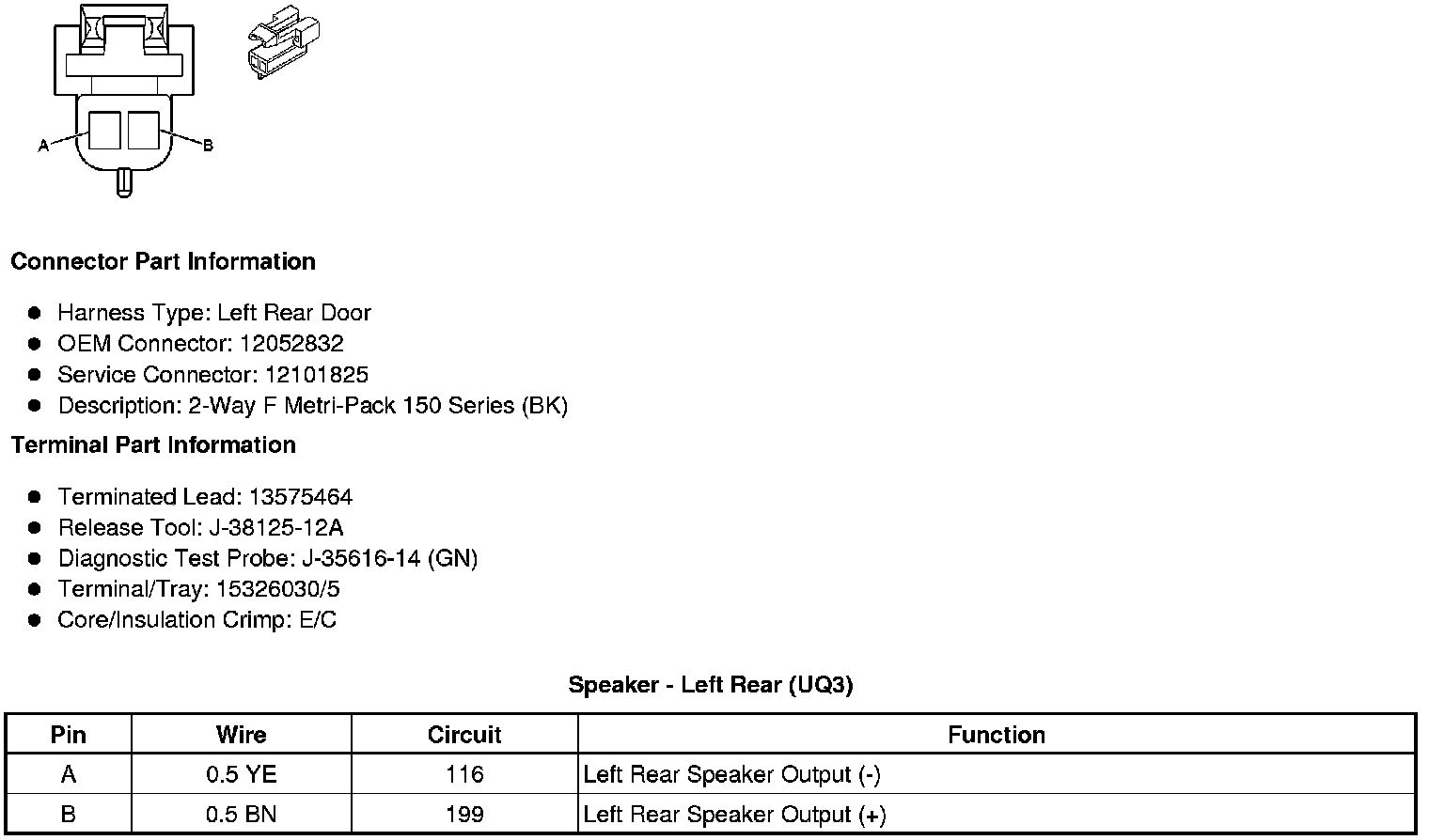

Speaker - Left Rear (UQ3)
