Side Marker Lamp - Right Rear (X88 without E52 or TB7)
Side Marker Lamp - Right Rear (X88 without E52 or TB7)
Component Connector End Views

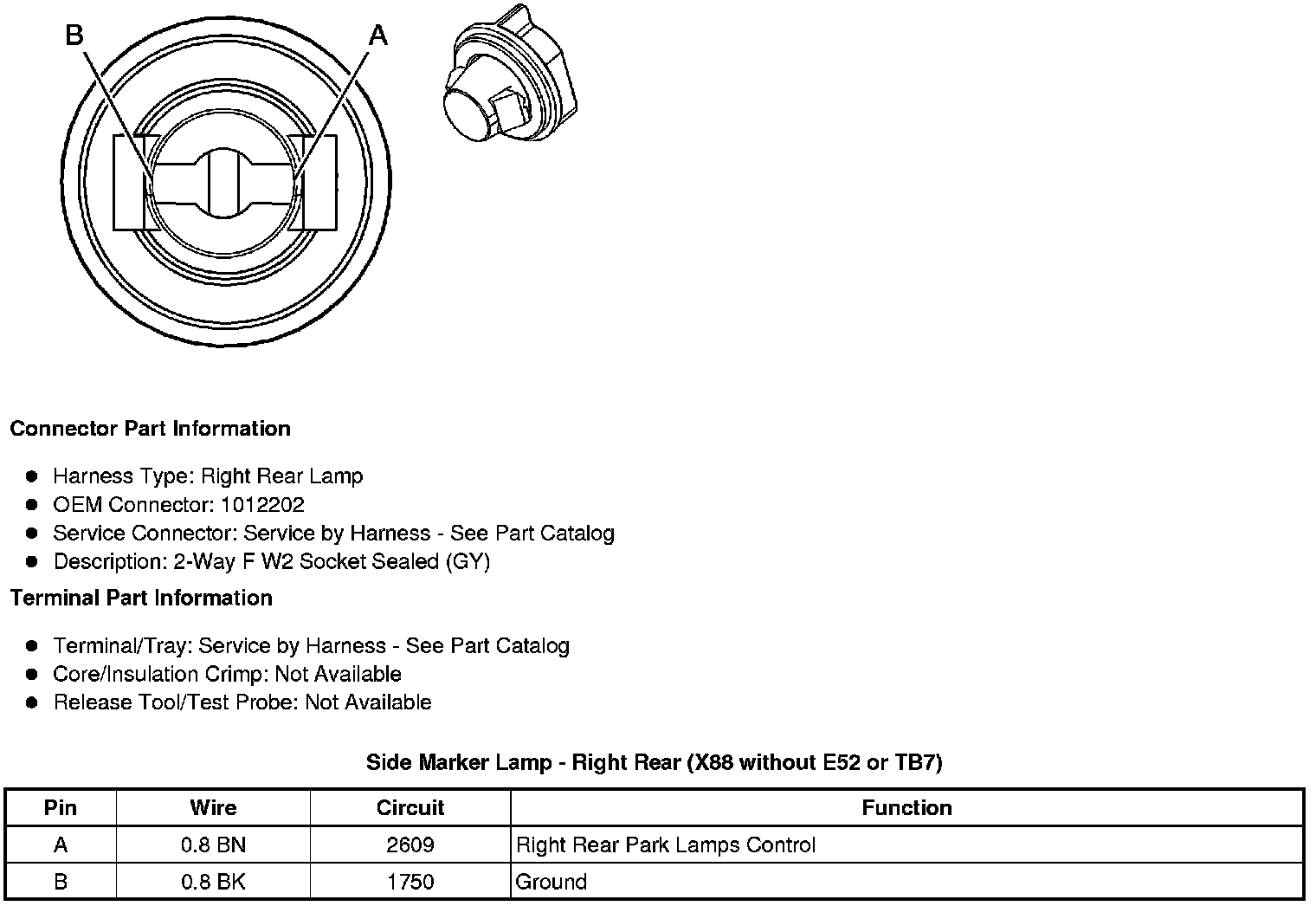

Side Marker Lamp - Right Rear (X88 without E52 or TB7)
