Rearview Camera (UVC or SPO Accessory Rear Vision Camera)
Rearview Camera (UVC or SPO Accessory Rear Vision Camera)

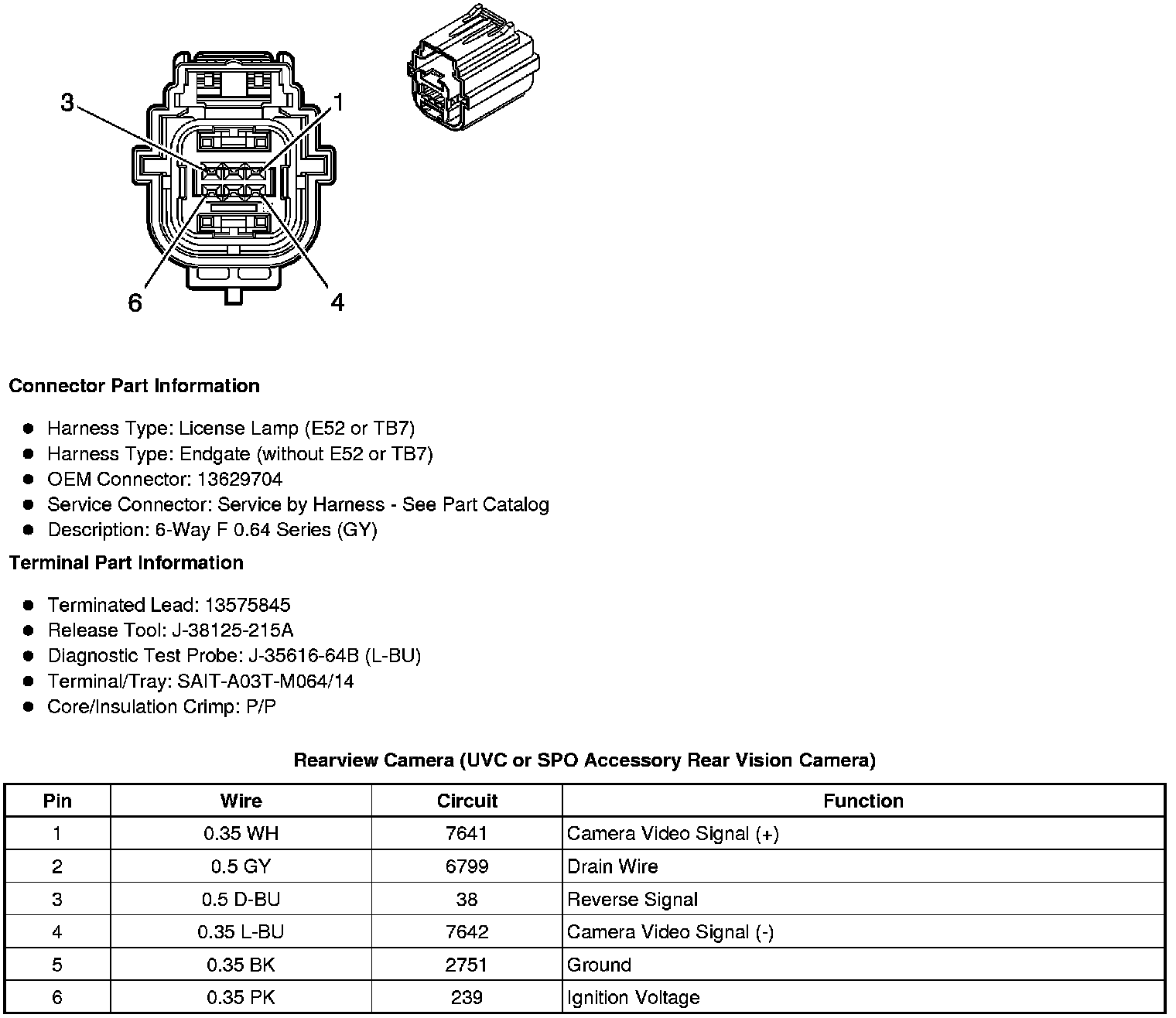

Component Connector End Views
Rearview Camera (UVC or SPO Accessory Rear Vision Camera)
