Home >> GMC >> 2011 >> Yukon 4WD V8-5.3L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Connector End Views By Name >> Radio Volume Compensator Interior Noise Microphone - Rear (Y91)

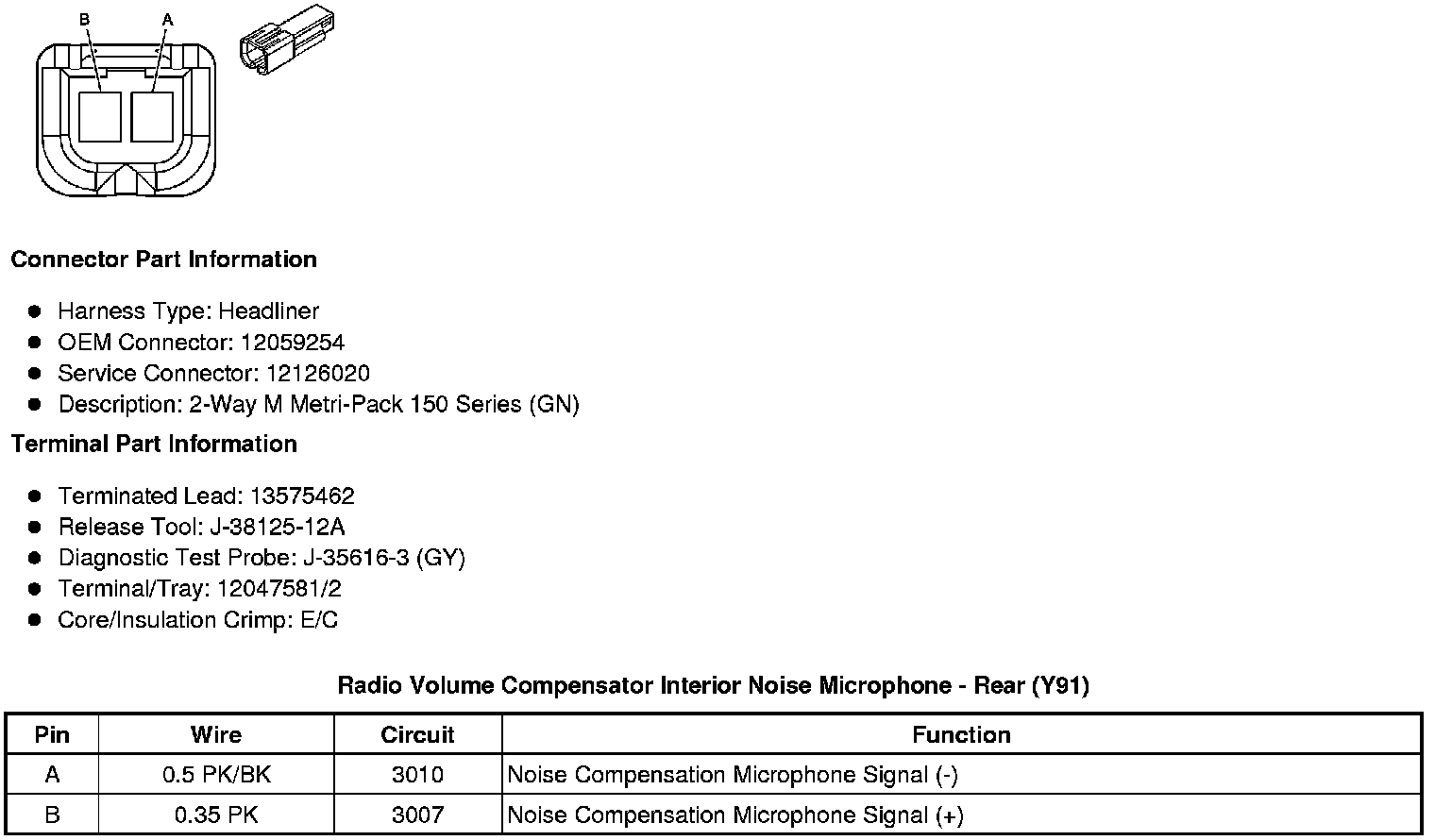

Radio Volume Compensator Interior Noise Microphone - Rear (Y91)




Component Connector End Views

Radio Volume Compensator Interior Noise Microphone - Rear (Y91)
