HVAC Control Module - Auxiliary (CJ3 with C69, without U42)
HVAC Control Module - Auxiliary (CJ3 with C69, without U42)
Component Connector End Views

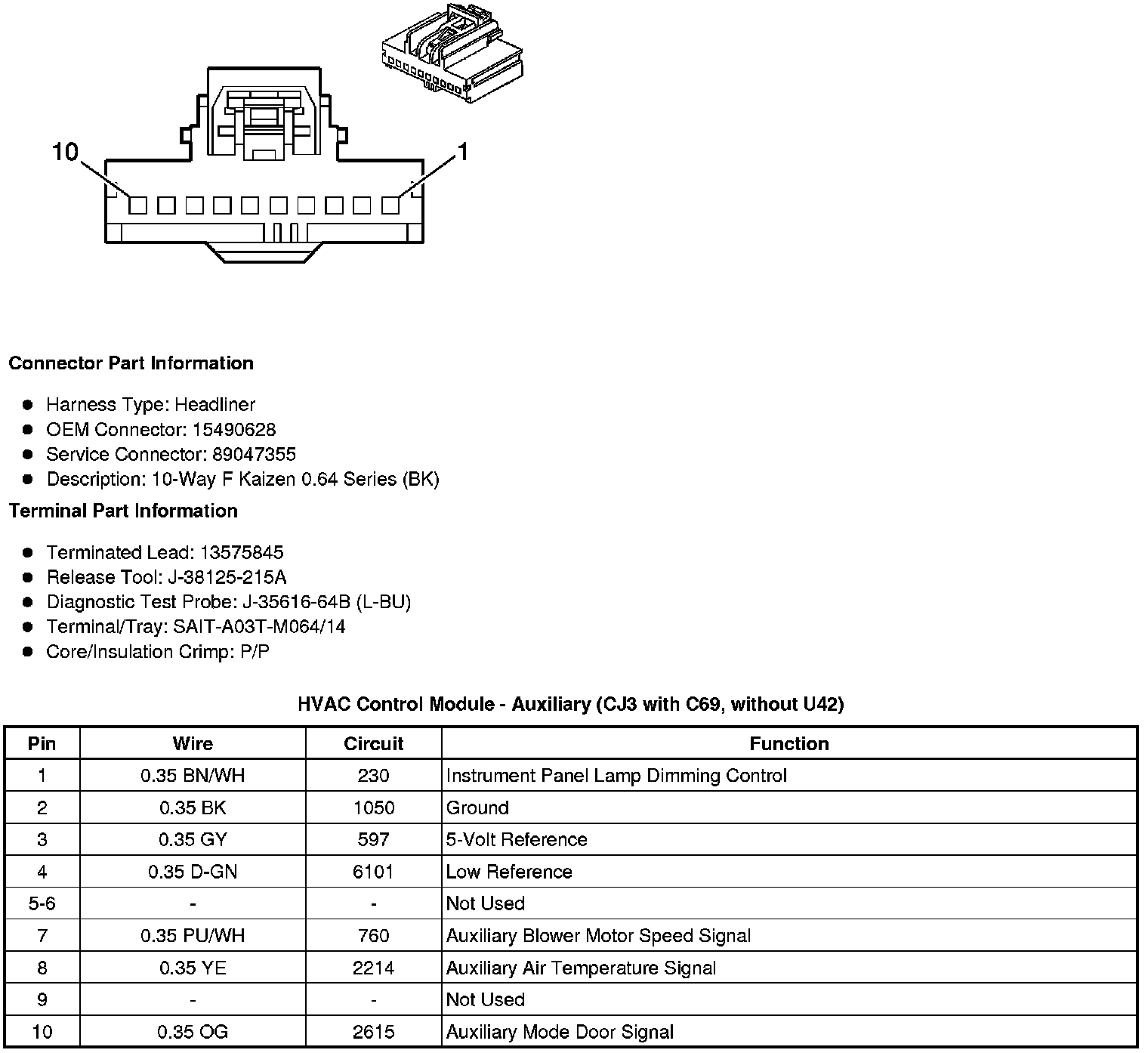

HVAC Control Module - Auxiliary (CJ3 with C69, without U42)
