Endgate Lock Actuator (without E52 or TB7)
Endgate Lock Actuator (without E52 or TB7)
Component Connector End Views

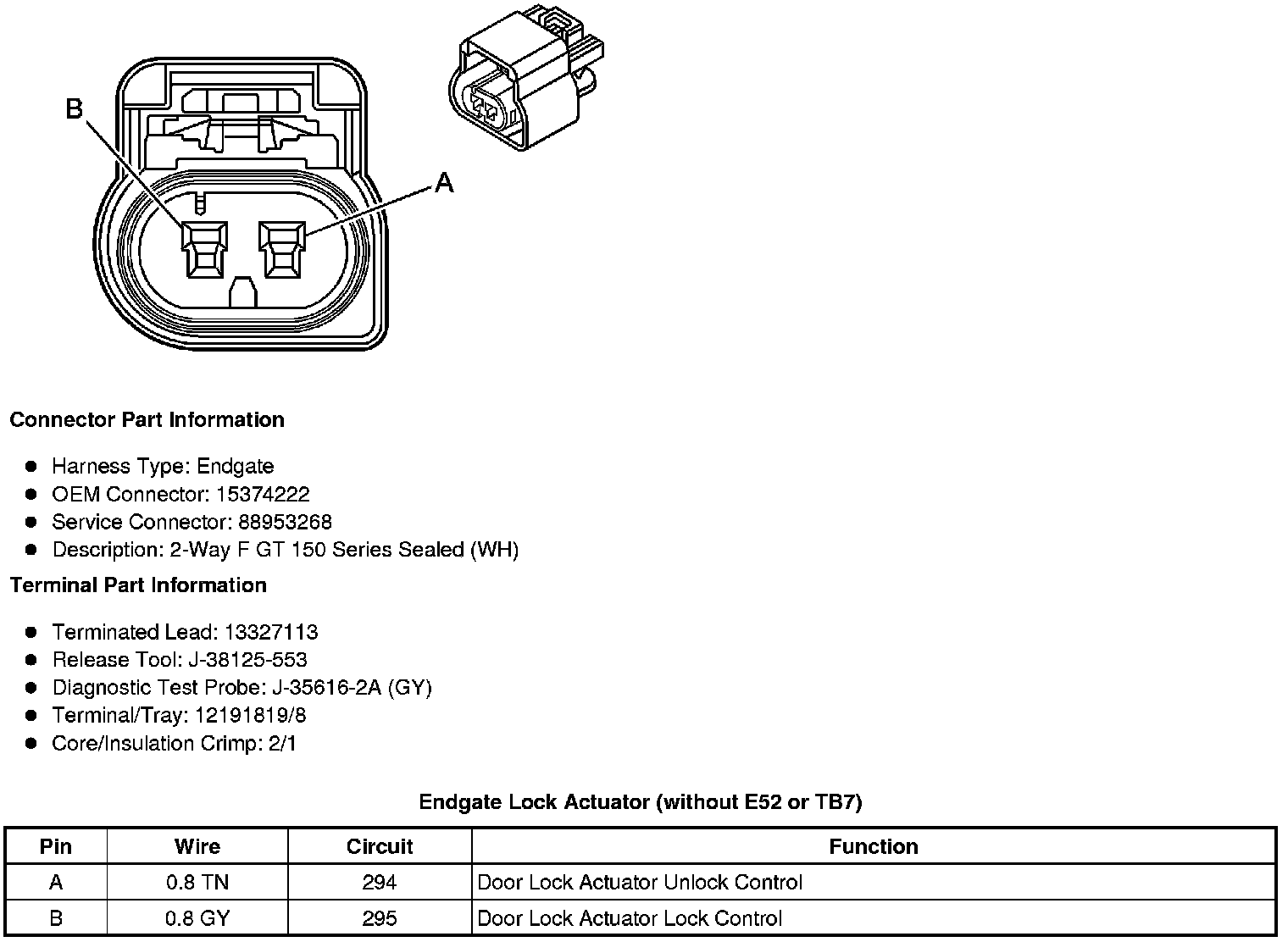

Endgate Lock Actuator (without E52 or TB7)
