Home >> GMC >> 2011 >> Yukon 4WD V8-5.3L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Connector End Views By Name >> Door Sill Plate Lamp - Passenger (SPO Accessory - Illuminated Sill Plate)

Door Sill Plate Lamp - Passenger (SPO Accessory - Illuminated Sill Plate)

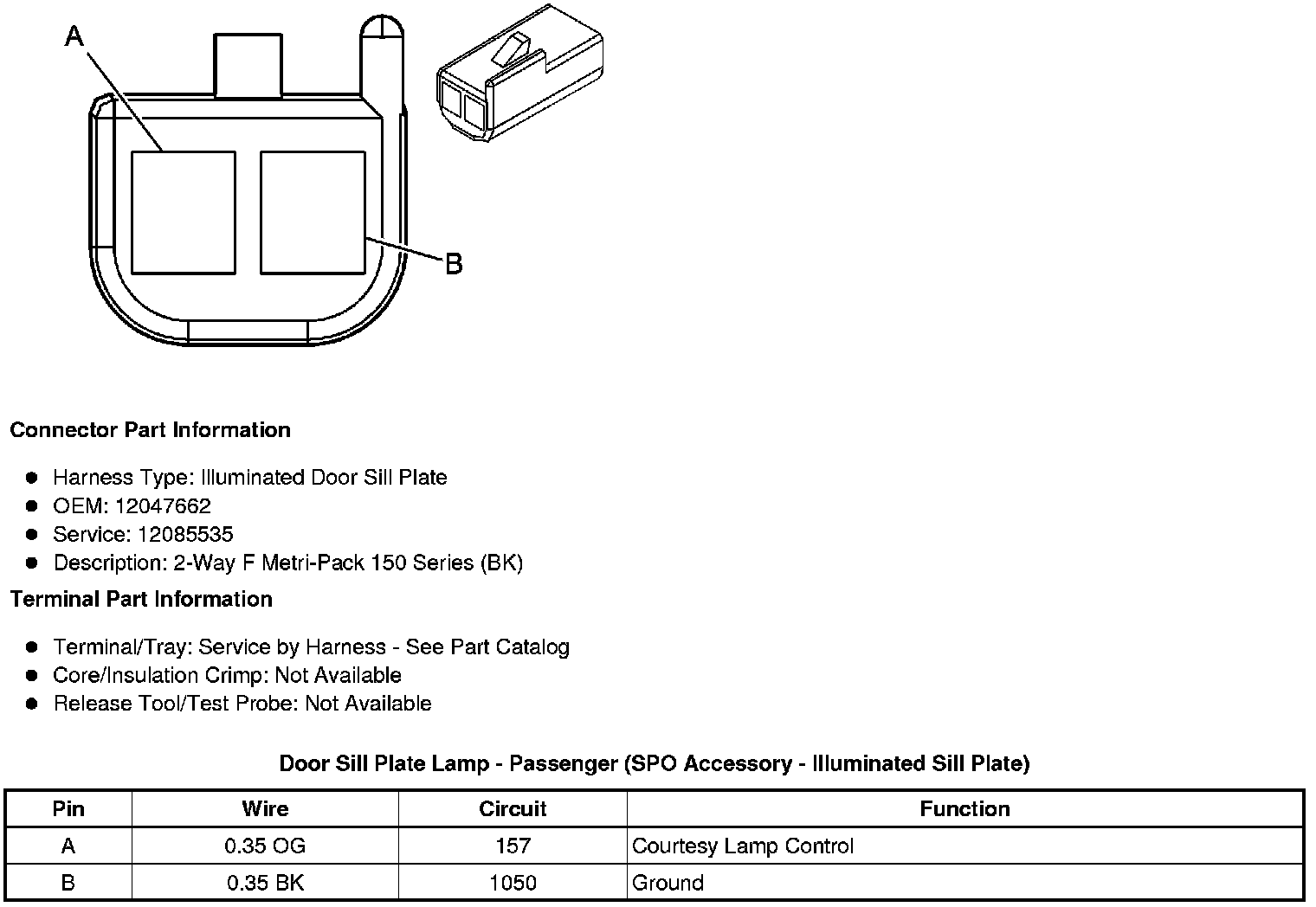

Component Connector End Views

Door Sill Plate Lamp - Passenger (SPO Accessory - Illuminated Sill Plate)
