Air Temperature Actuator - Auxiliary (C69)
Air Temperature Actuator - Auxiliary (C69)
Component Connector End Views

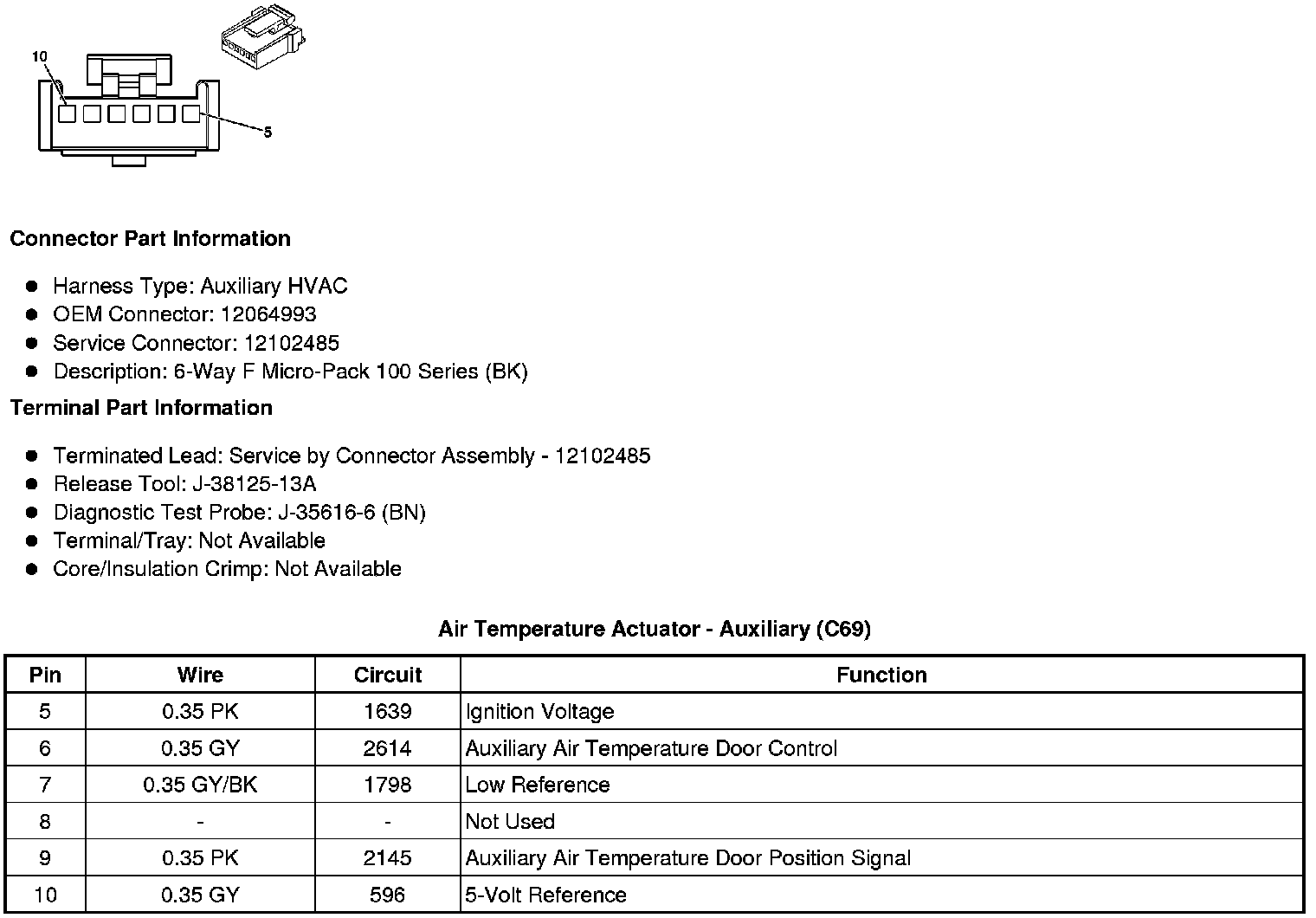

Air Temperature Actuator - Auxiliary (C69)
