Evaporative Emissions (EVAP) Canister Vent Solenoid Valve

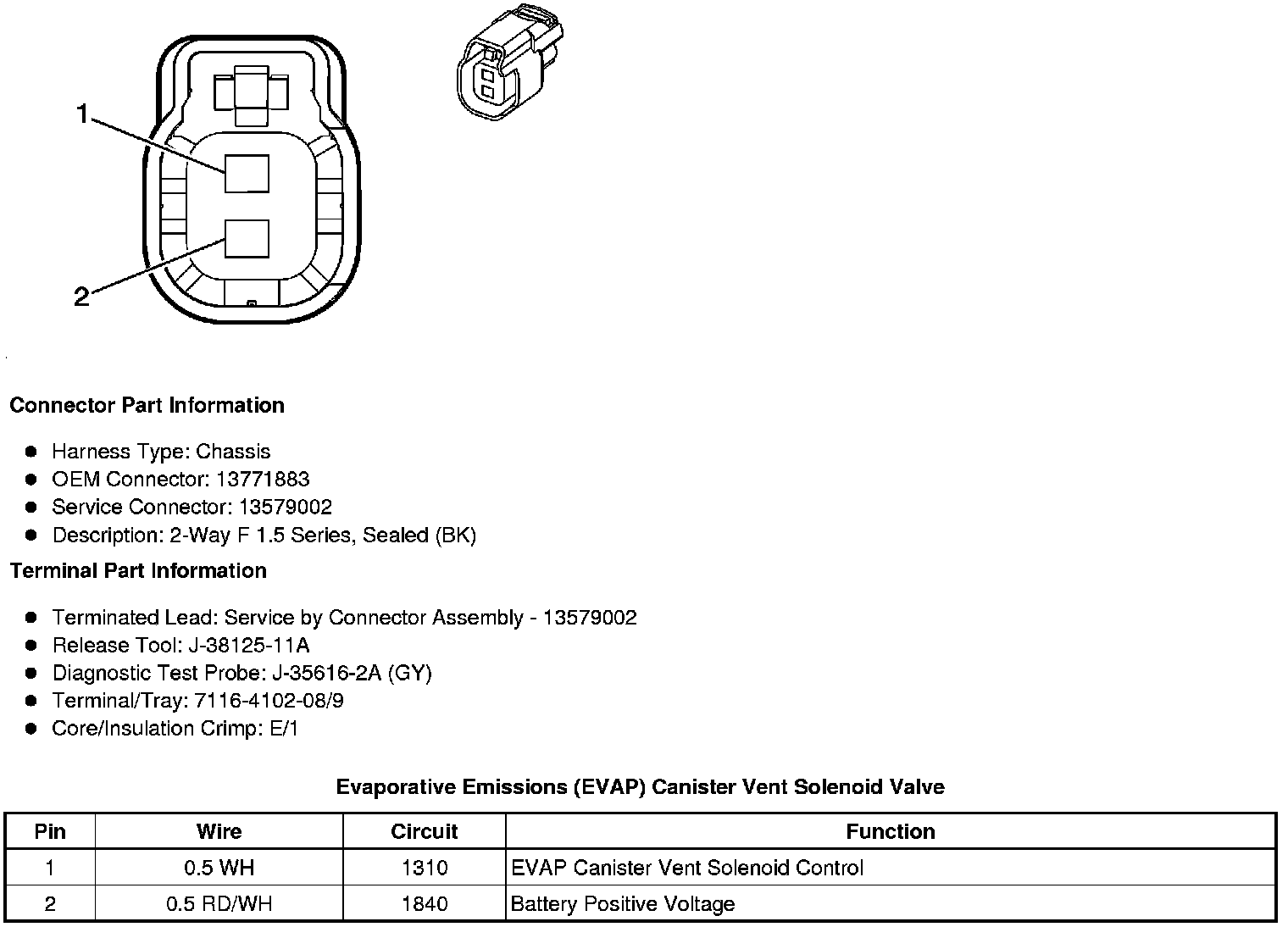

Component Connector End Views

Evaporative Emissions (EVAP) Canister Vent Solenoid Valve
