Cabin Temperature Sensor / Switch
>>
Air Temperature Sensor - Lower Right (CJ2)

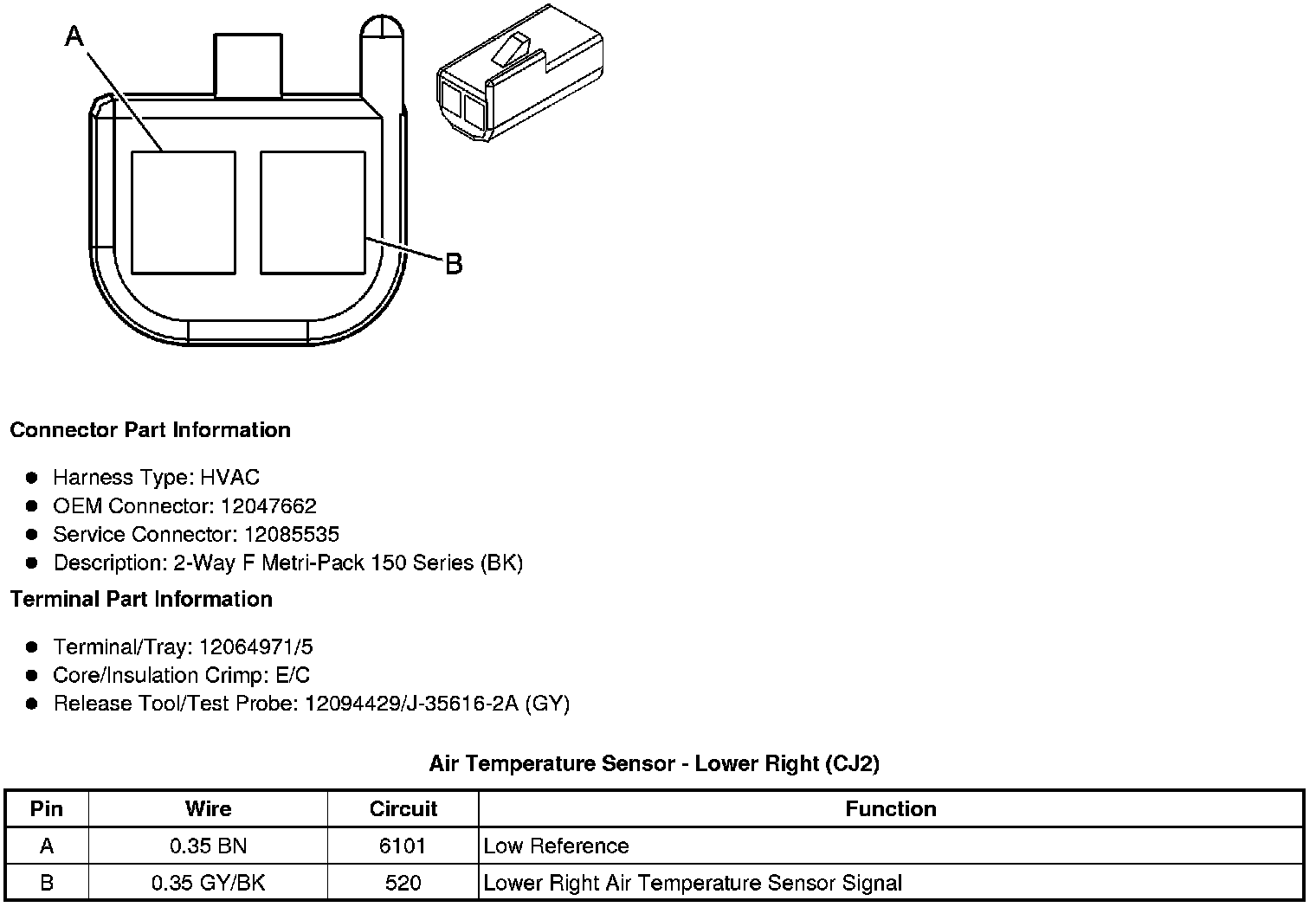

Air Temperature Sensor - Lower Right (CJ2)
Component Connector End Views
Air Temperature Sensor - Lower Right (CJ2)
