LEMON Manuals
: Even more car manuals for everyone
Home
>>
GMC
>>
2011
>>
Yukon 4WD V8-5.3L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Blower Motor
>>
Auxiliary Blower Motor
Auxiliary Blower Motor

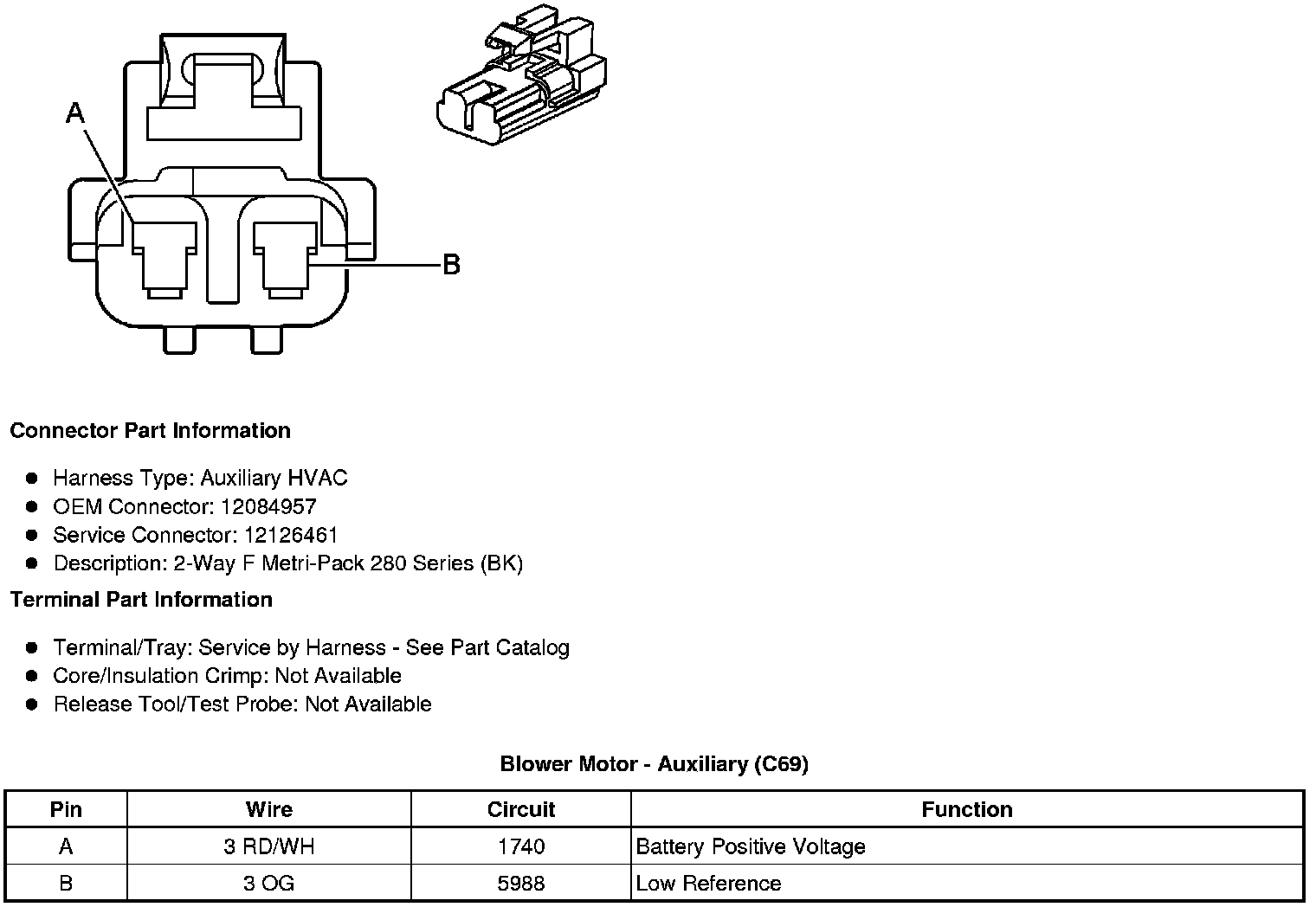

Component Connector End Views
Blower Motor - Auxiliary (C69)
