Ambient Temperature Sensor / Switch HVAC
>>
Ambient Air Temperature Sensor - HVAC
Ambient Air Temperature Sensor - HVAC

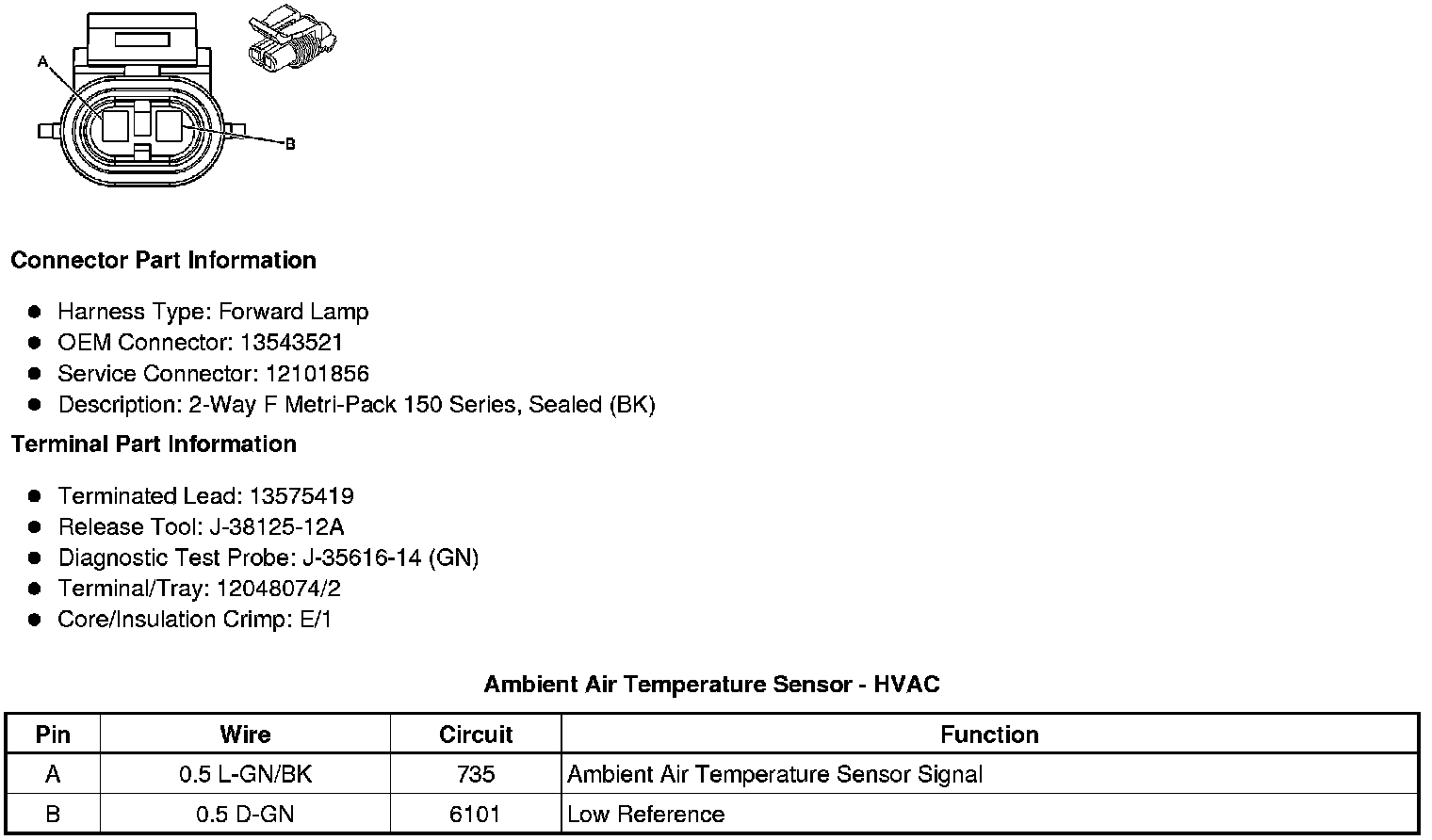

Component Connector End Views
Ambient Air Temperature Sensor - HVAC
