Home >> GMC >> 2011 >> Yukon 4WD V8-5.3L >> Repair and Diagnosis >> Body and Frame >> Frame >> Cross-Member >> Service and Repair >> Drivetrain and Front Suspension Frame Front Crossmember Replacement

Drivetrain and Front Suspension Frame Front Crossmember Replacement

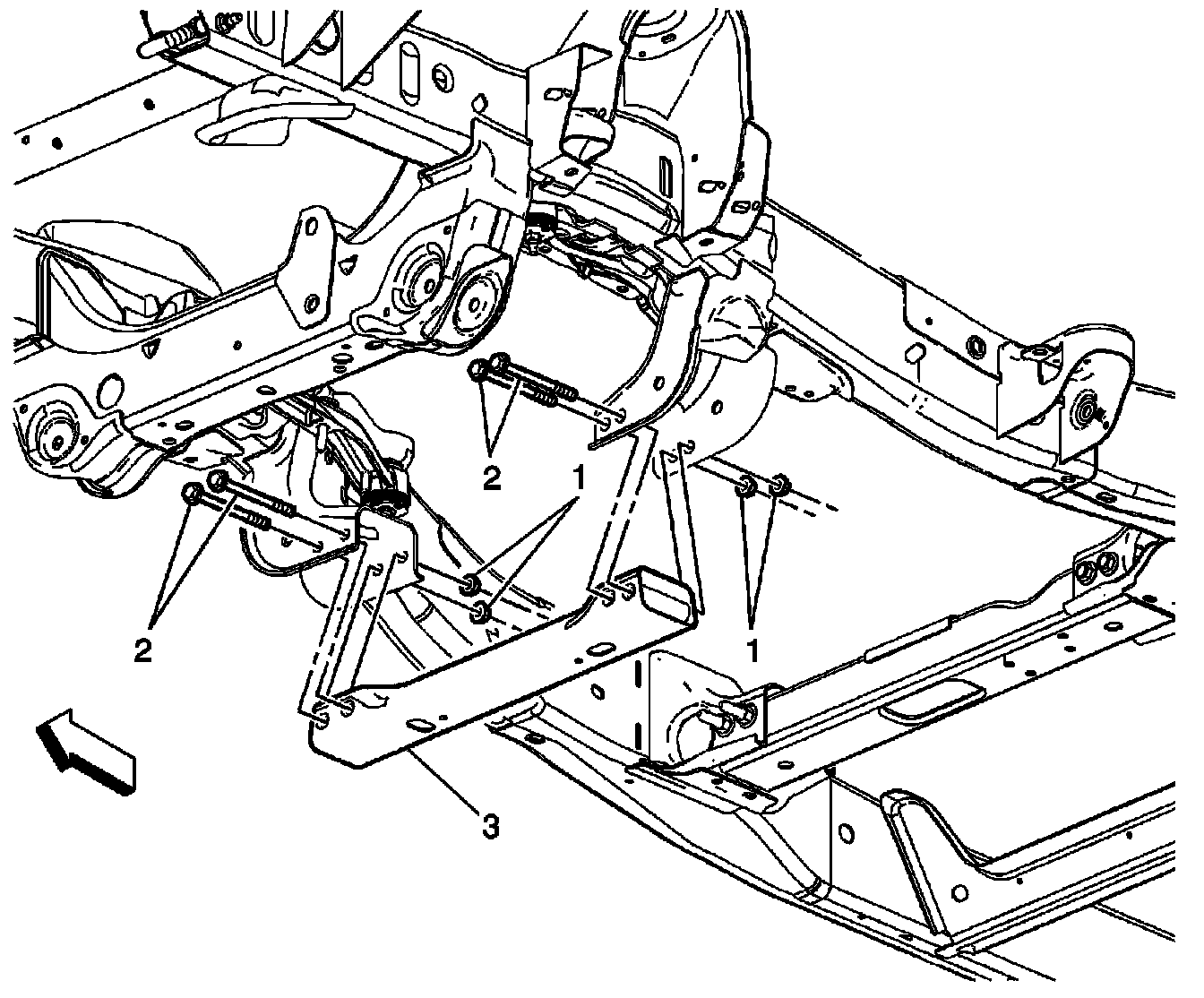

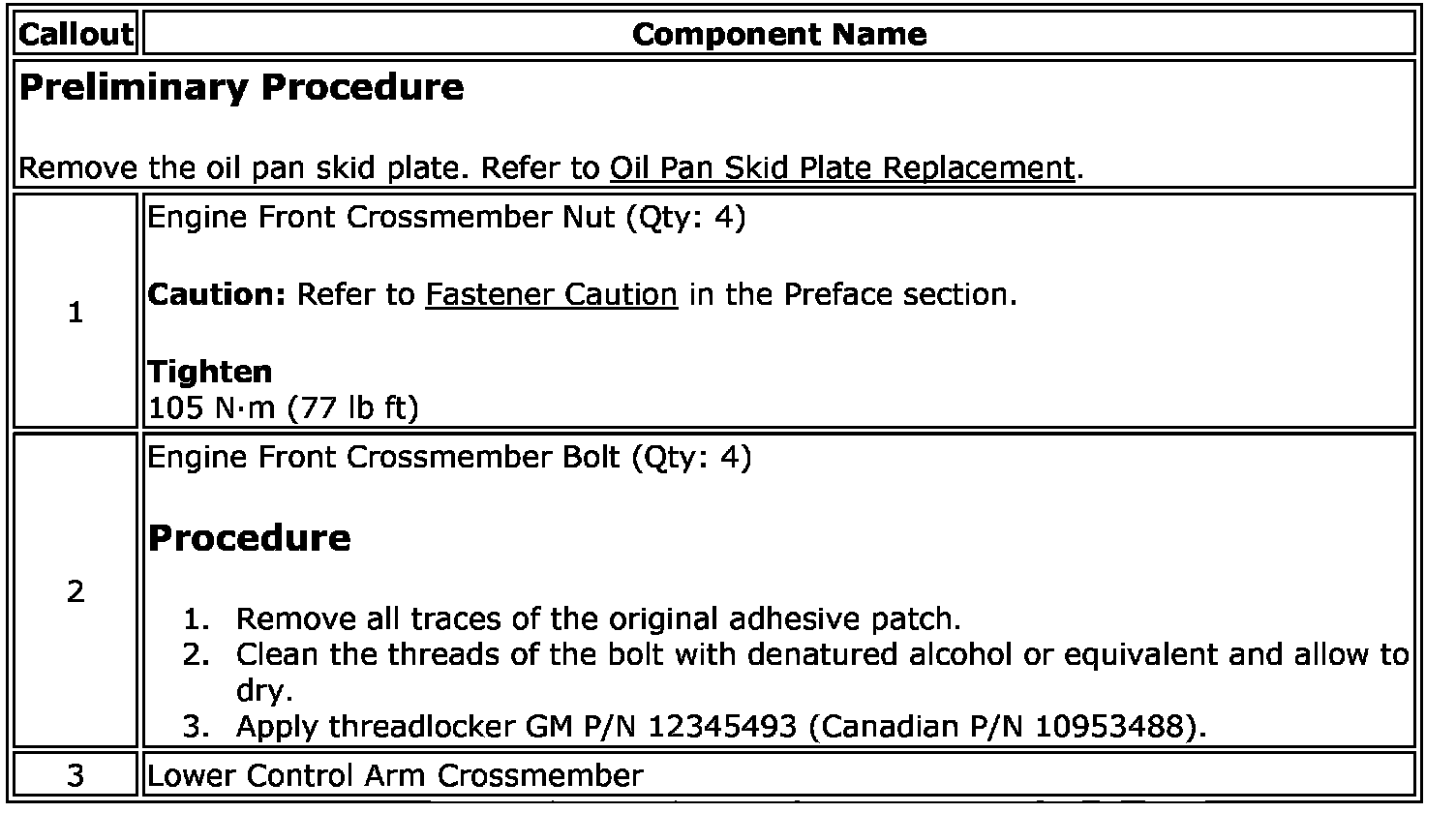

Drivetrain and Front Suspension Frame Front Crossmember Replacement (1500, 2500 LD)

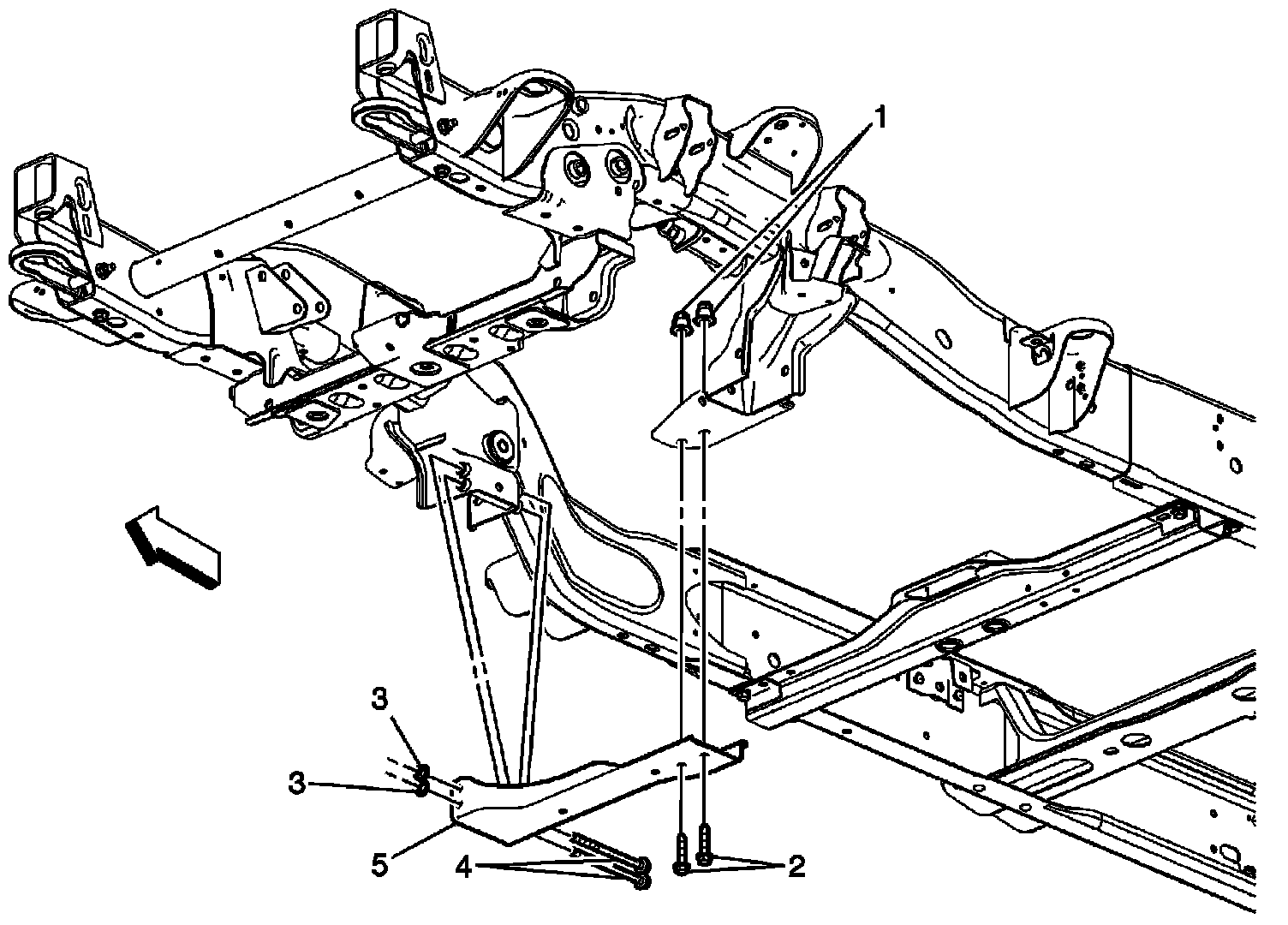

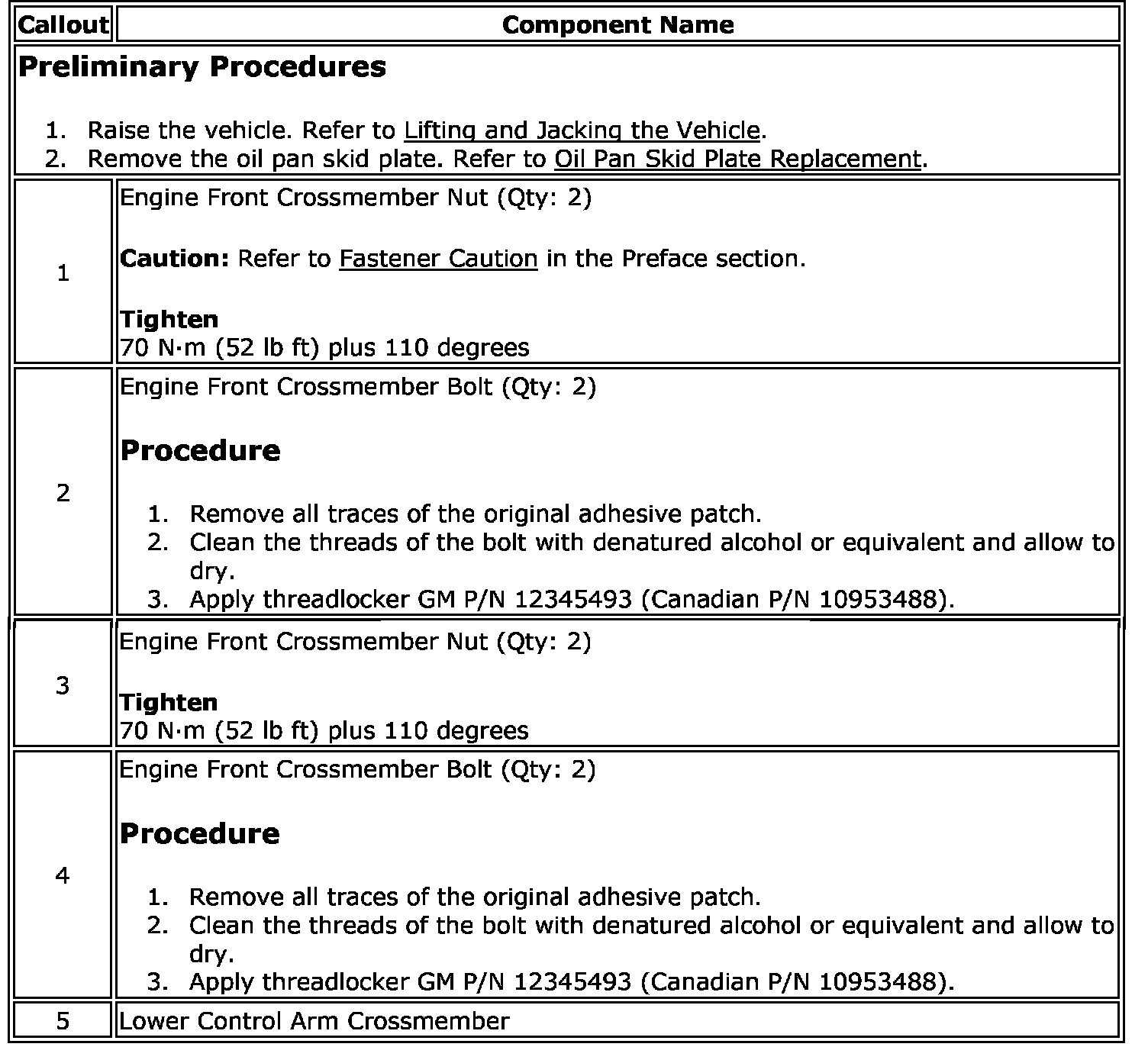

Drivetrain and Front Suspension Frame Front Crossmember Replacement (2WD 2500HD, 3500)
