Assist Step Motor Replacement (Power BRS)

Assist Step Motor Replacement (Power BRS)

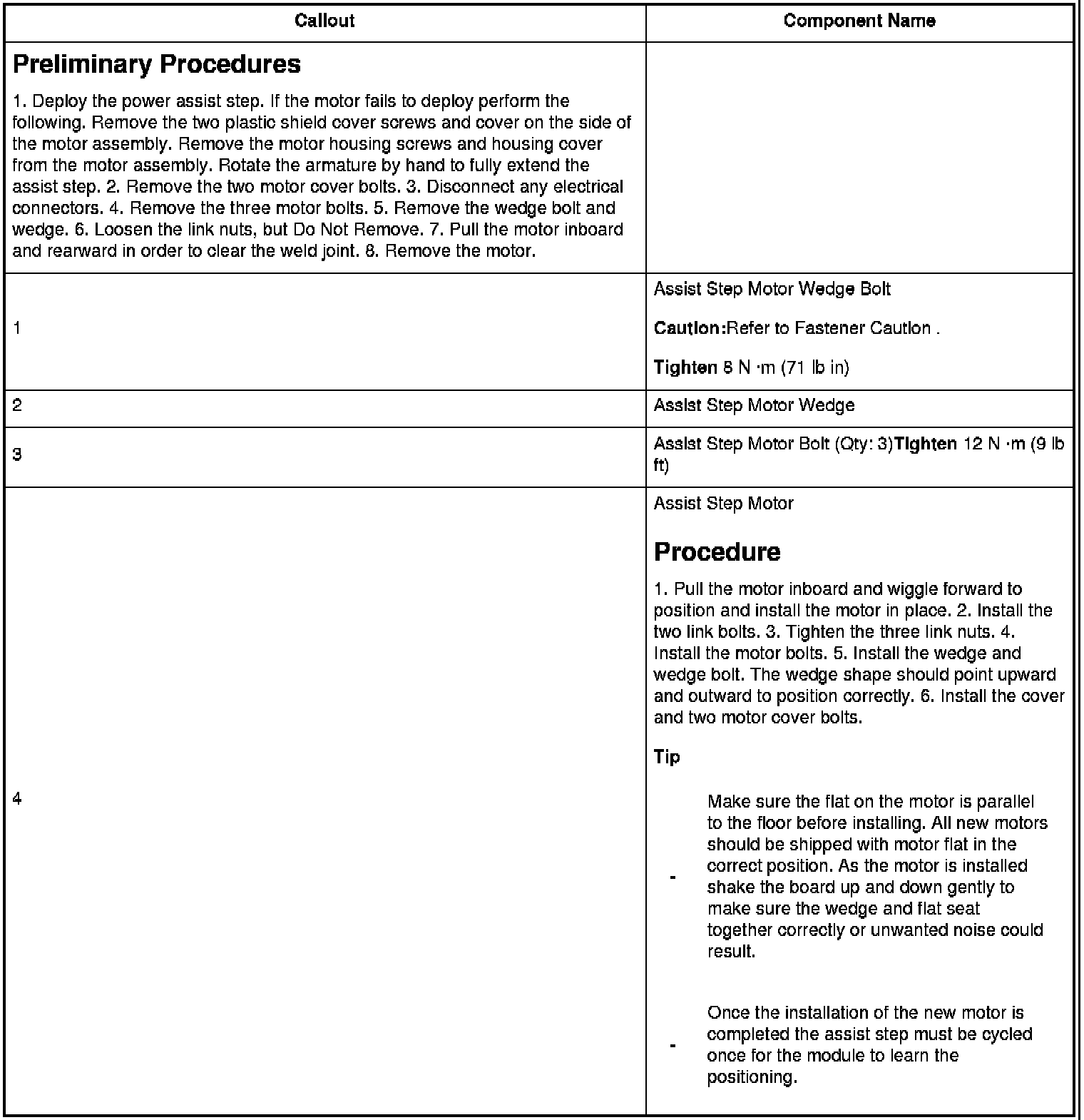

Preliminary Procedures

Caution:Refer to Fastener Caution.
TightenTighten
Procedure

Tip-Make sure the flat on the motor is parallel to the floor before installing. All new motors should be shipped with motor flat in the correct position. As the motor is installed shake the board up and down gently to make sure the wedge and flat seat together correctly or unwanted noise could result.-Once the installation of the new motor is completed the assist step must be cycled once for the module to learn the positioning.
