Home >> GMC >> 2011 >> Yukon 4WD V8-5.3L >> Repair and Diagnosis >> Accessories and Optional Equipment >> Garage Door Opener Transmitter >> Diagrams

Garage Door Opener Transmitter: Diagrams

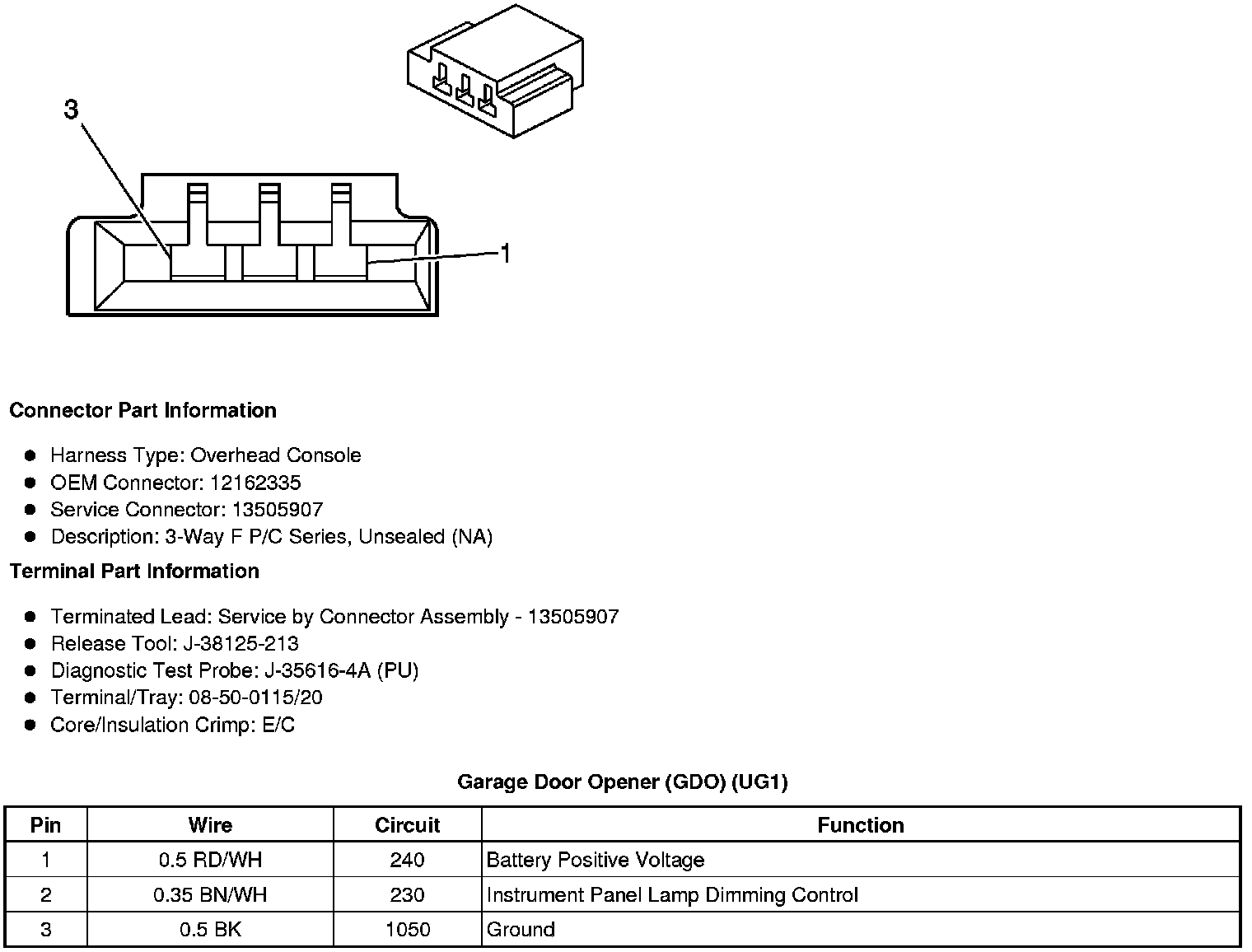

Component Connector End Views

Garage Door Opener (GDO) (UG1)
