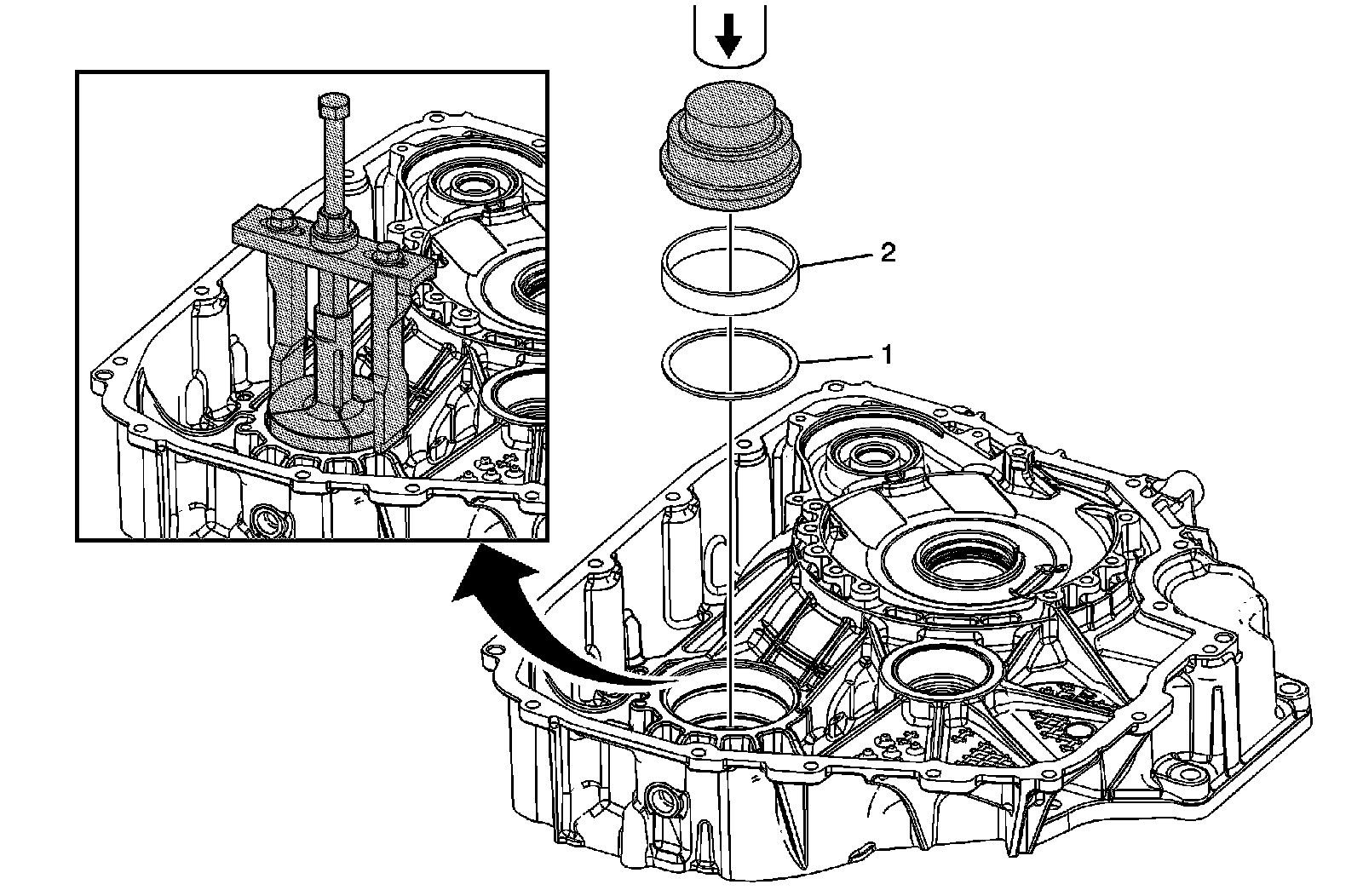

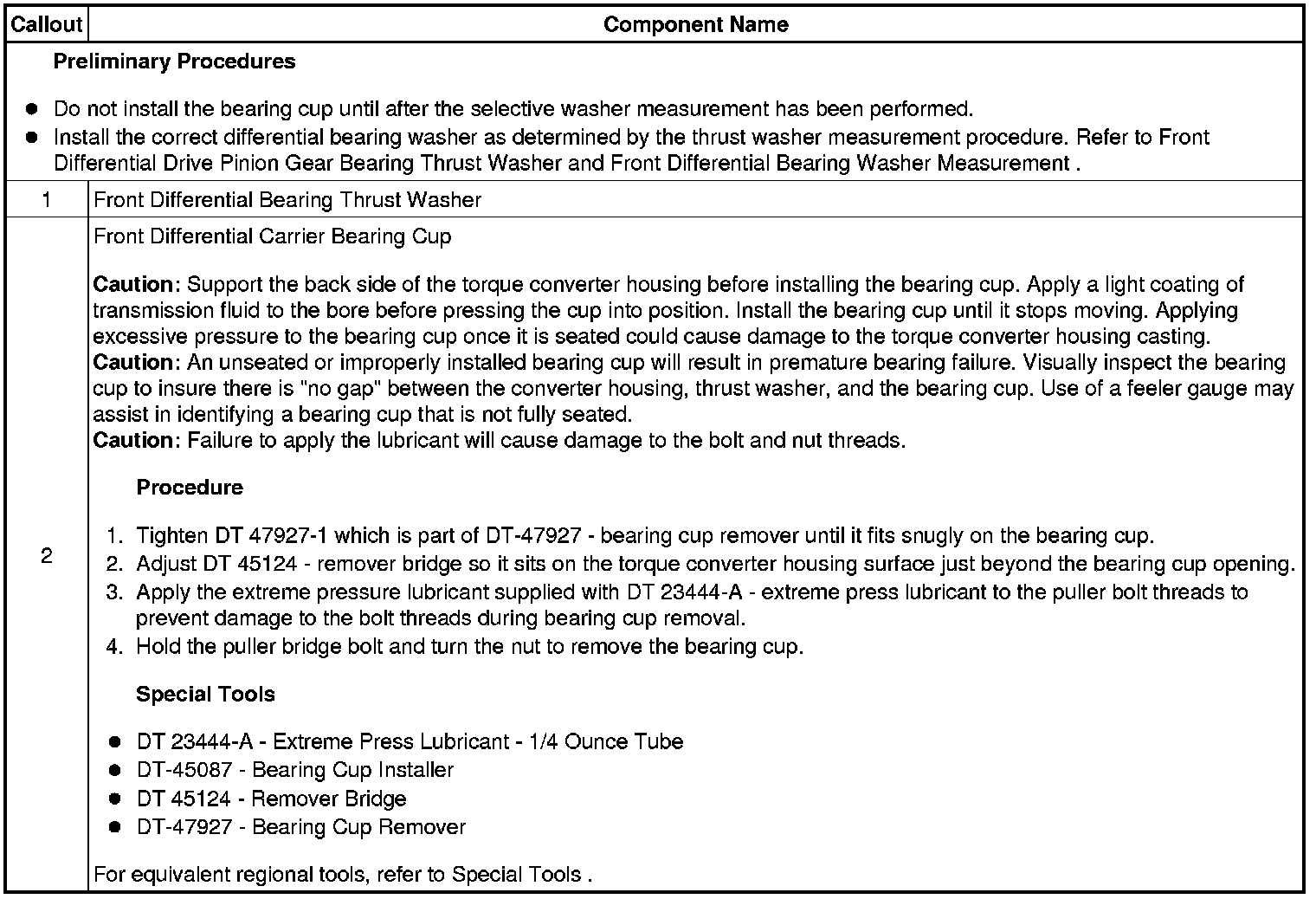

19. Front Differential Carrier Bearing Cup and Washer Replacement - Torque Converter Housing Side




Front Differential Carrier Bearing Cup and Washer Replacement - Torque Converter Housing Side
