Discharge Air Temperature Sensor / Switch, HVAC




Component Connector End Views

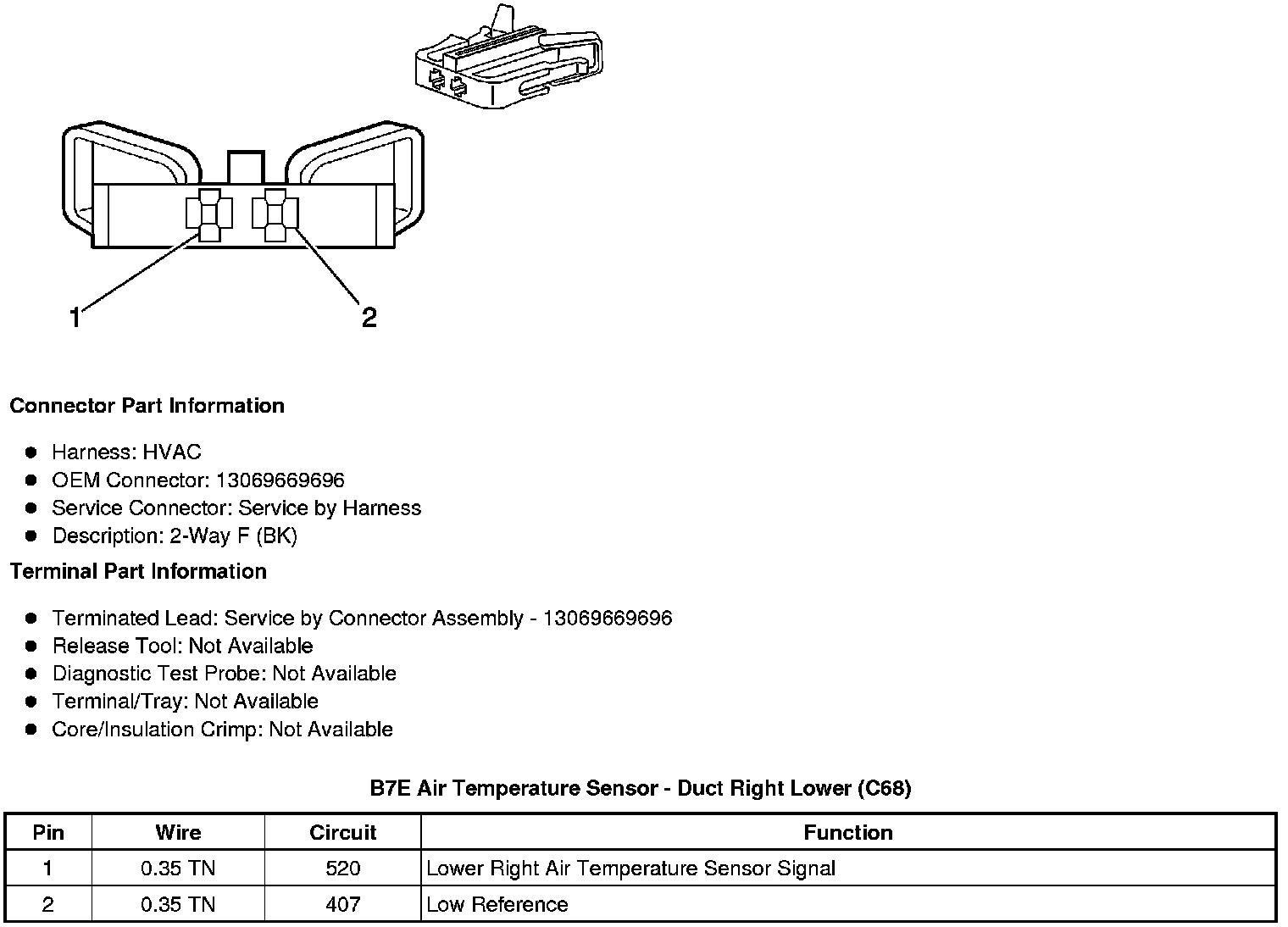

B7E Air Temperature Sensor - Duct Right Lower (C68)





B7J Air Temperature Sensor - Duct Right Upper (C68)
