16. Manual Shift Detent Lever with Shaft Position Switch Assembly and Park Pawl Actuator Installation




Manual Shift Detent Lever with Shaft Position Switch Assembly and Park Pawl Actuator Installation

Park Pawl Actuator Guide Installation

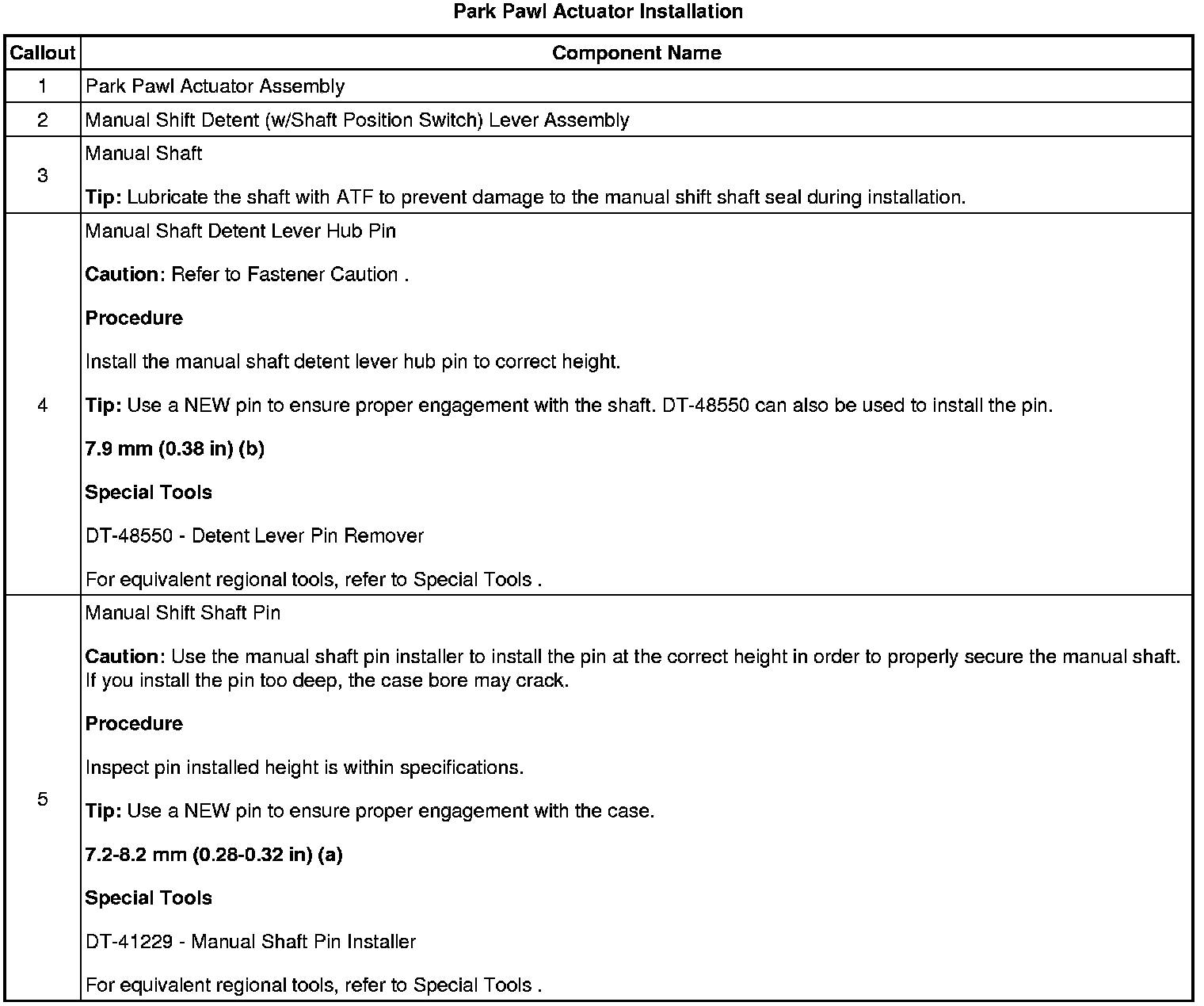

Park Pawl Actuator Installation
