Fuse Block - Underhood

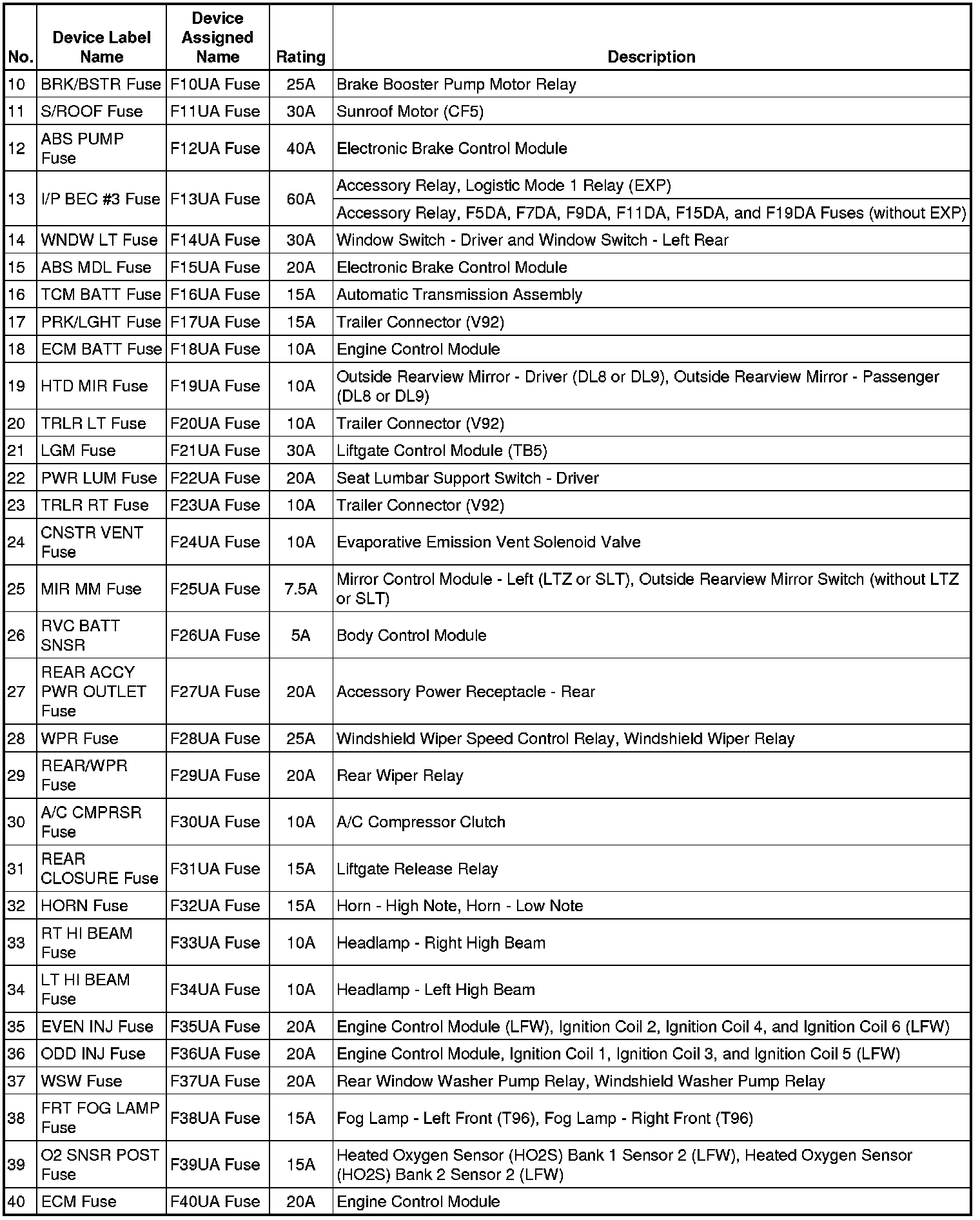

Electrical Center Identification Views

X50A Fuse Block - Underhood, Label

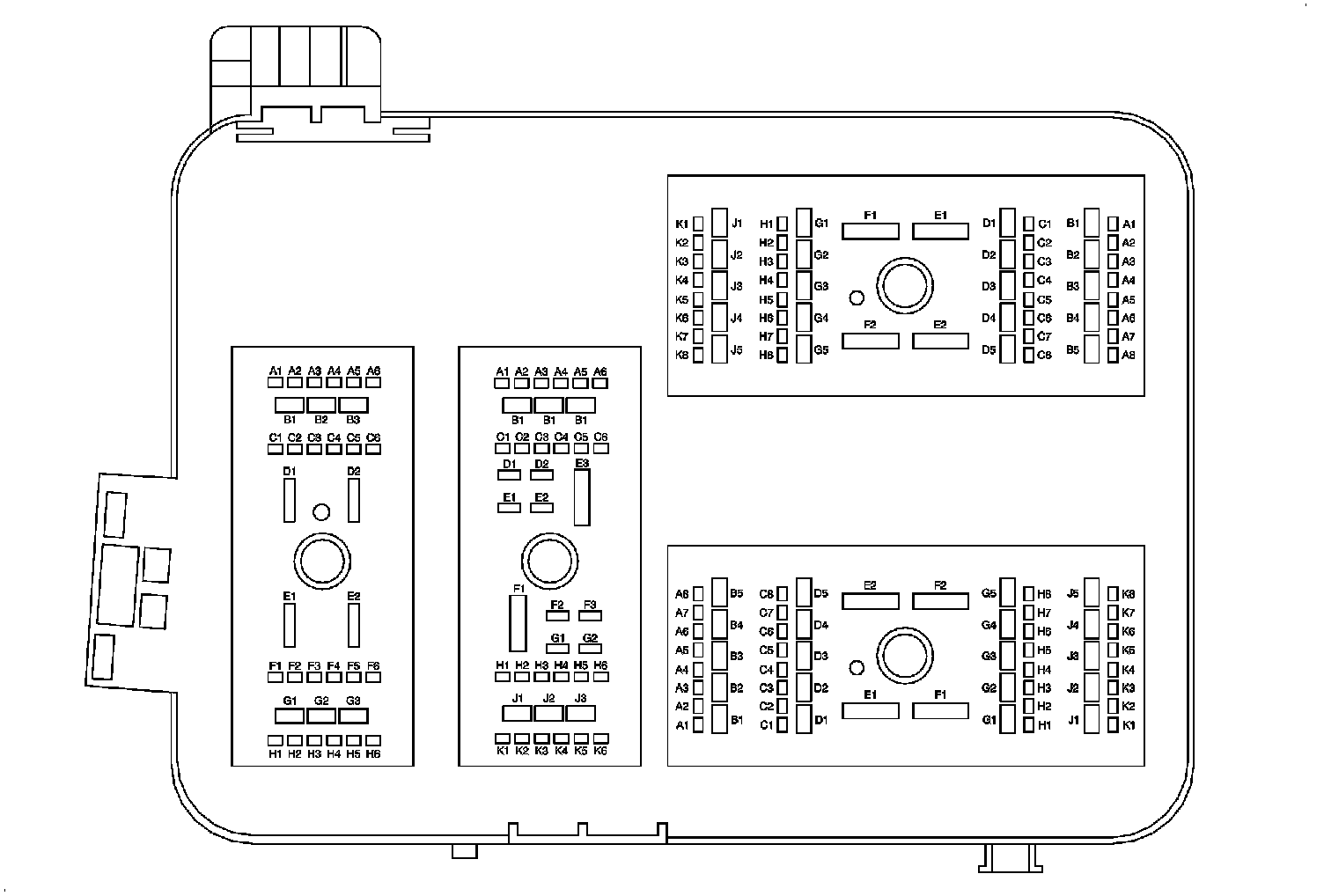

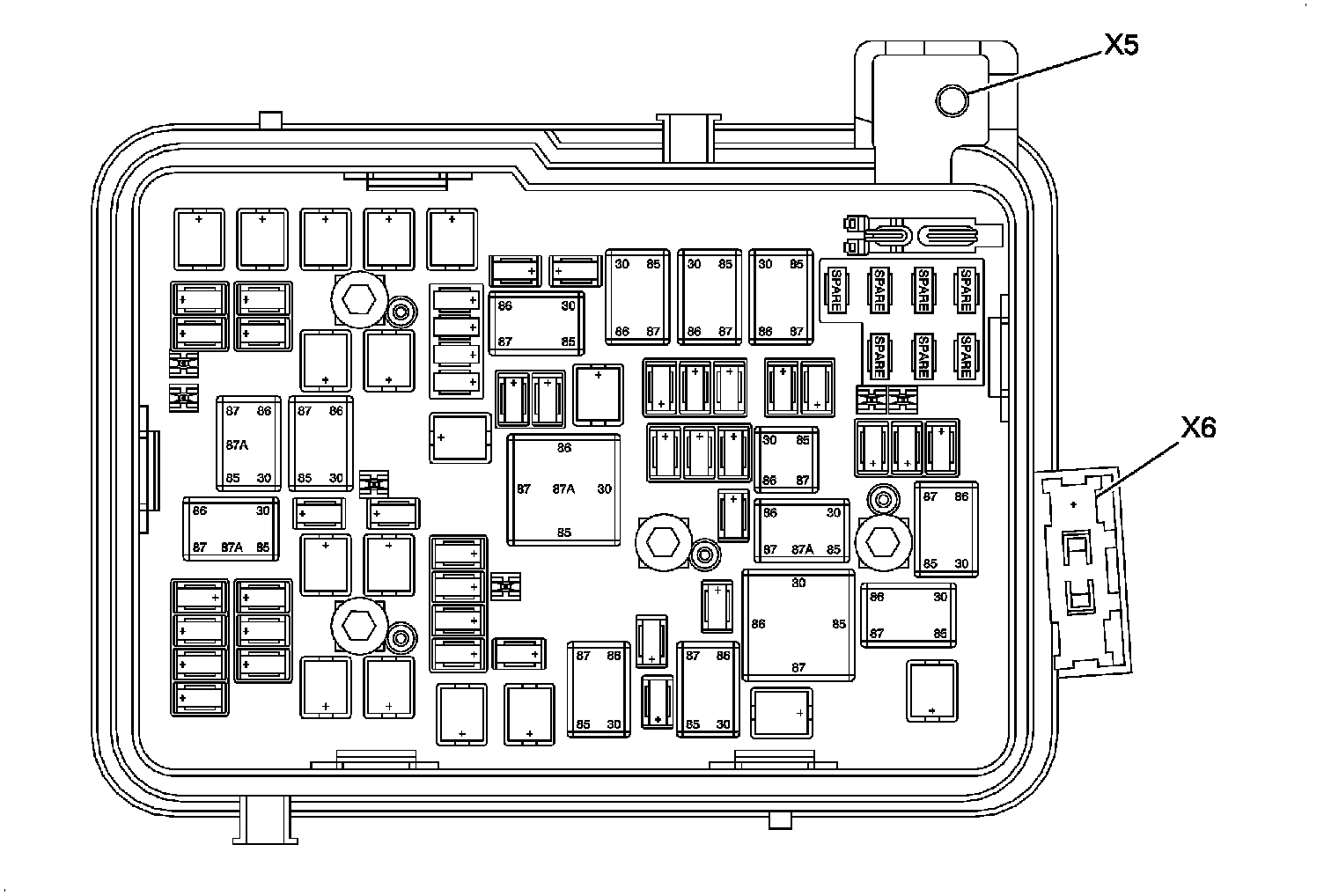

X50A Fuse Block - Underhood, Top View





X50A Fuse Block - Underhood, Bottom View

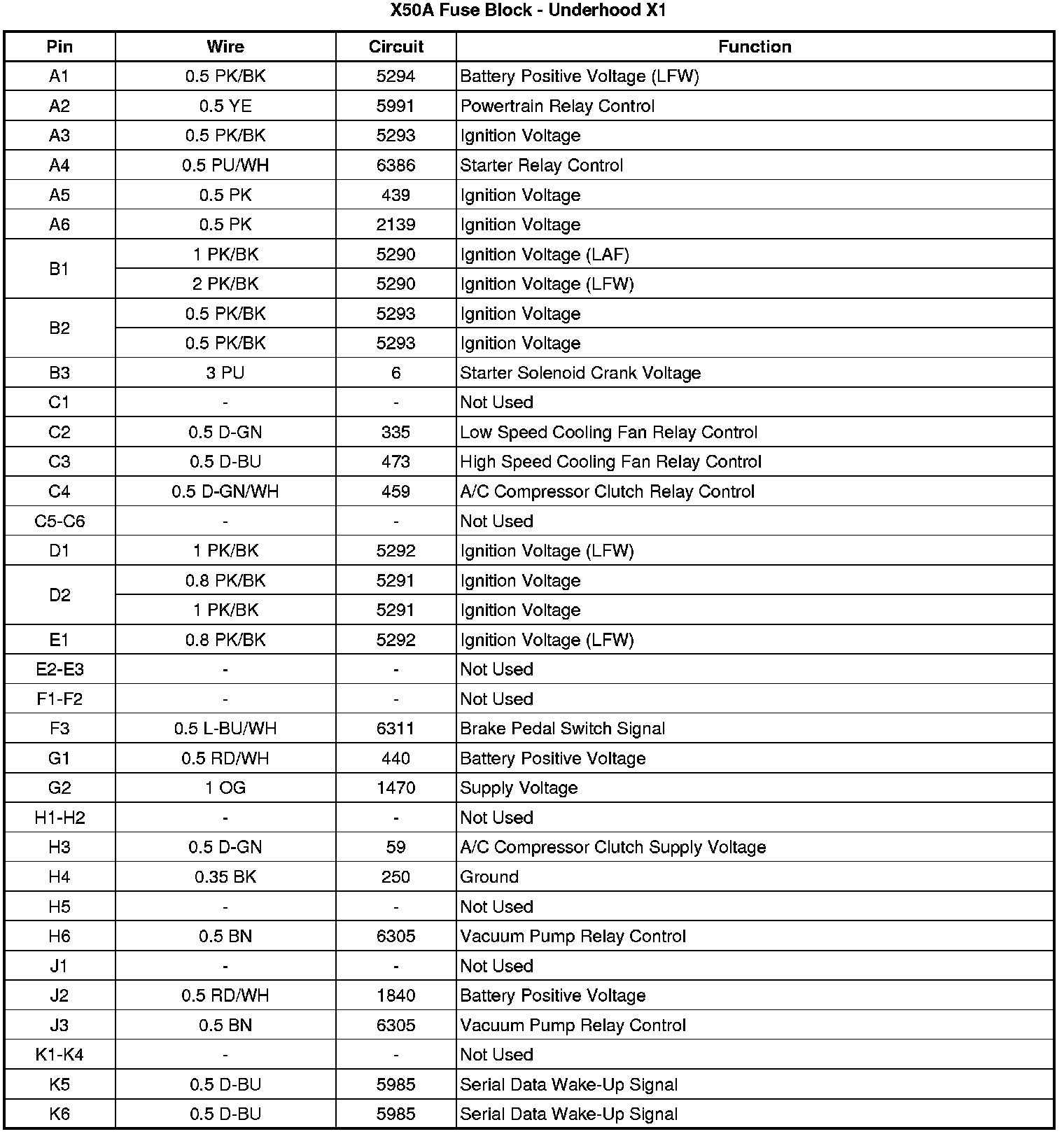

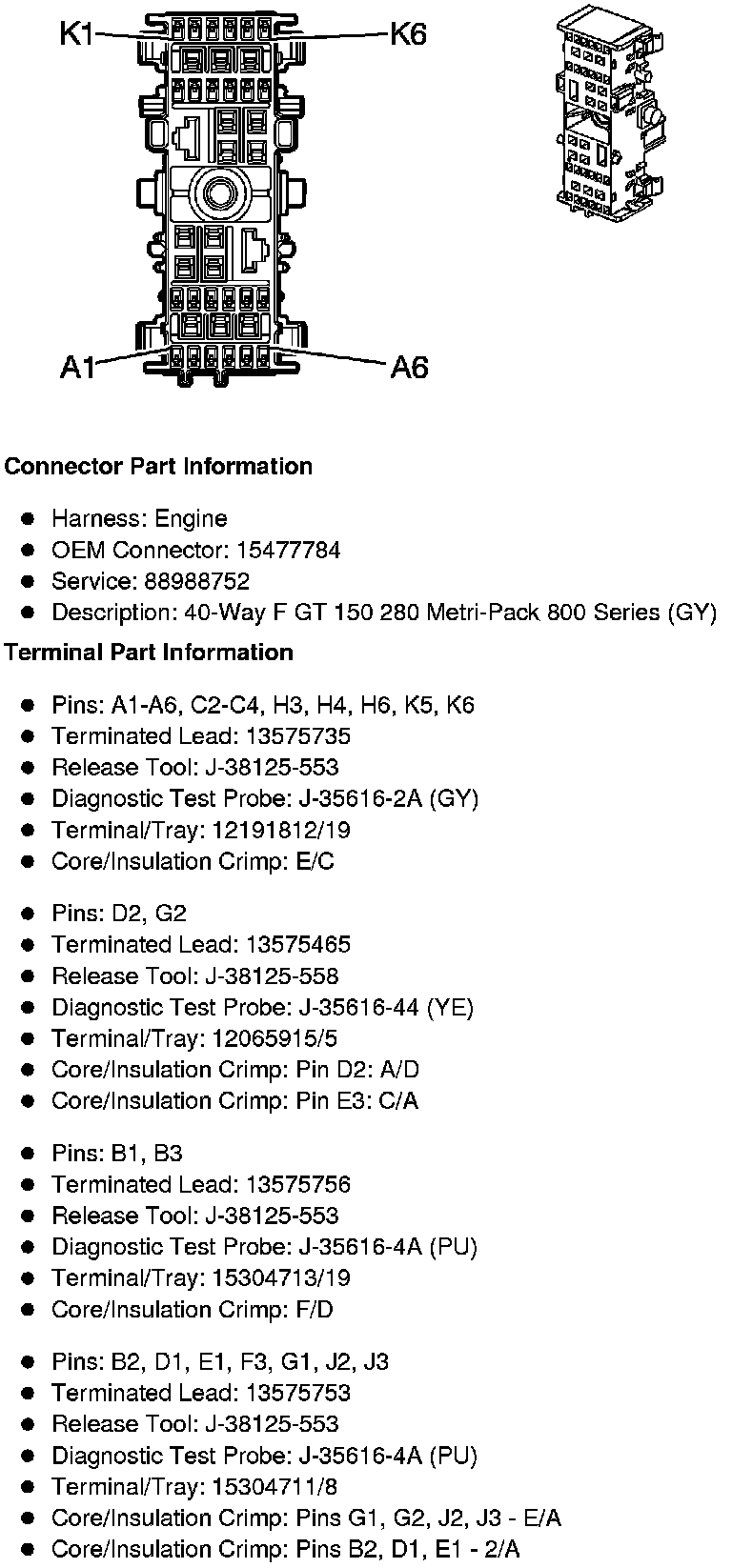

X50A Fuse Block - Underhood X1

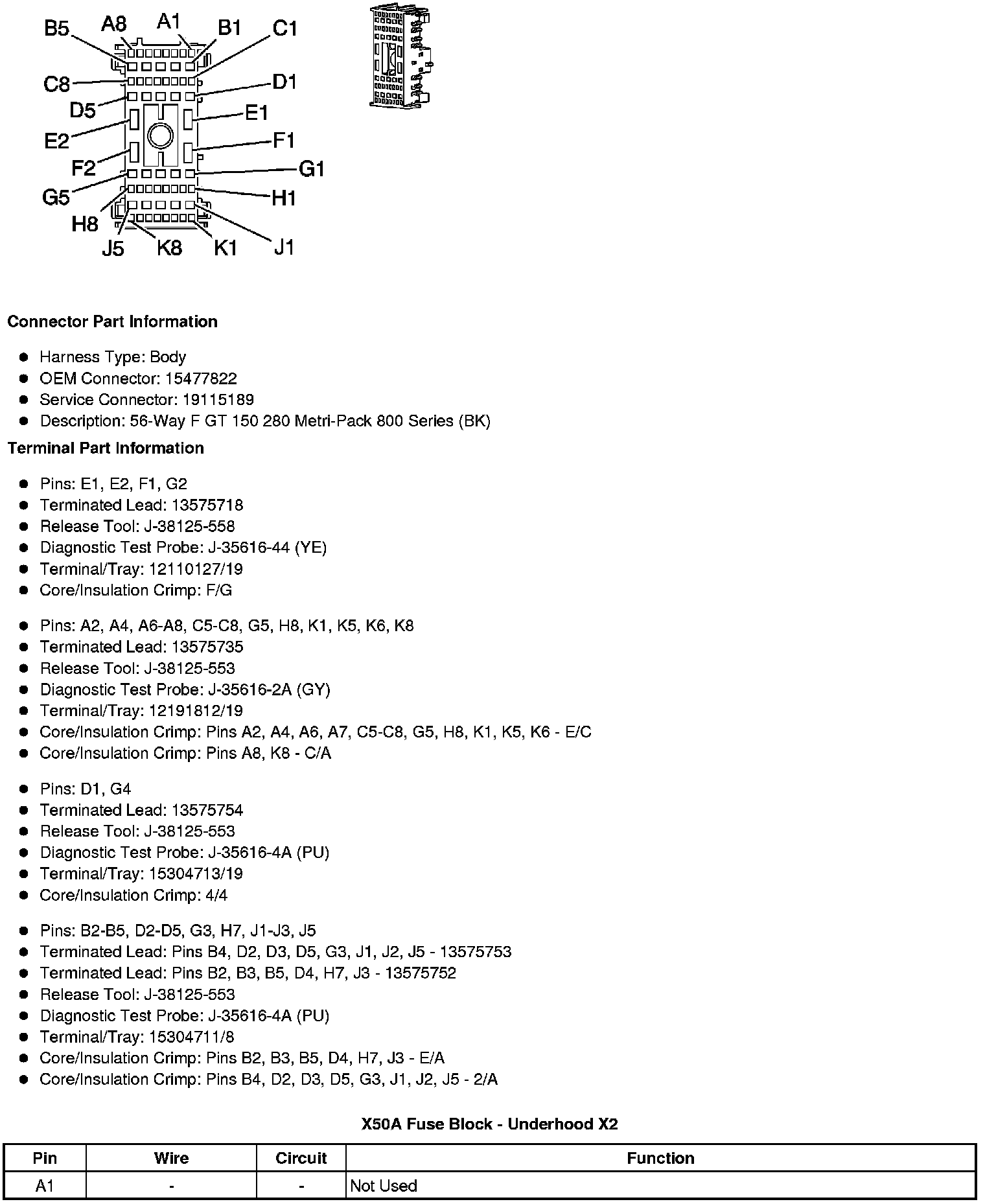

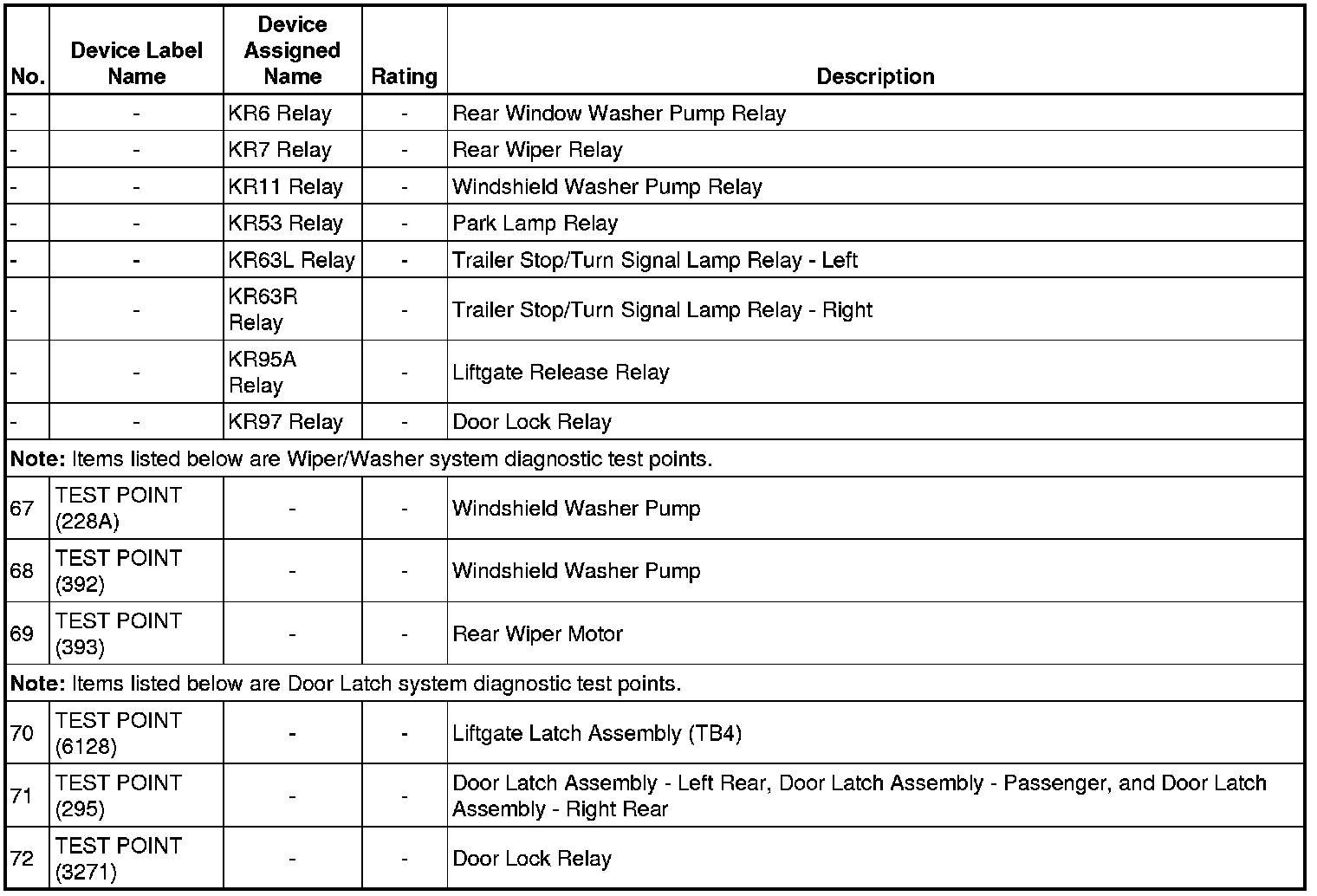

X50A Fuse Block - Underhood X2

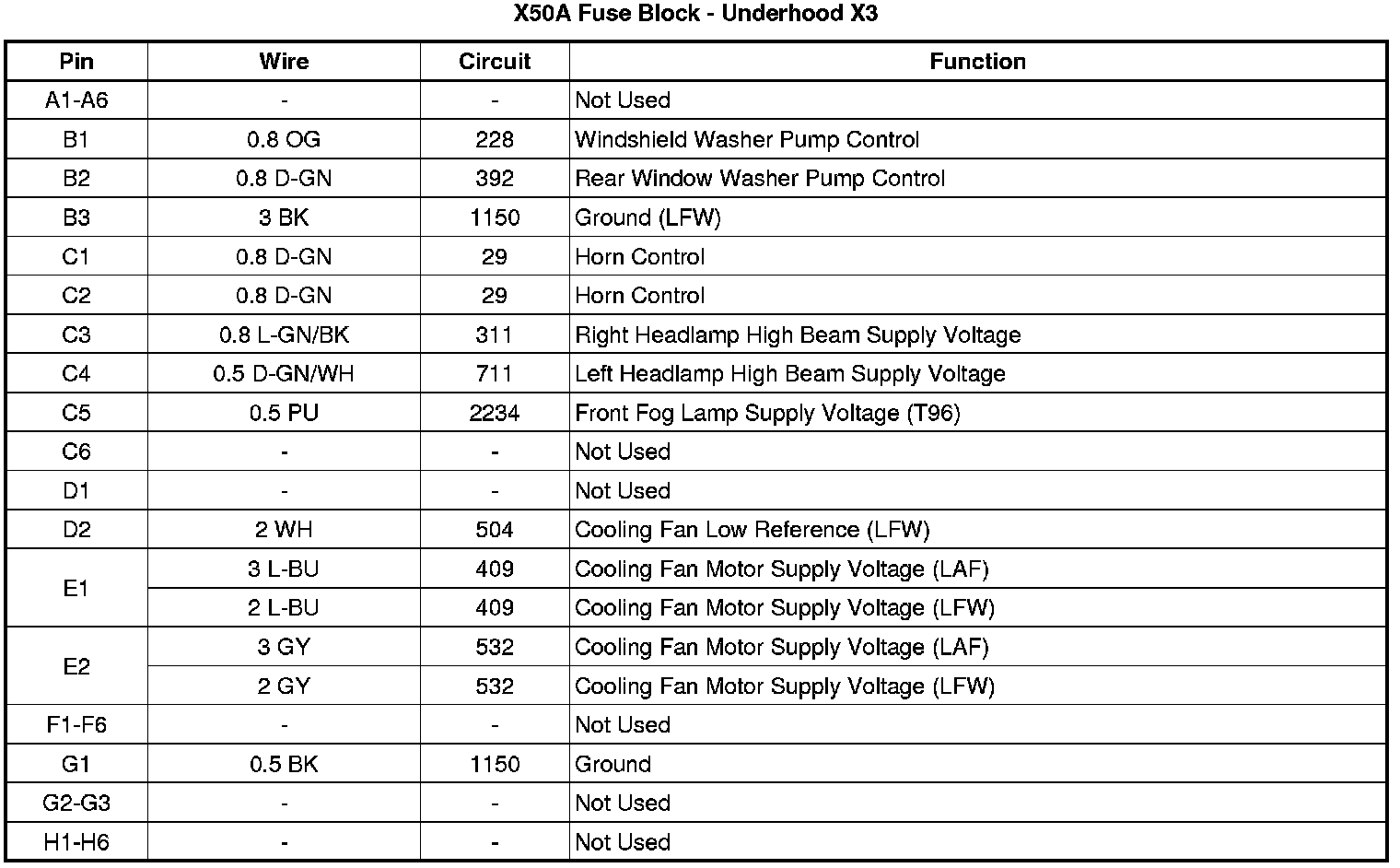

X50A Fuse Block - Underhood X3

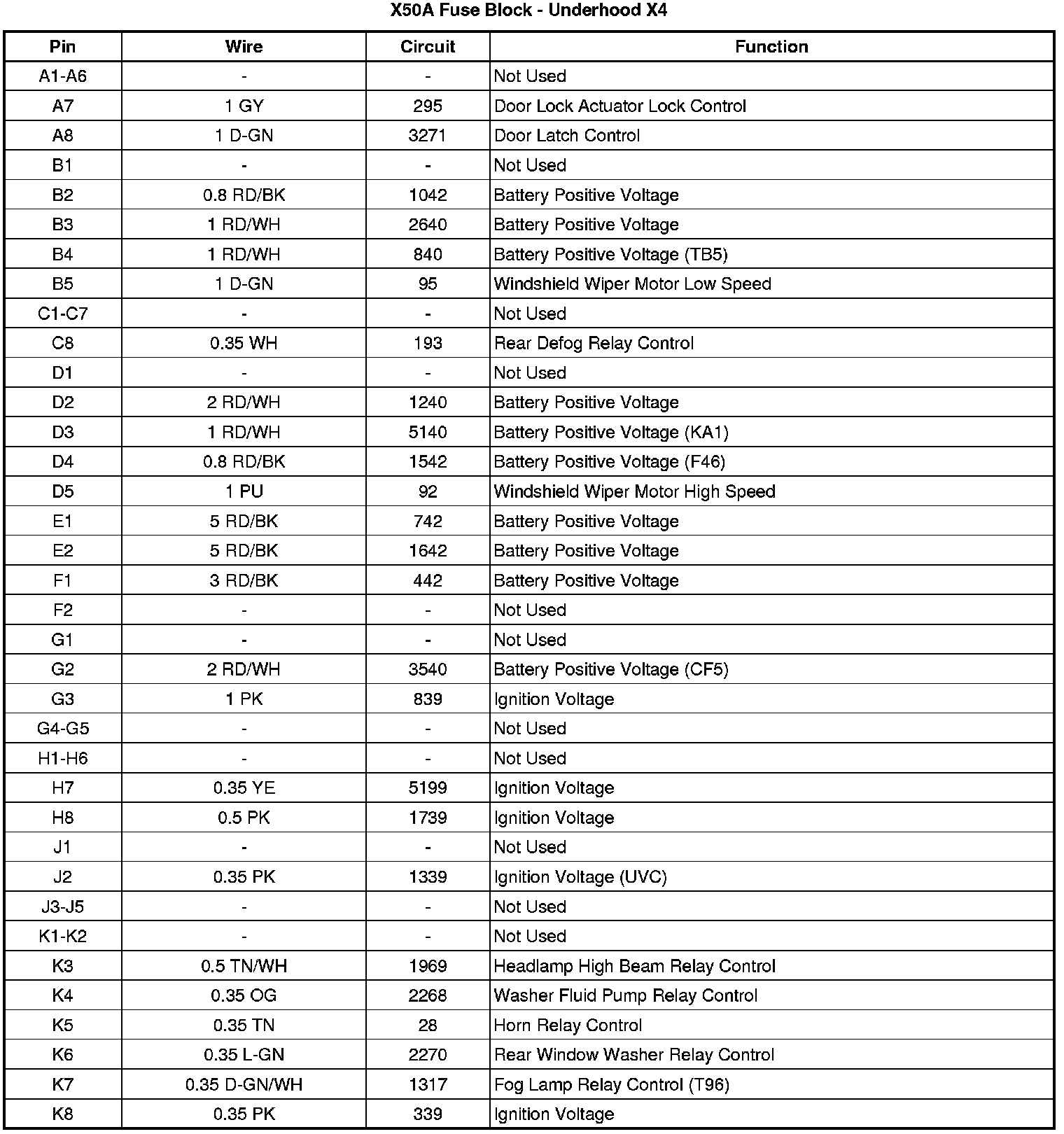

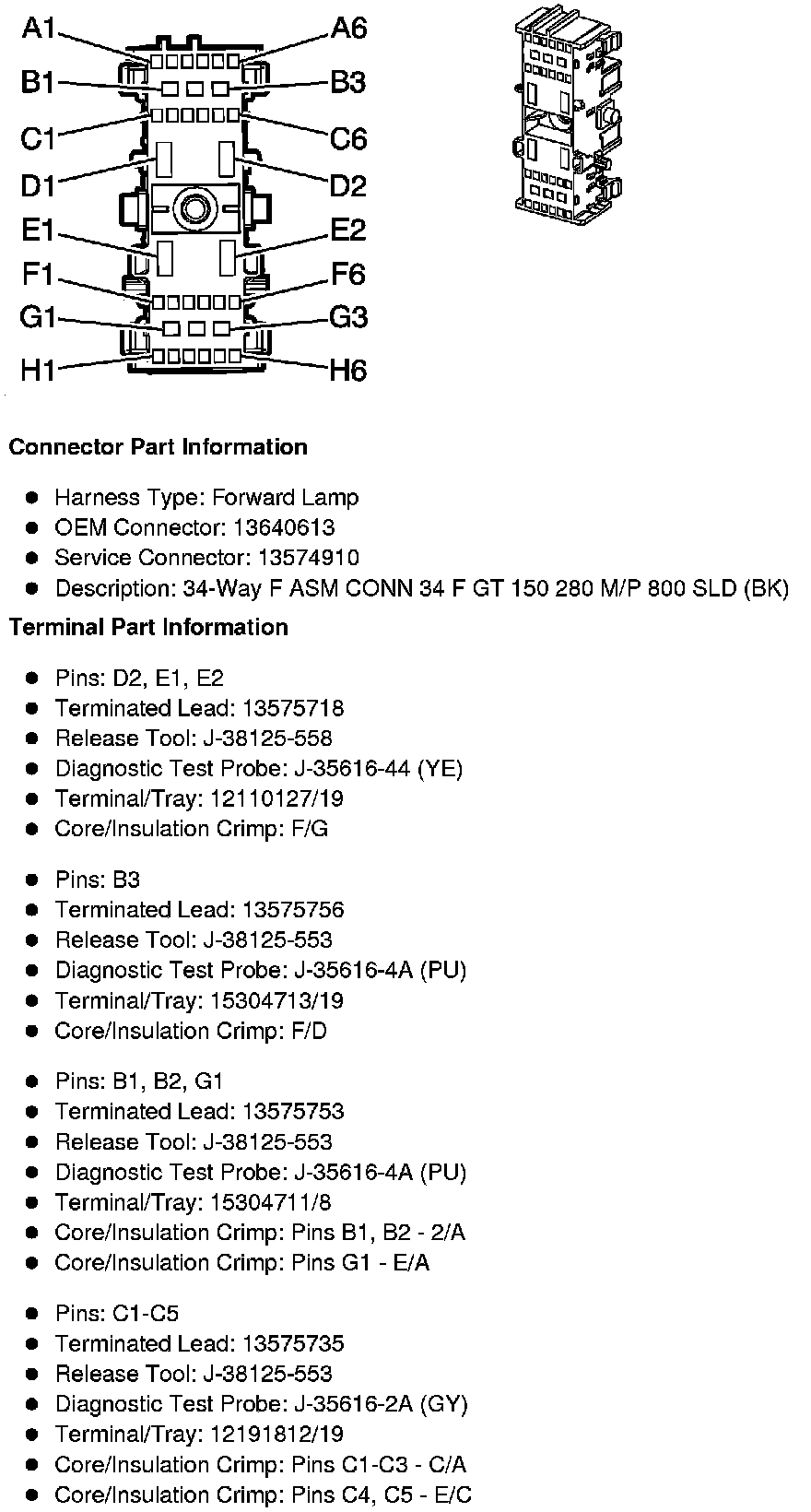

X50A Fuse Block - Underhood X4

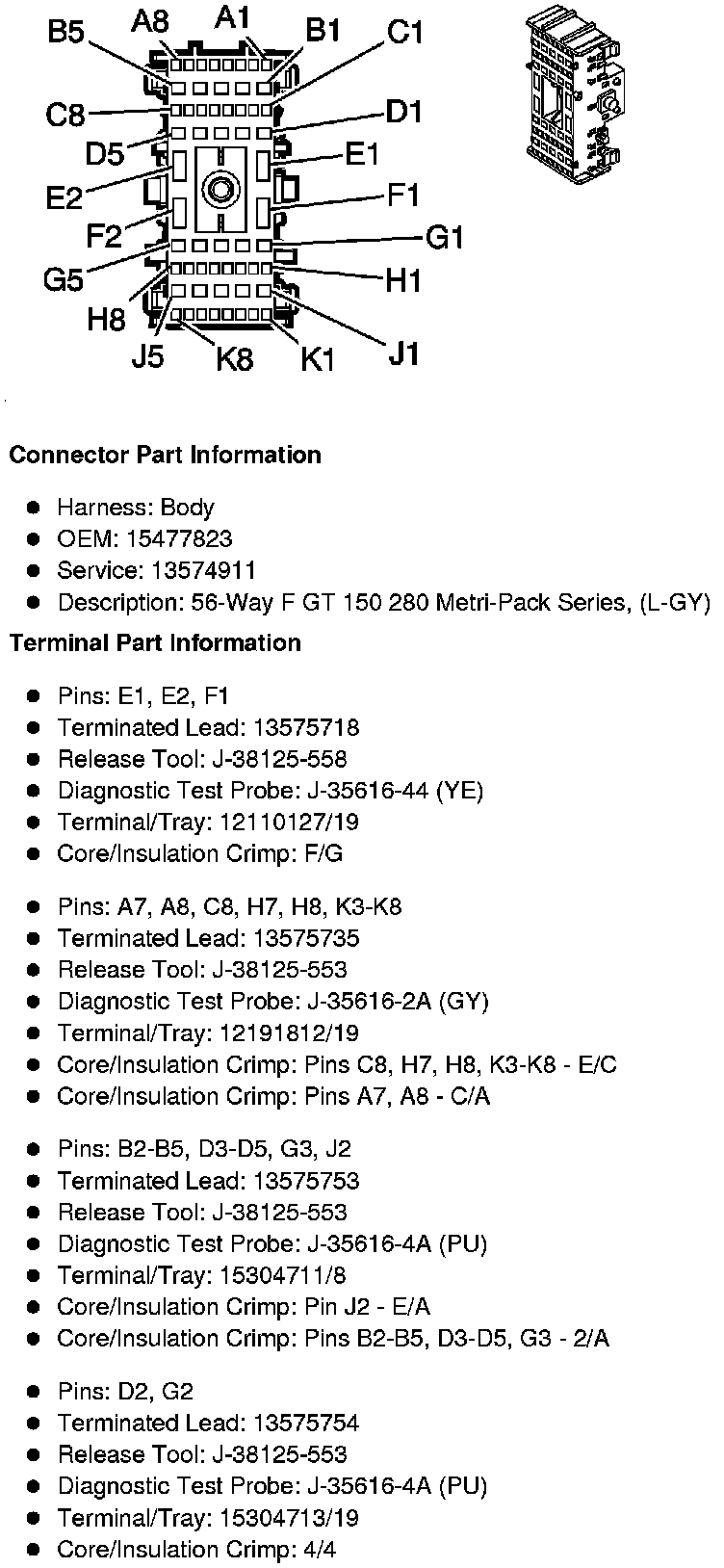

X50A Fuse Block - Underhood X5

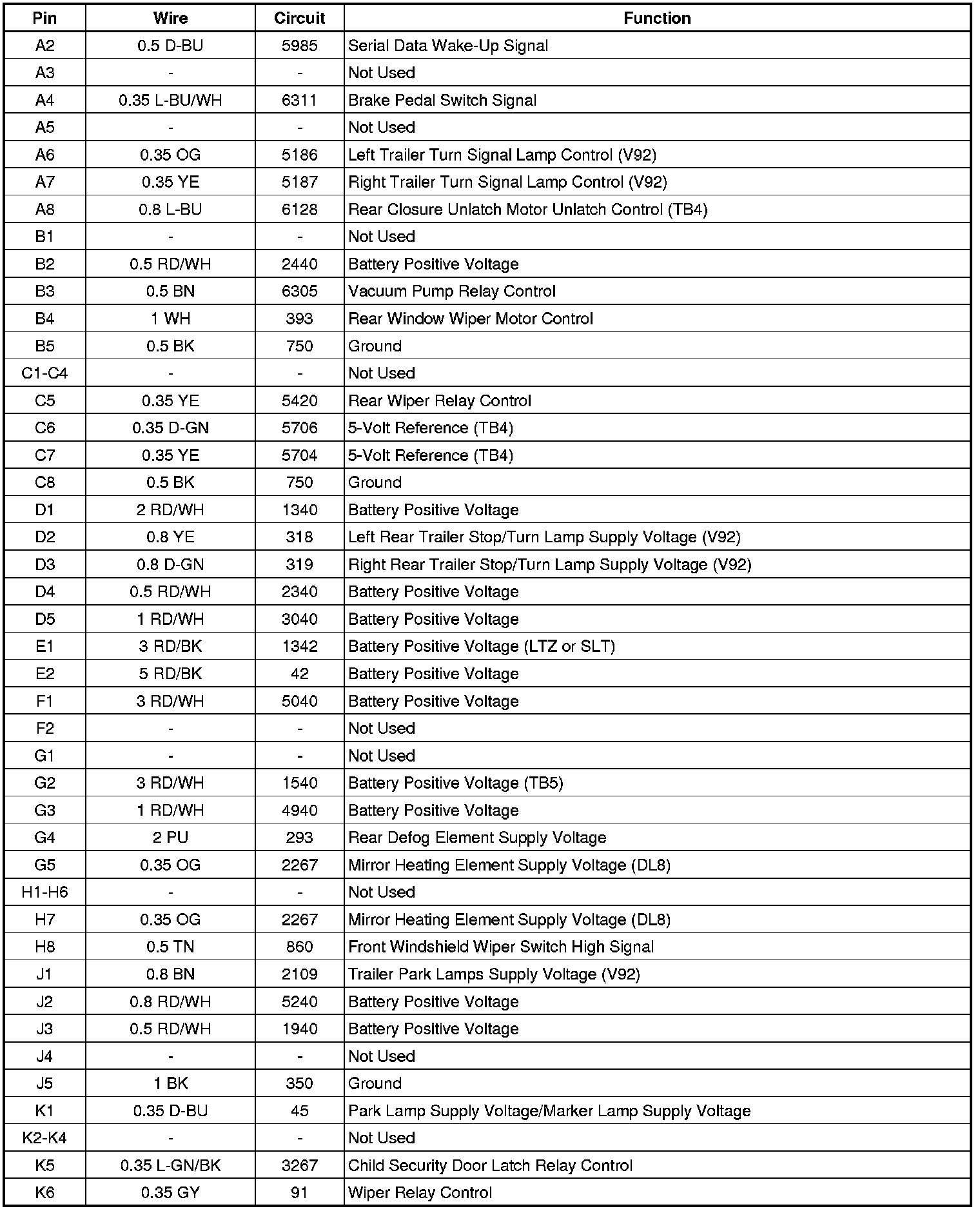

X50A Fuse Block - Underhood X6 (LAF)
