Seat Occupant Sensor: Locations

Passenger Compartment/Roof Component Views

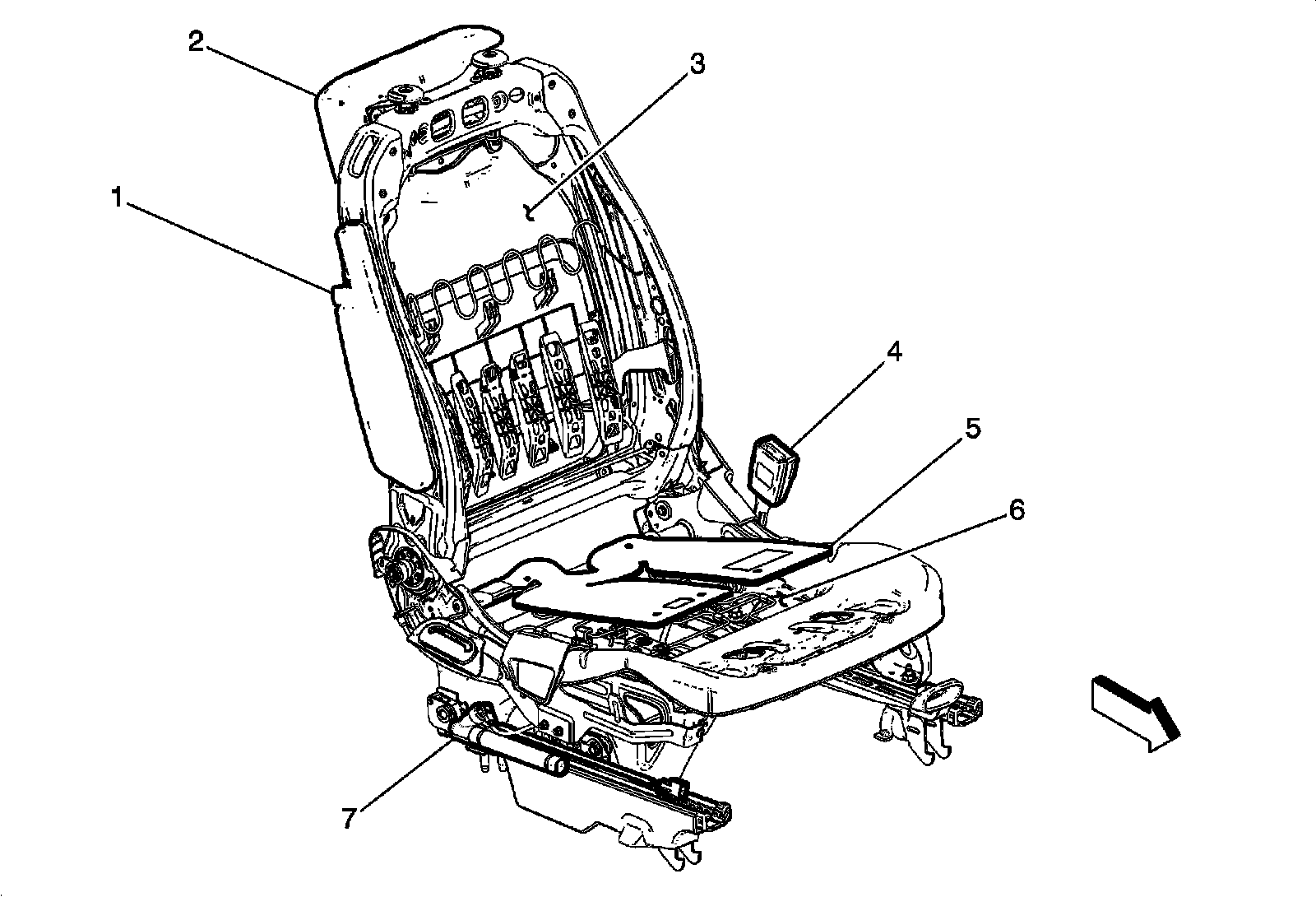

Passenger Seat Components




1 - F106R Side Air Bag - Right
2 - P22F Video Display - Passenger Seatback (UWG)
3 - E14C Seat Heating Element - Passenger Back (KA1)
4 - B88P Seat Belt Switch - Passenger
5 - K85 Passenger Presence Detection Module
6 - E14D Seat Heating Element - Passenger Cushion (KA1)
7 - F113P Seat Belt Anchor Pretensioner - Passenger
