Parking Assist Control Module: Diagrams




Component Connector End Views

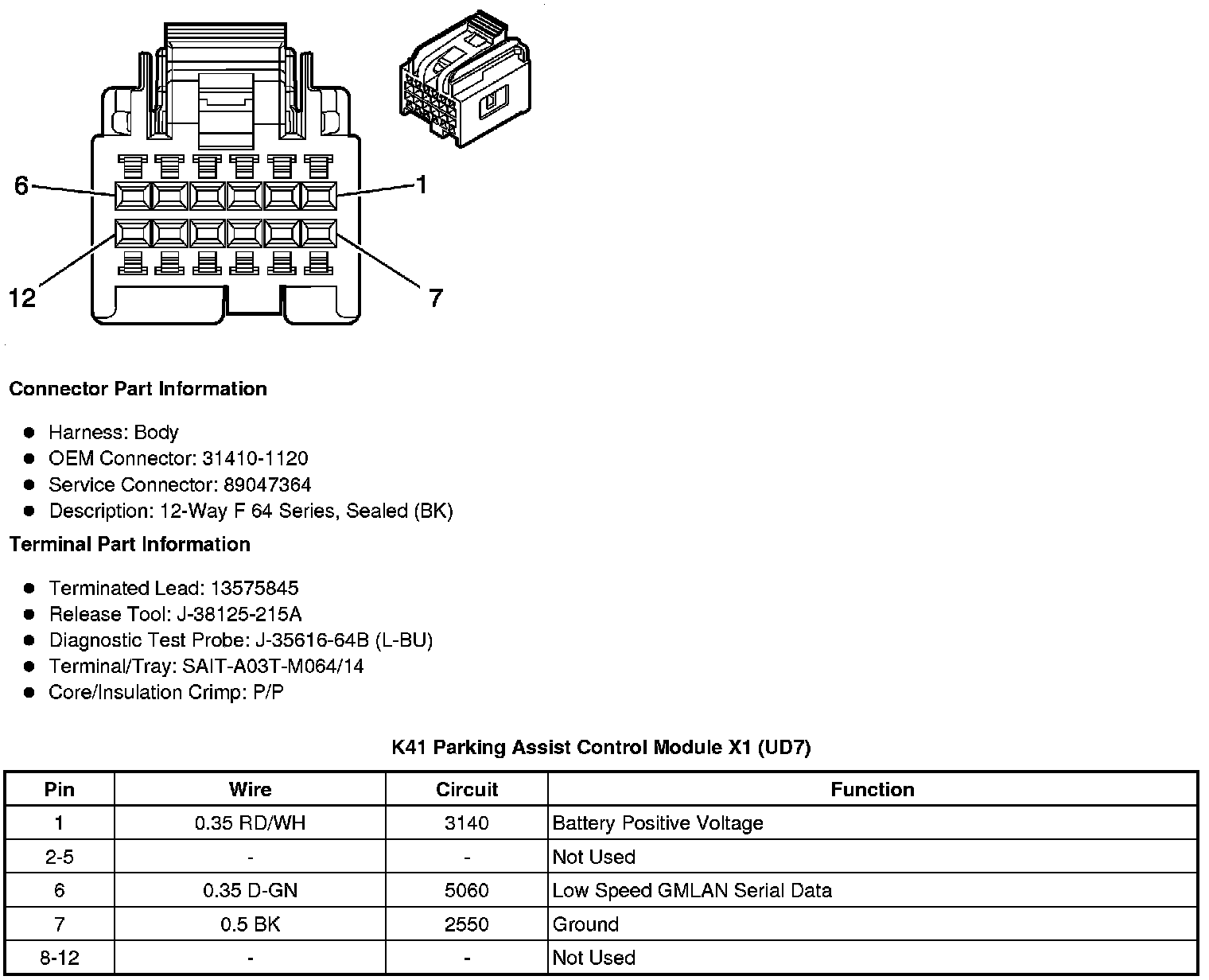

K41 Parking Assist Control Module X1 (UD7)

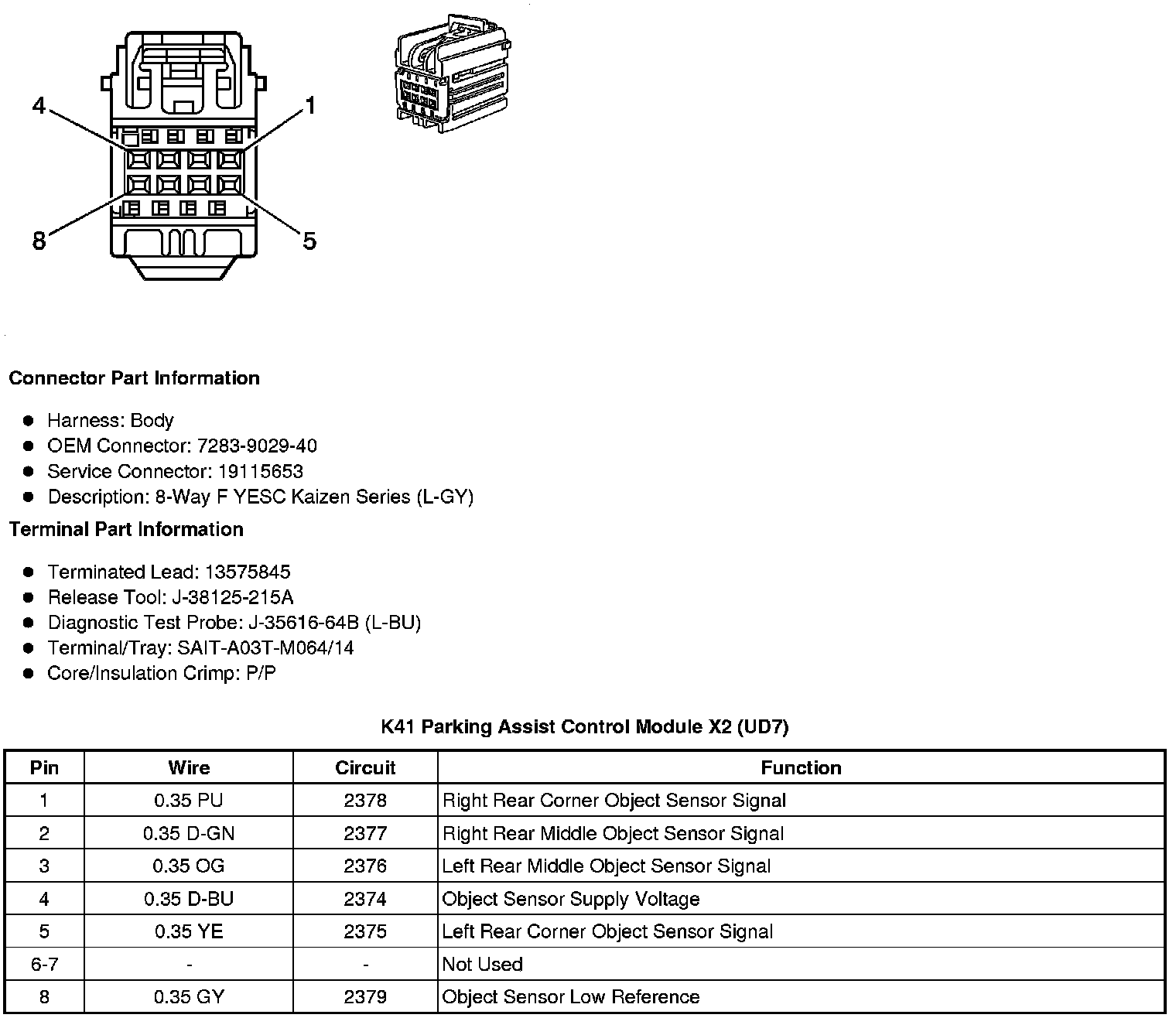

K41 Parking Assist Control Module X2 (UD7)
