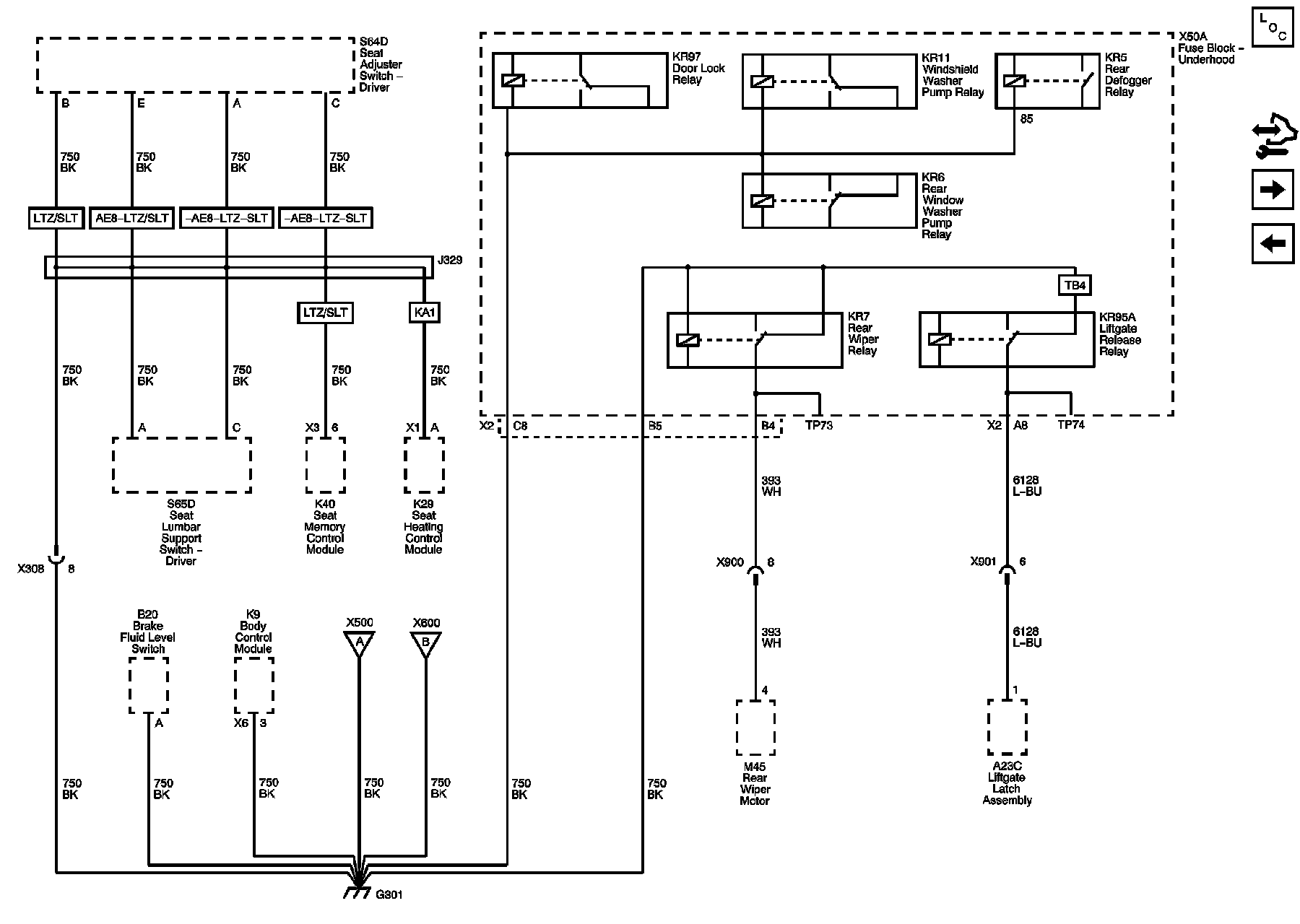

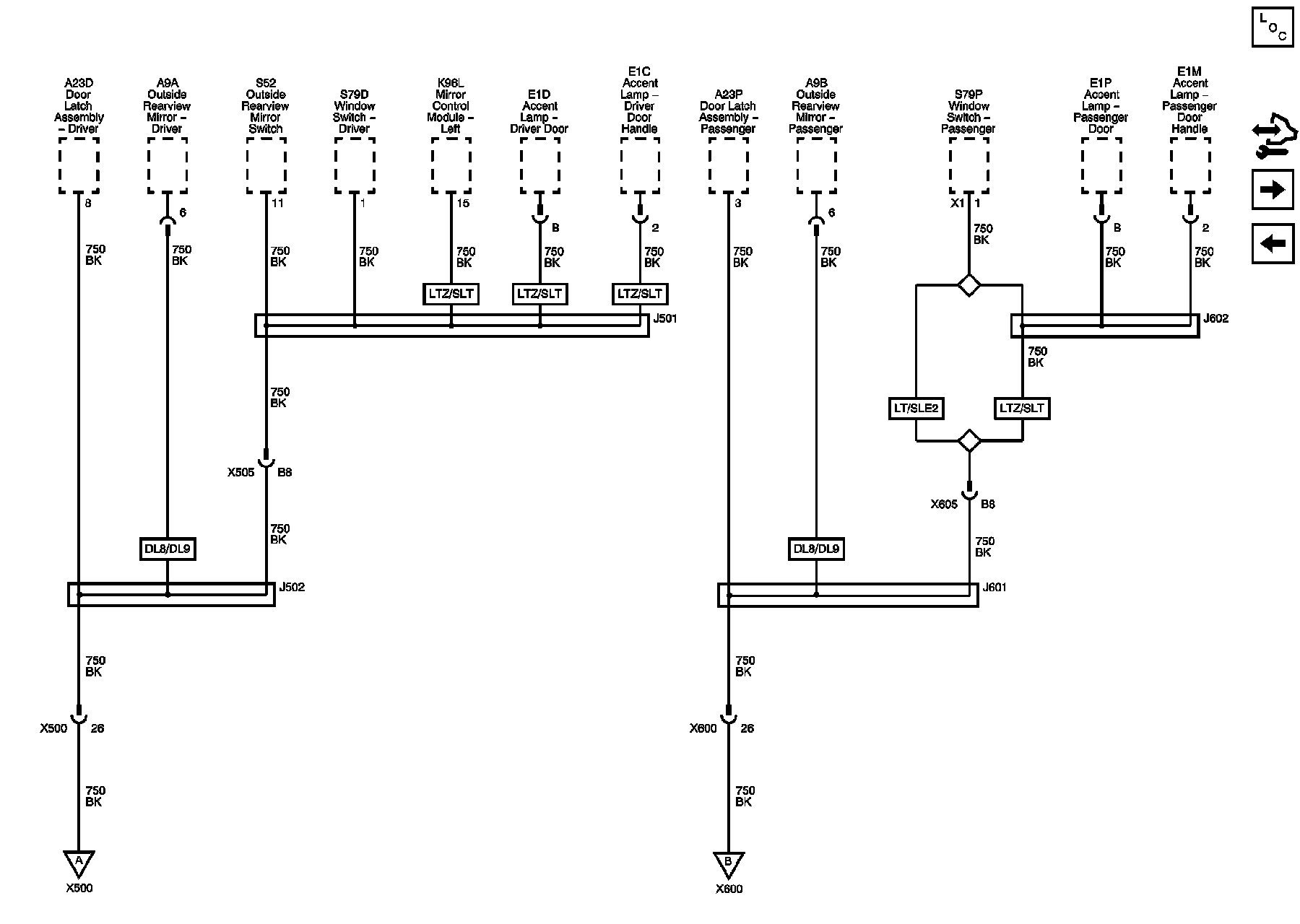

Home >> GMC >> 2011 >> Terrain AWD L4-2.4L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Starting and Charging >> Power and Ground Distribution >> System Diagram >> Ground Distribution Schematics >> G301
