Seat Temperature Element




Heated/Cooled Seat Schematics

Power, Ground, Serial Data, and Controls (KA1)

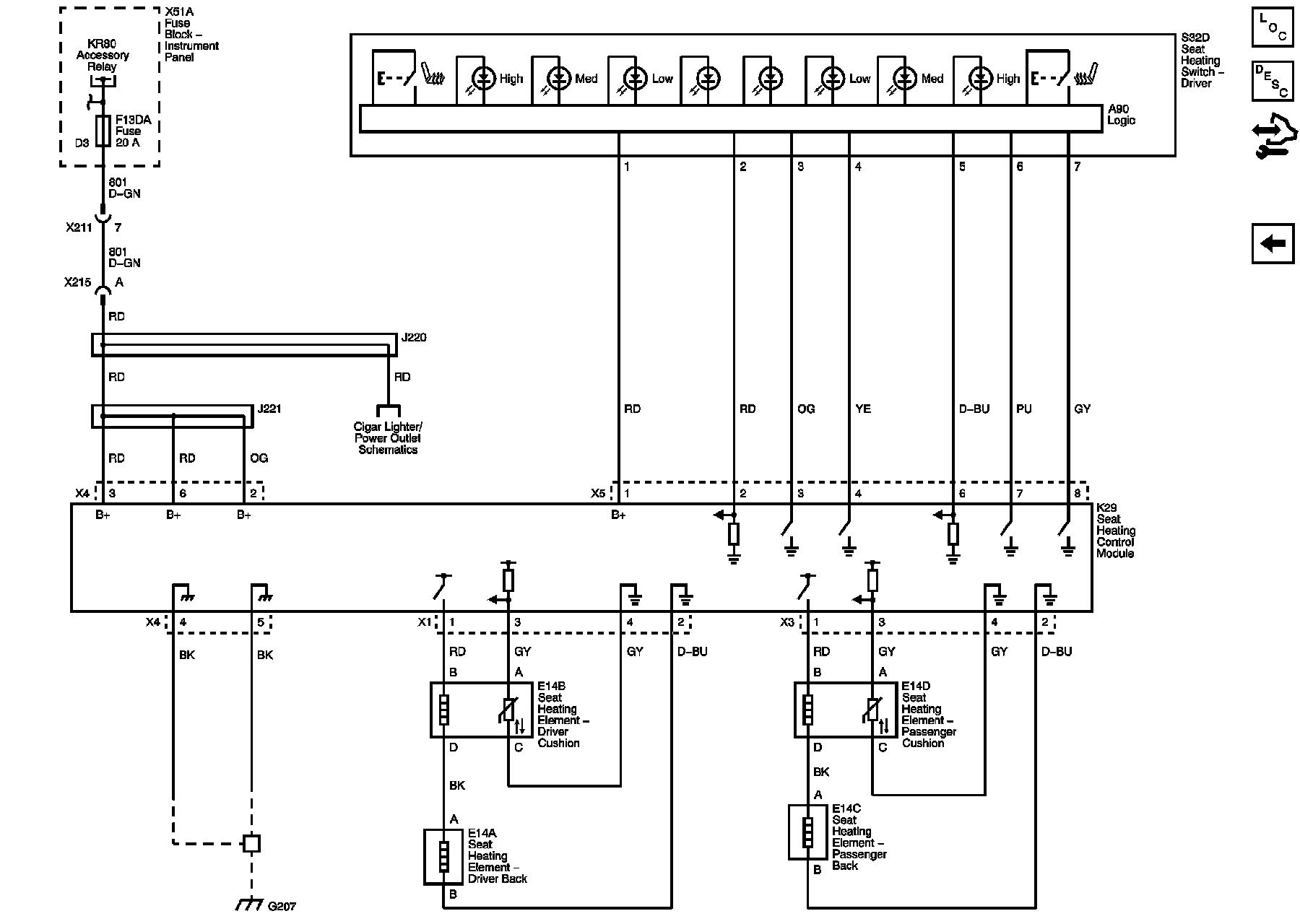

Heating Elements (KA1 without LTZ or SLT)





Heating Elements (KA1 with LTZ or SLT)





SPO Heated Seats
