Information Bus
Data Communication Schematics

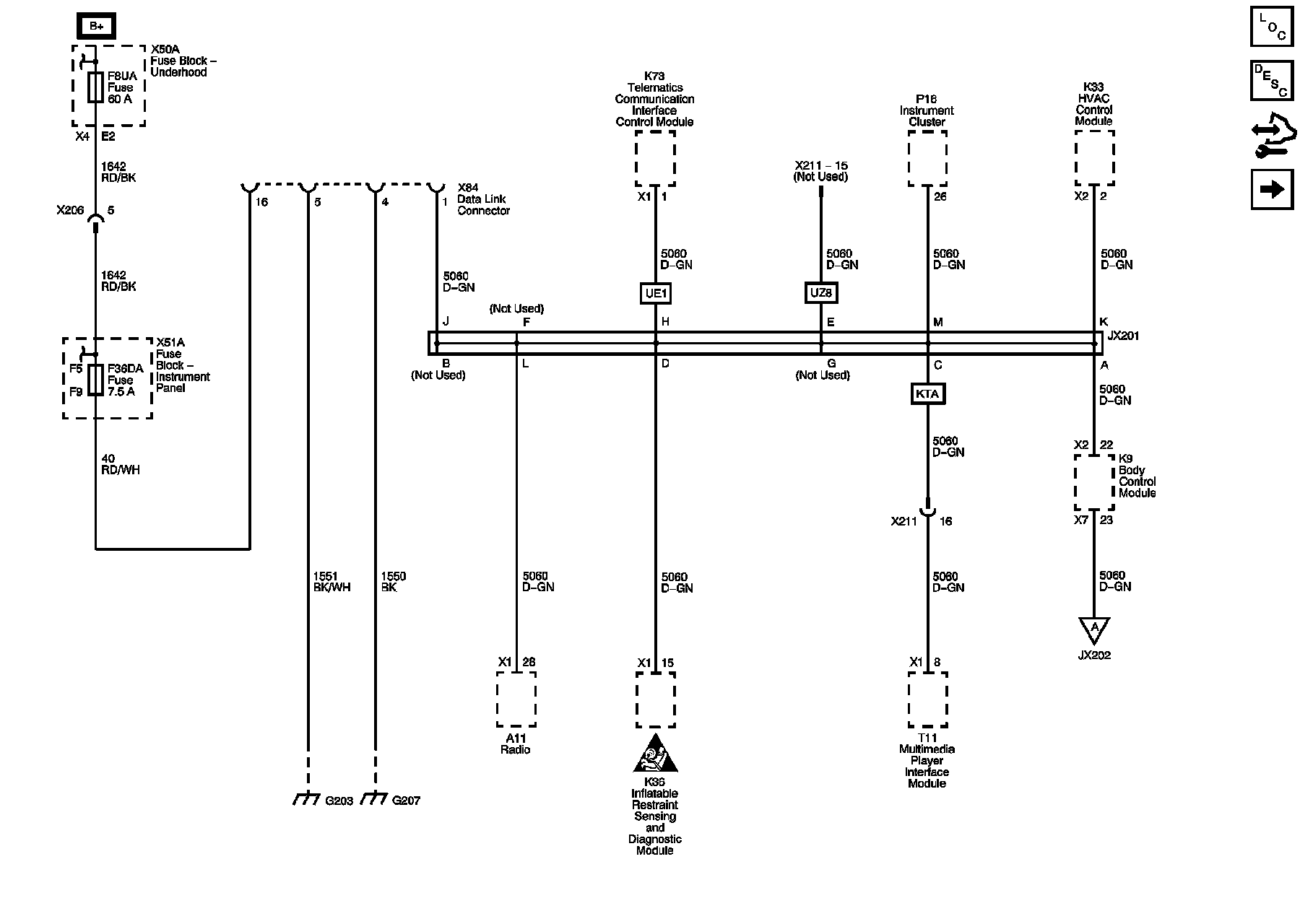

Low Speed GMLAN (1 of 2)
Low Speed GMLAN (2 of 2)

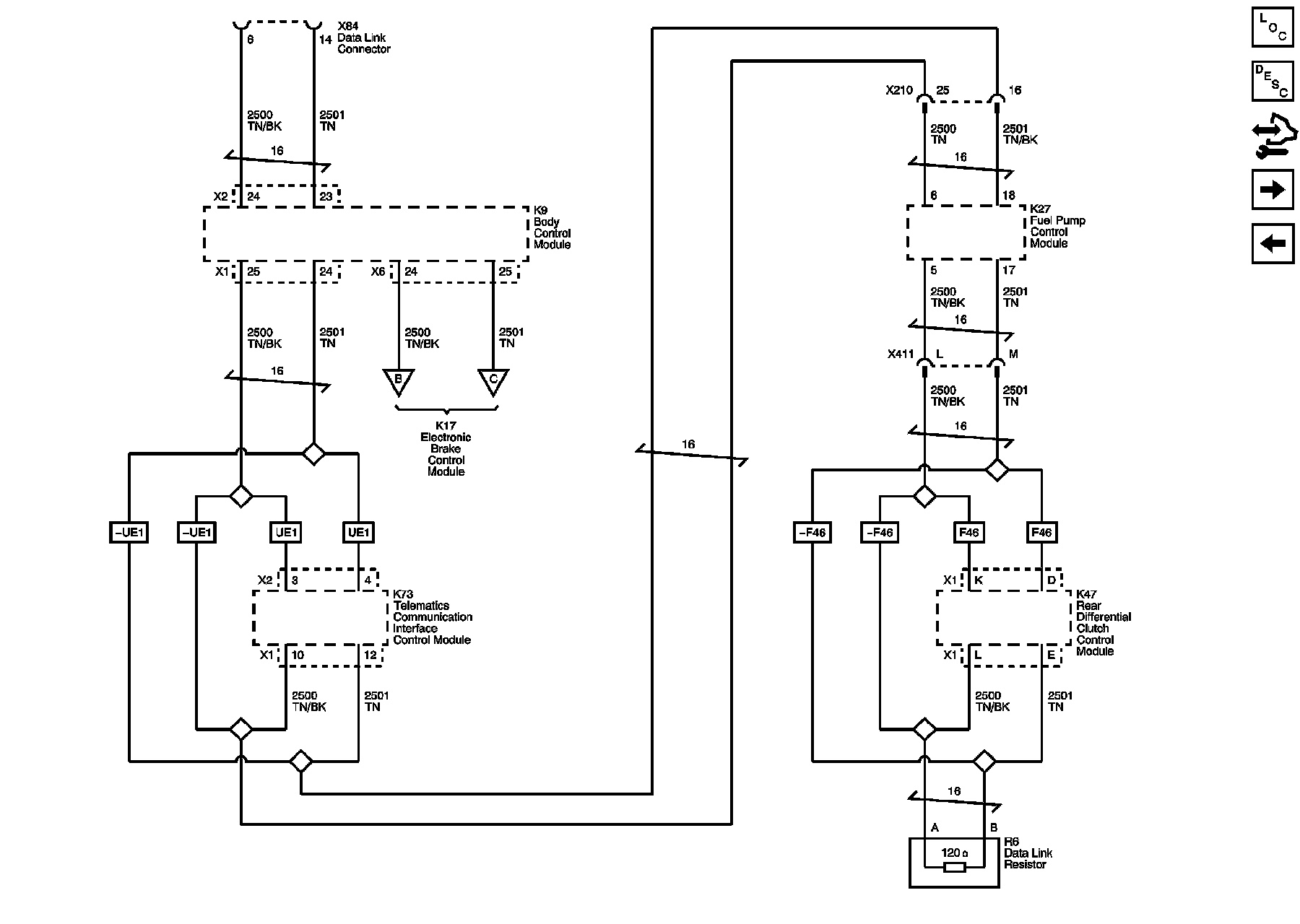

High Speed GMLAN (1 of 2)
High Speed GMLAN (2 of 2)

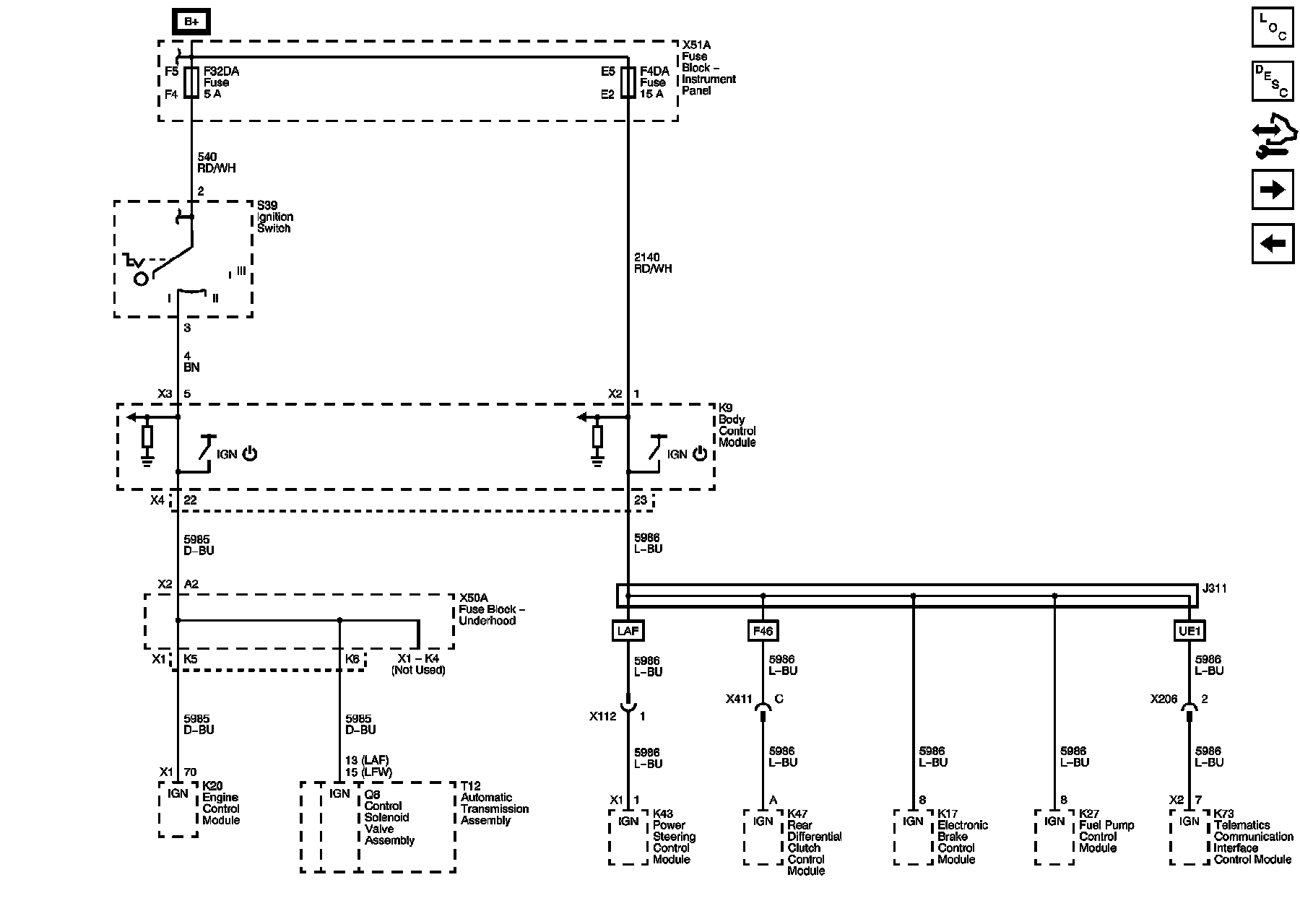

Enable Serial Data

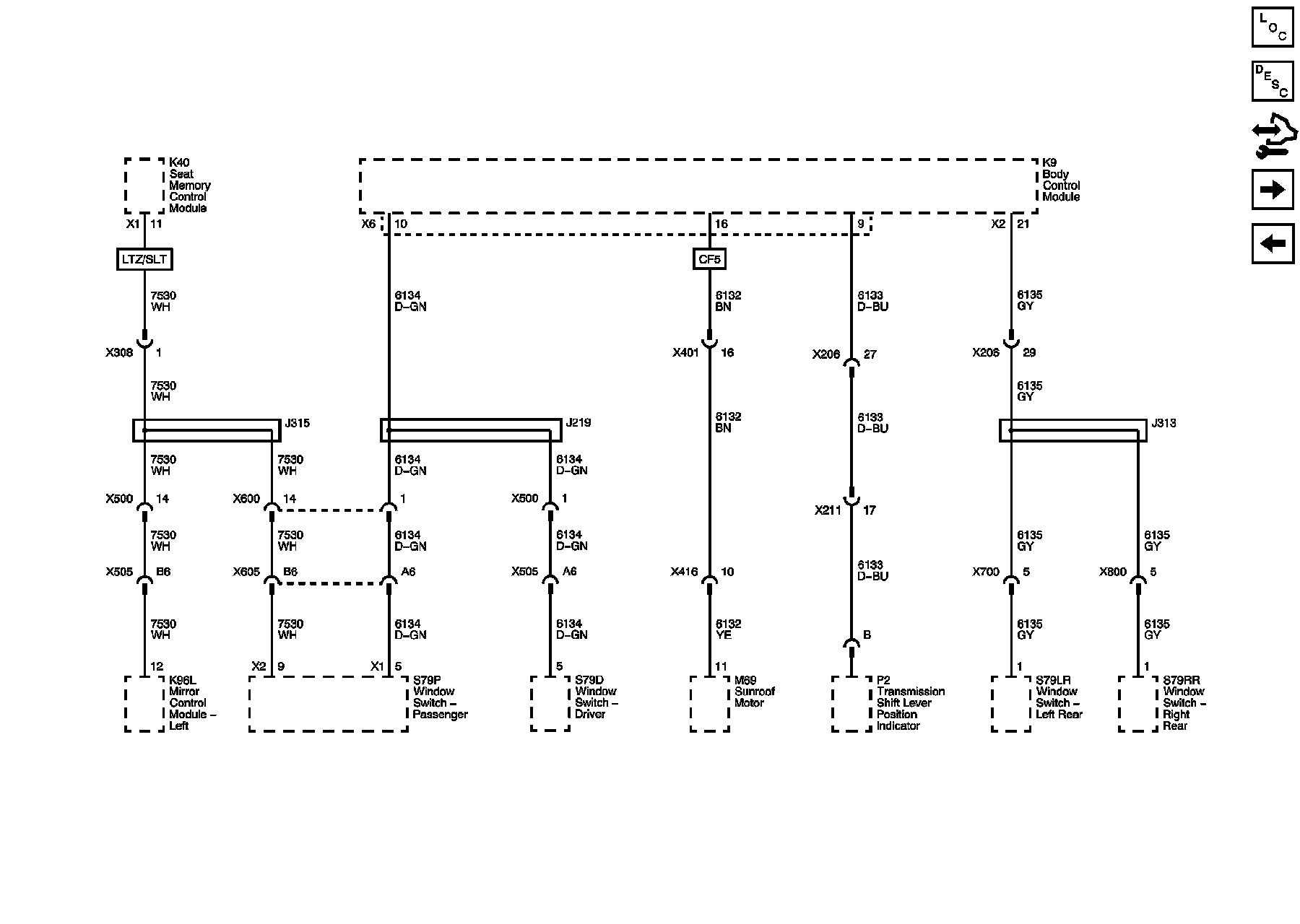

BCM Linear Interconnect Network (LIN) Bus 1, 2, 3, 4 and Memory Seat LIN Bus
Radio/HVAC Linear Interconnect Network (LIN) Bus and CAN Graphical Interface
Chassis Expansion Bus
