Home >> GMC >> 2011 >> Terrain AWD L4-2.4L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Lighting and Horns >> System Diagram >> Interior Lights Schematics

Interior Lights Schematics




Interior Lights Schematics

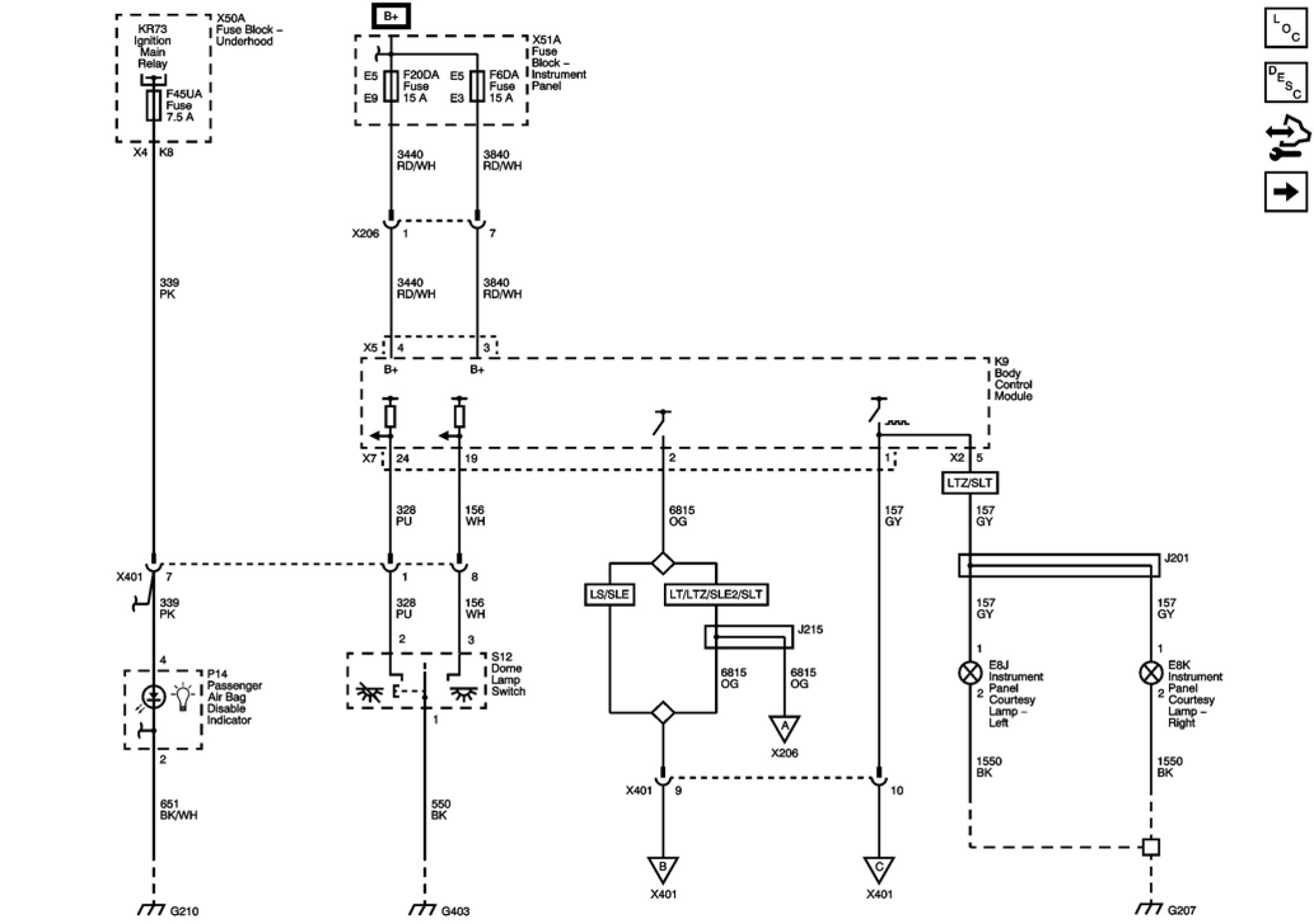

Interior Light Controls, Air Bag Indication, and Footwell Lighting

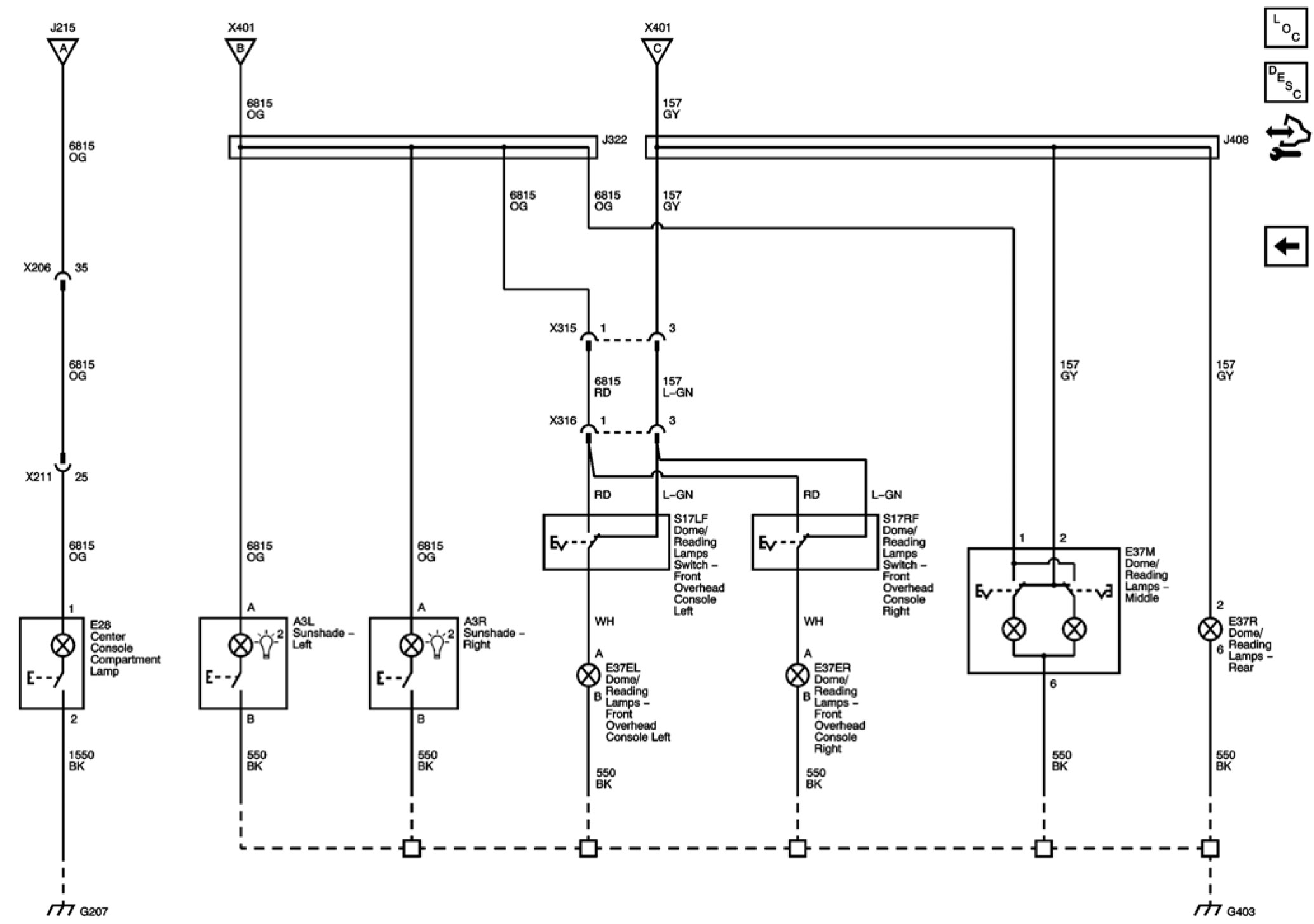

Headliner and Floor Console Lighting
