Interior Lights Dimming Schematics





Interior Lights Dimming Schematics

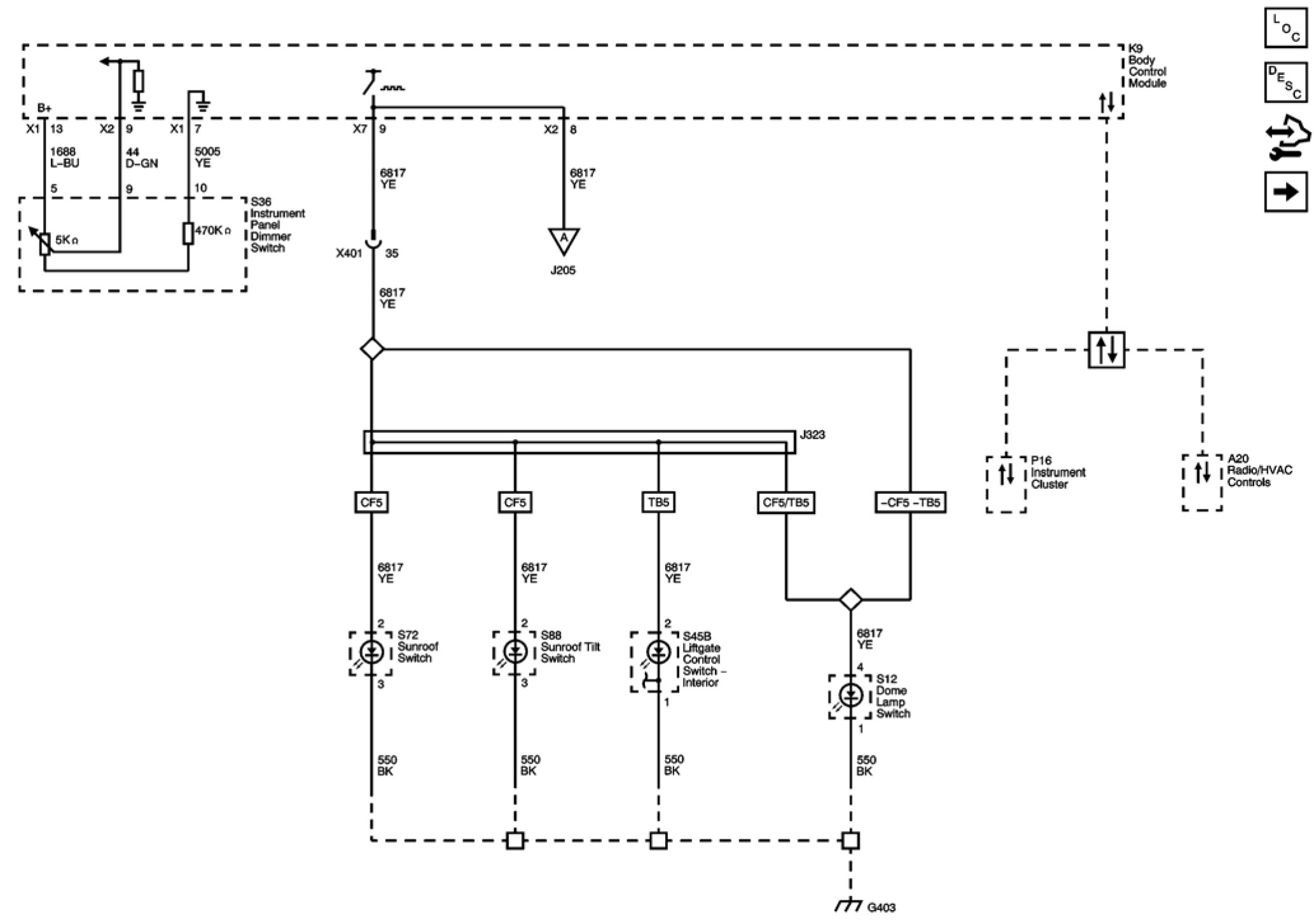

Dimming Controls, and Switch Illumination (1 of 2)

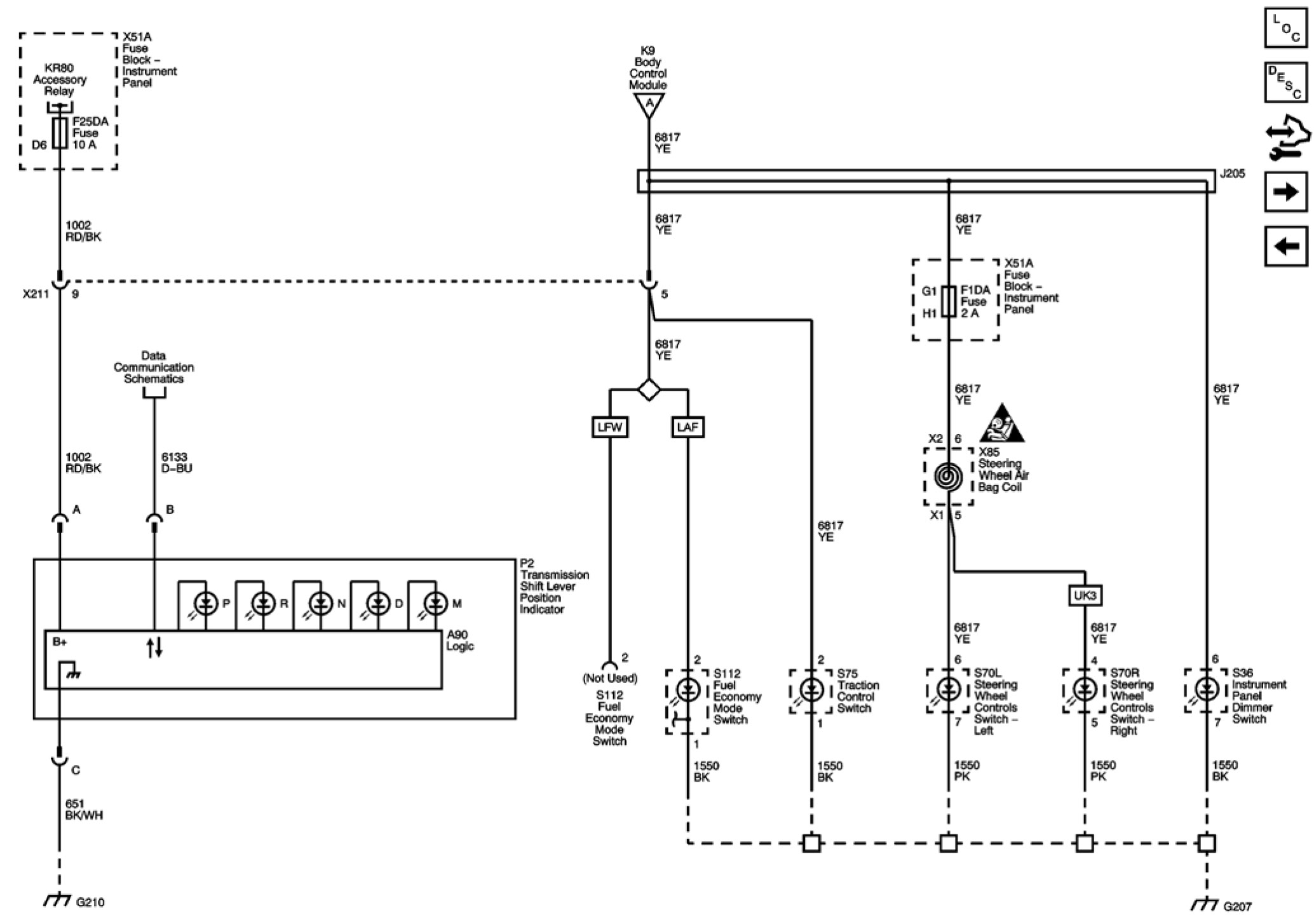

Shift Lever Position Indicator, and Switch Illumination (2 of 2)

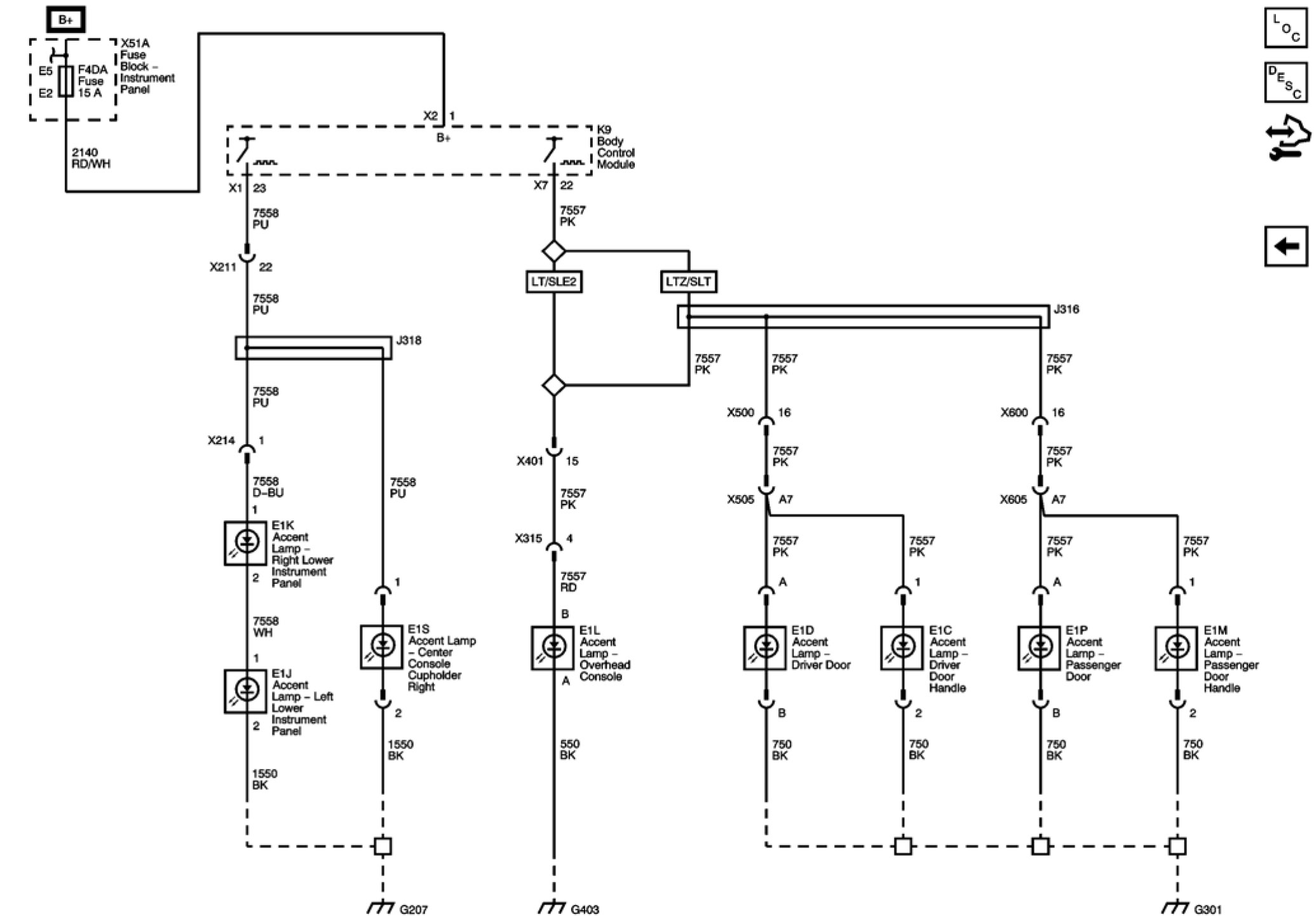

Accent Lighting
