6T70/6T75 - Automatic Transmission
Automatic Transmission Controls Schematics
Module Power, Ground, and Serial Data (MH2 or MH4)

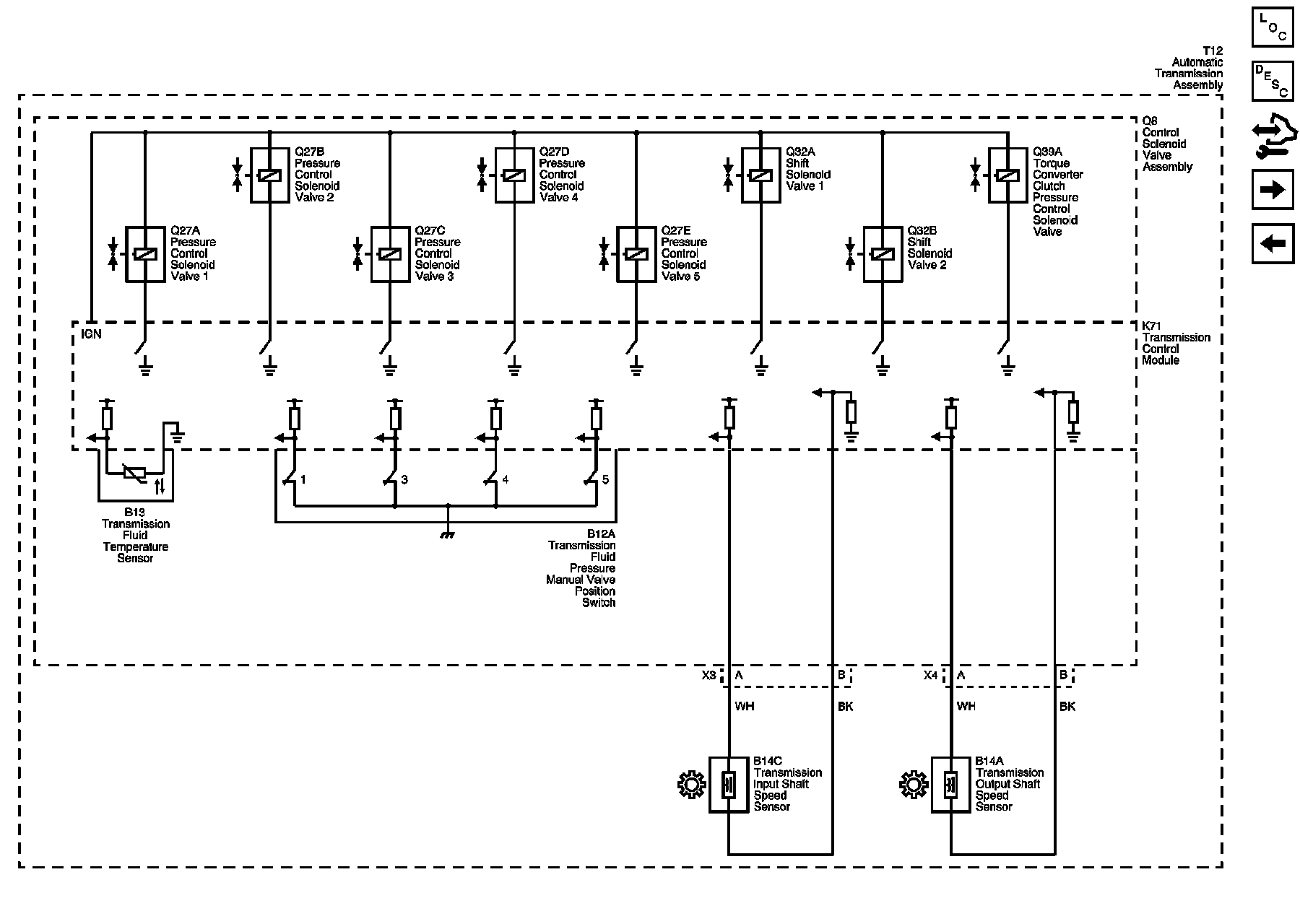

Speed and Fluid Temperature Sensors, Valve Position, Pressure and Shift Controls (MH2 or MH4)
Internal Mode Switch and Tap Up/Tap Down Switches (MH2 or MH4)
