Air Bag Systems




SIR Schematics

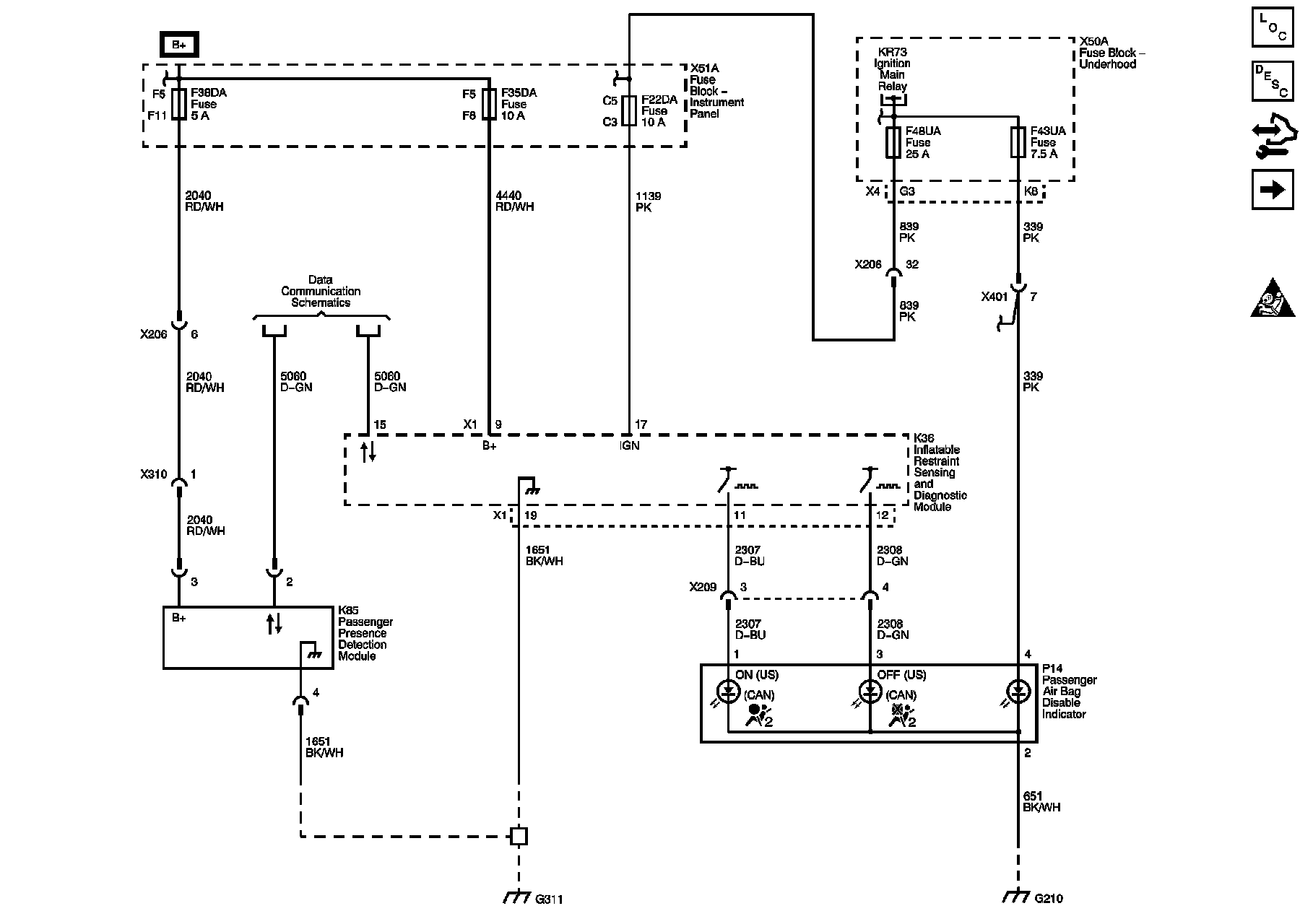

Module Power, Ground, Serial Data, and Front Passenger Presence System

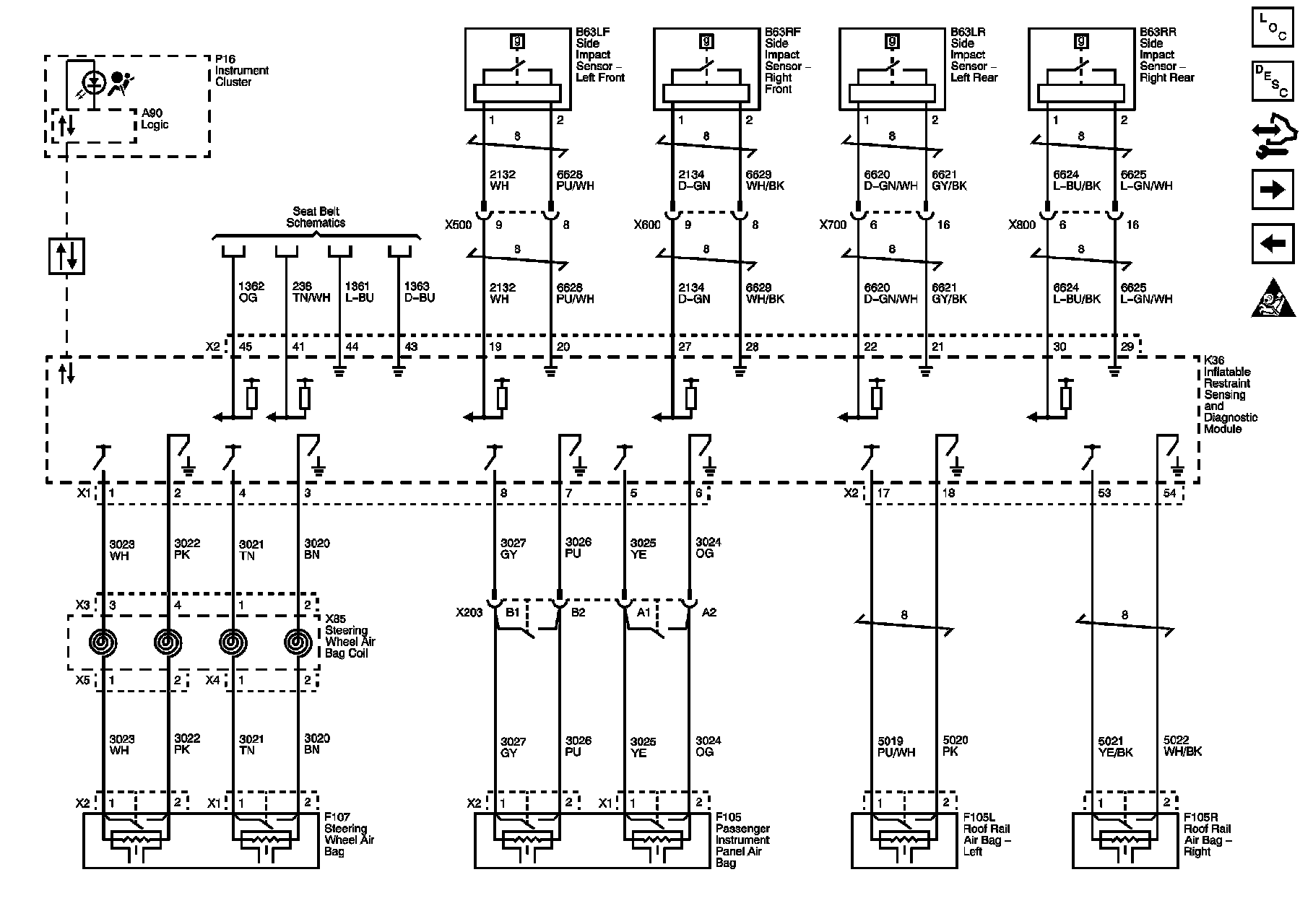

Air Bags and Sensors (1 of 2)

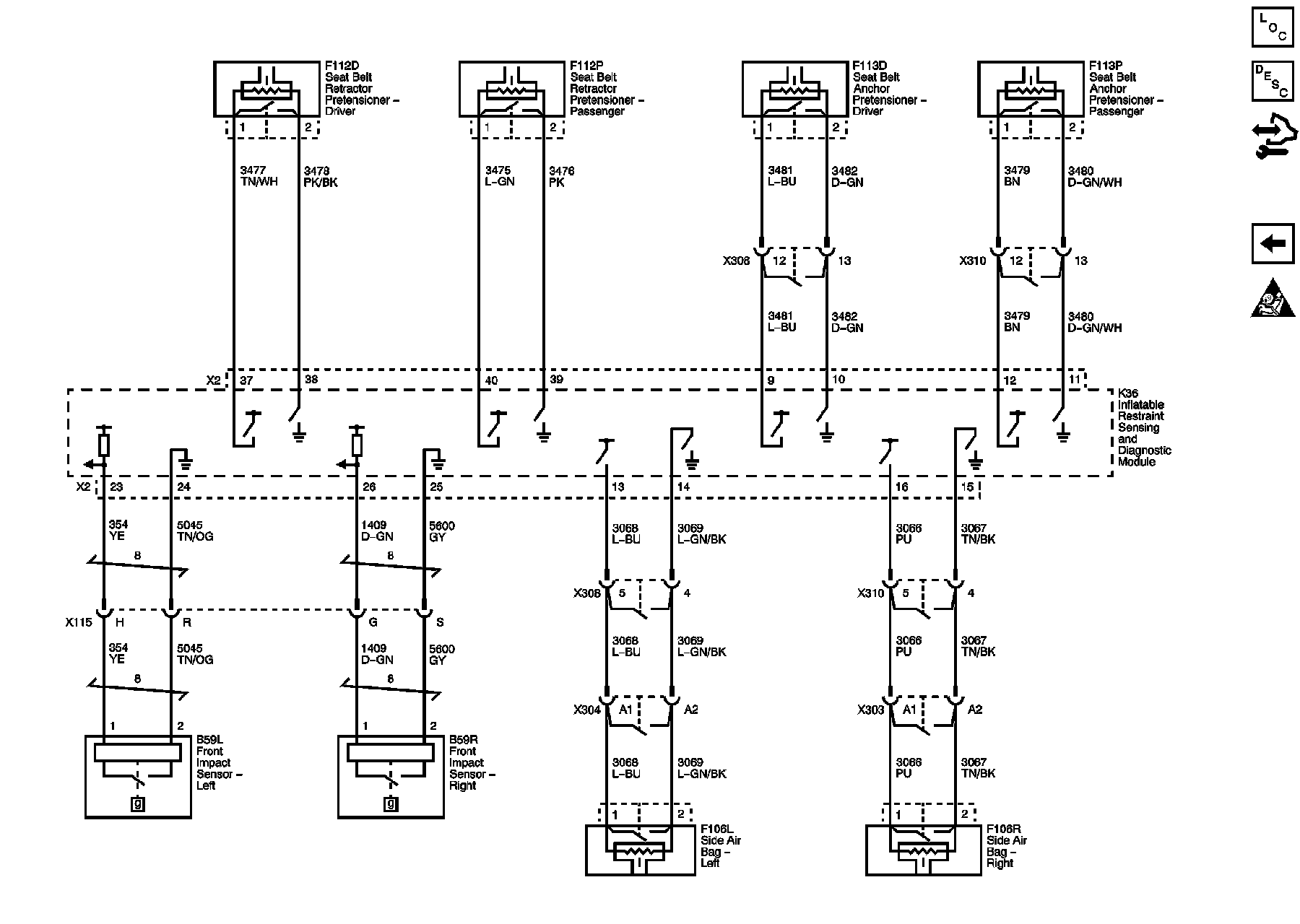

Air Bags and Sensors (2 of 2) and Pretensioners
