GMC
>>
2011
>>
Terrain AWD L4-2.4L
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Accessories and Optional Equipment
>>
System Diagram
>>

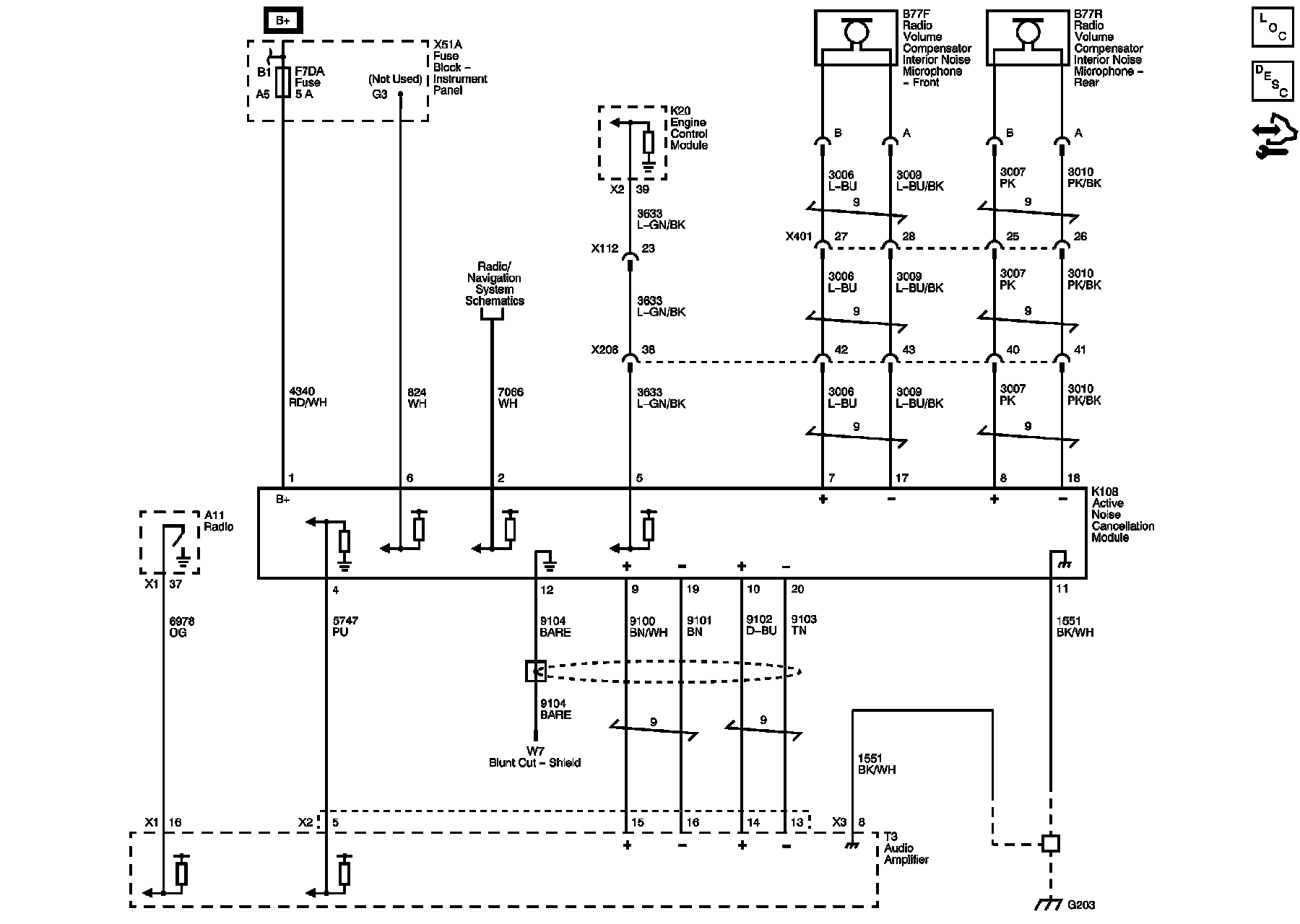

Active Noise Cancellation Schematics
Active Noise Cancellation Schematics
Active Noise Cancellation Schematics
