Home >> GMC >> 2011 >> Terrain AWD L4-2.4L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Wiper Motor

Wiper Motor




Component Connector End Views

M45 Rear Wiper Motor

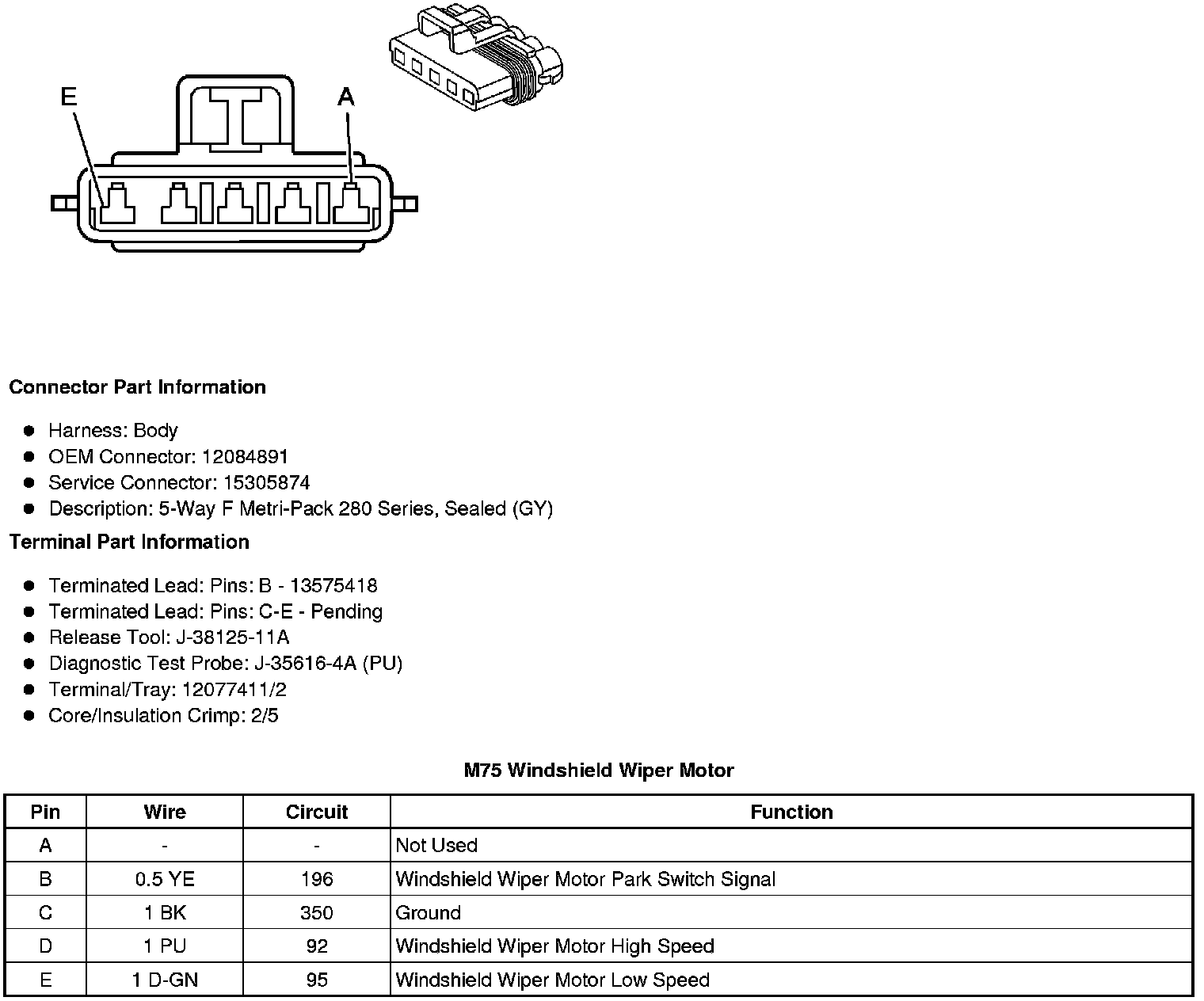

M75 Windshield Wiper Motor
