Trunk / Liftgate Latch
Trunk / Liftgate Latch
Component Connector End Views

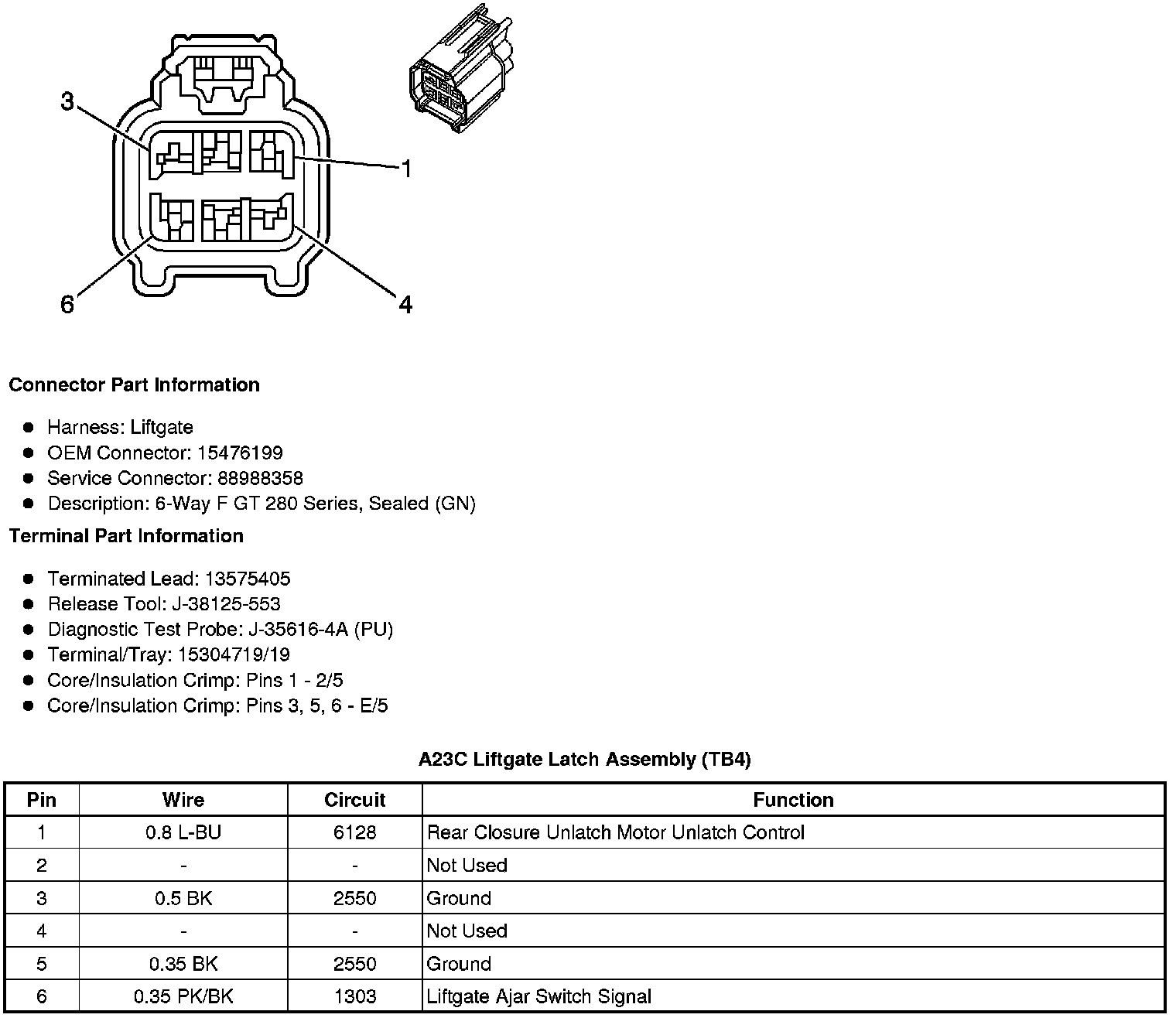

A23C Liftgate Latch Assembly (TB4)

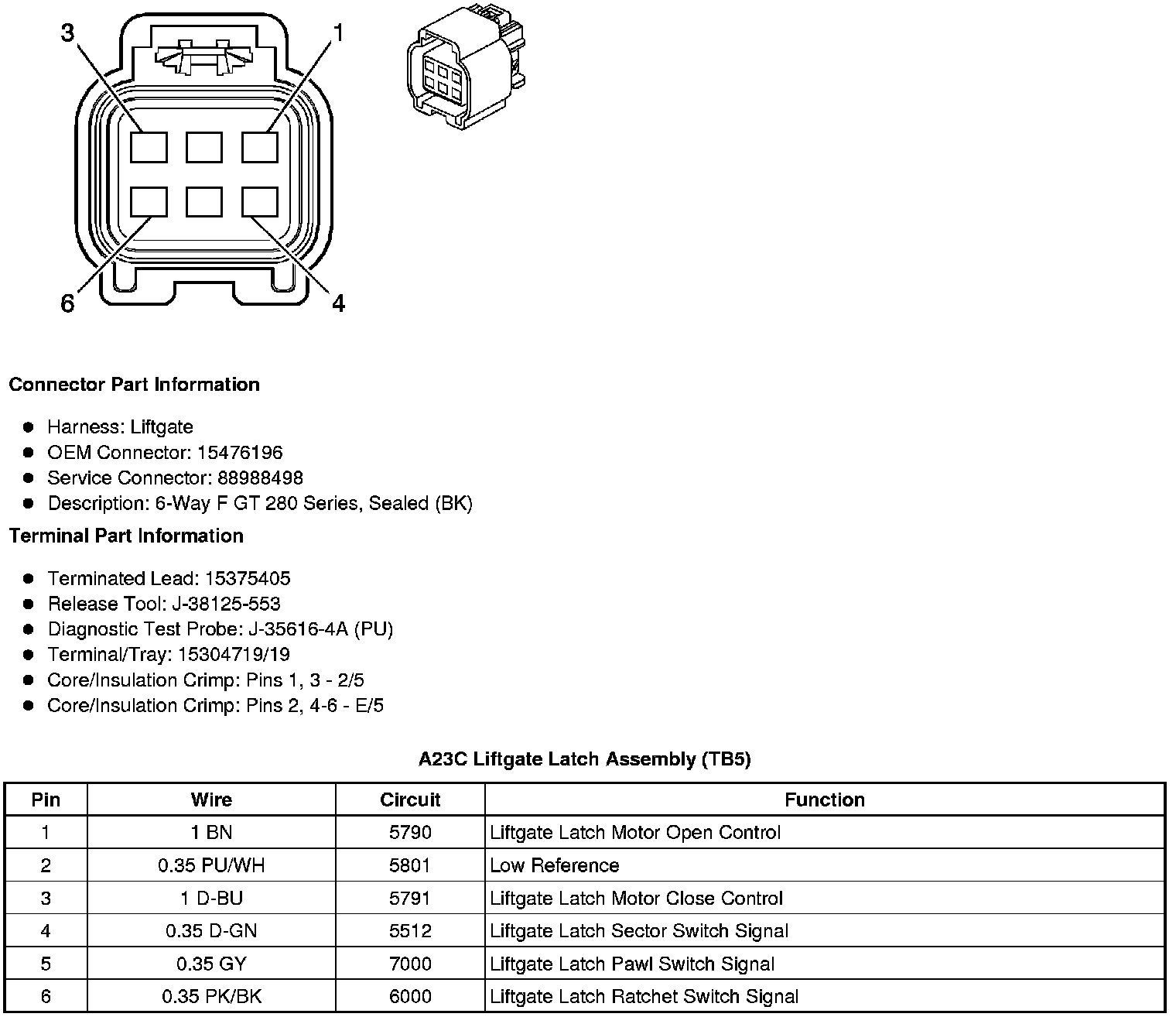

A23C Liftgate Latch Assembly (TB5)
