Sunroof / Moonroof Switch
Sunroof / Moonroof Switch
Component Connector End Views

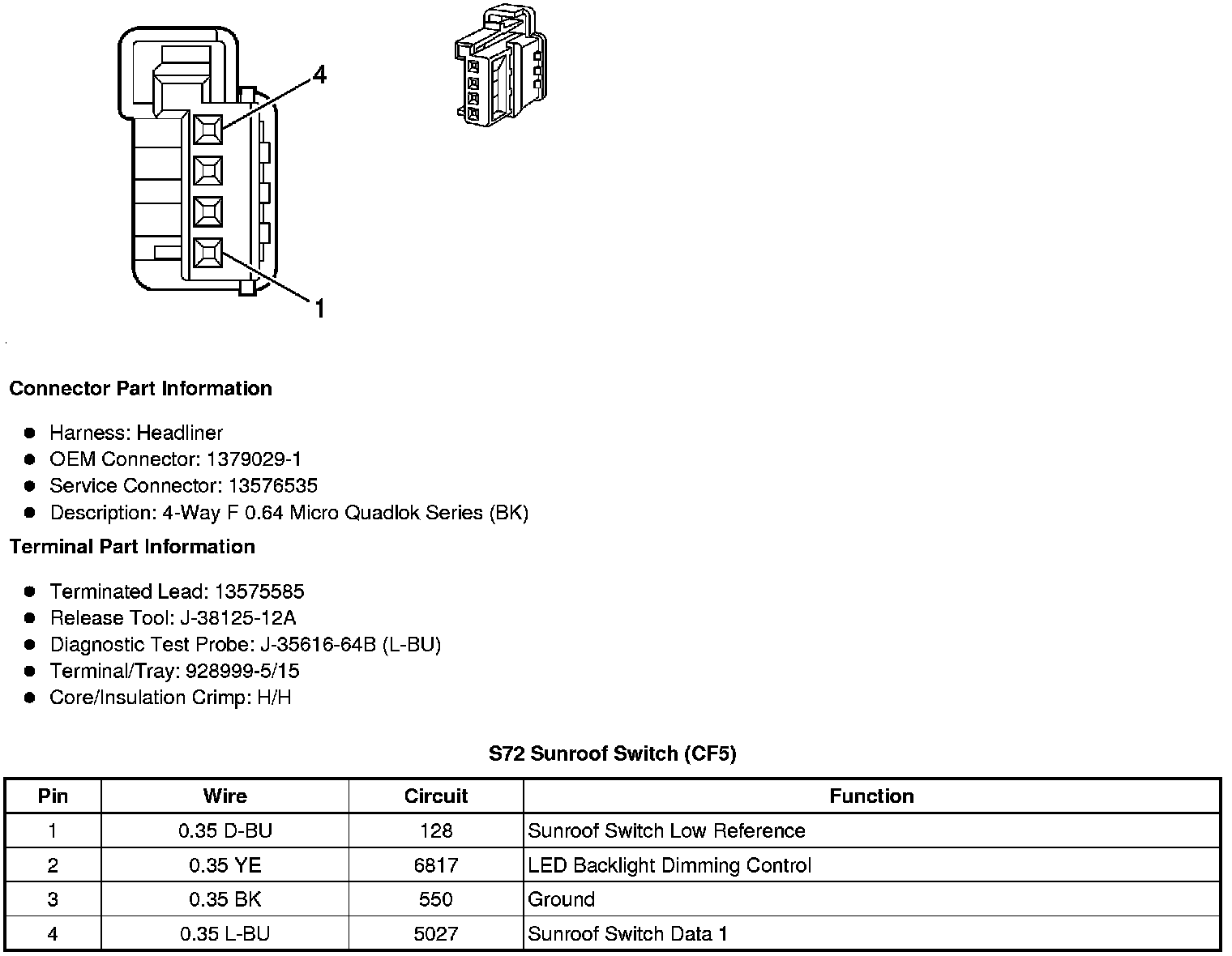

S72 Sunroof Switch (CF5)

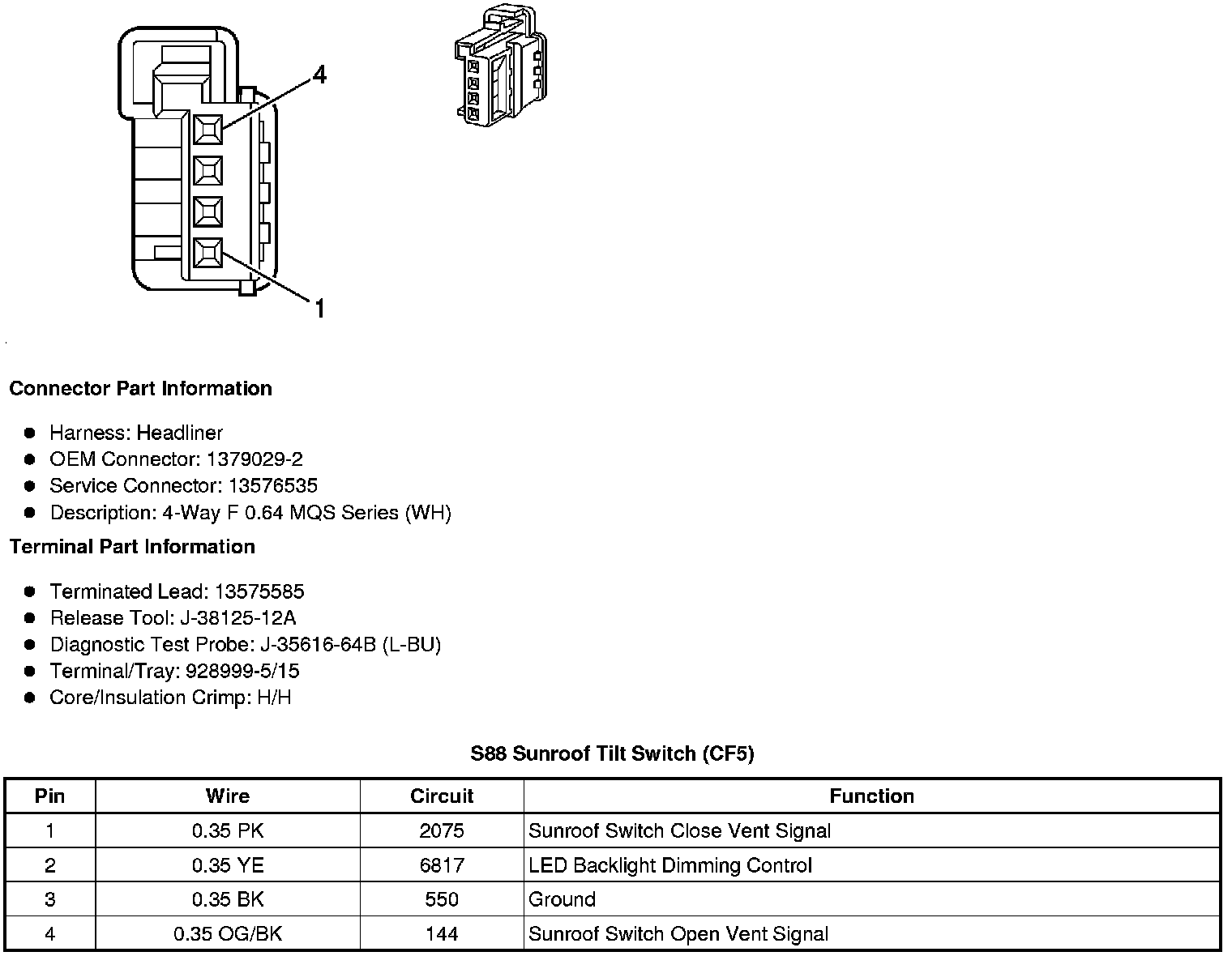

S88 Sunroof Tilt Switch (CF5)
