Shift Solenoid, A/T




Component Connector End Views

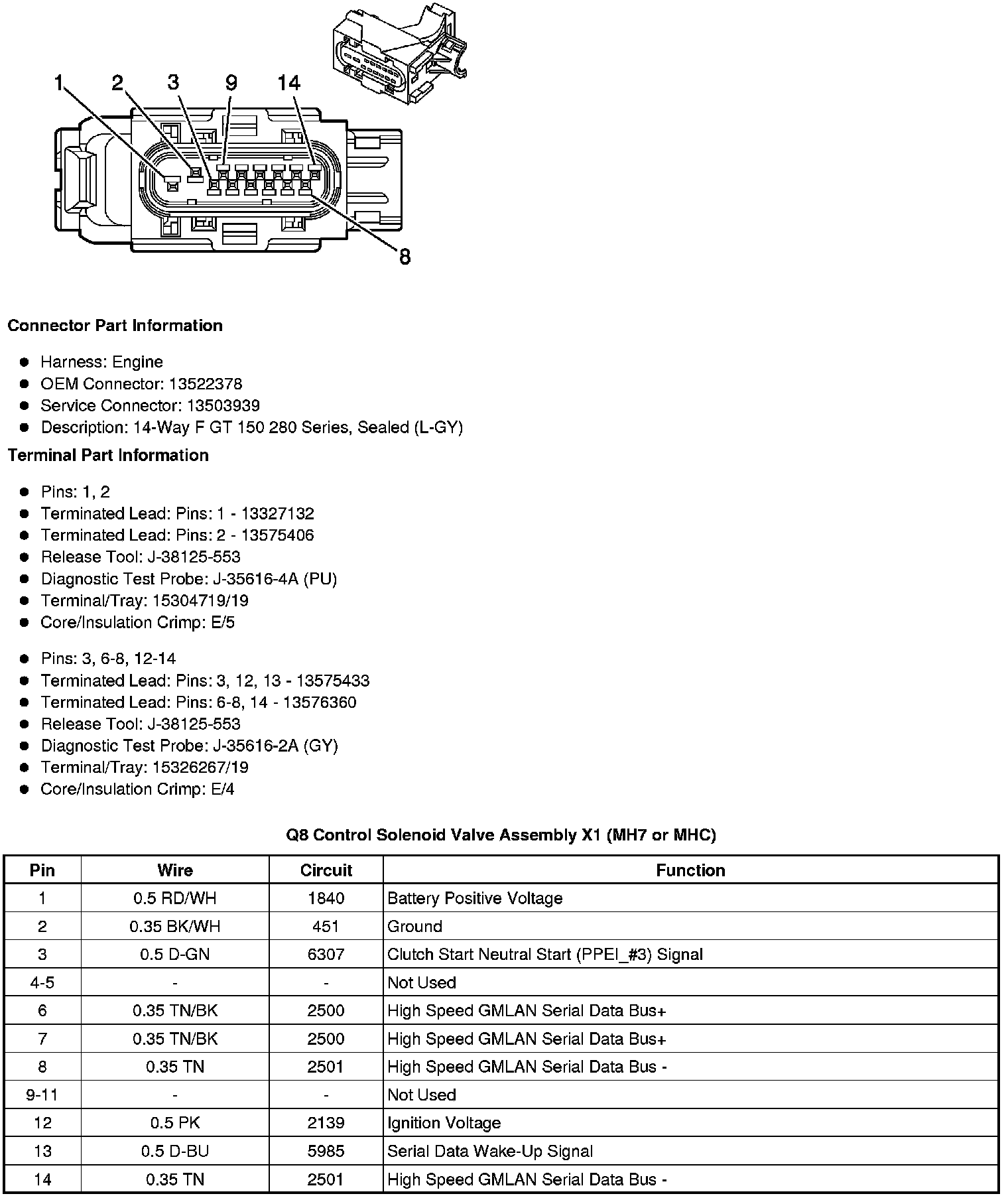

Q8 Control Solenoid Valve Assembly X1 (MH7 or MHC)

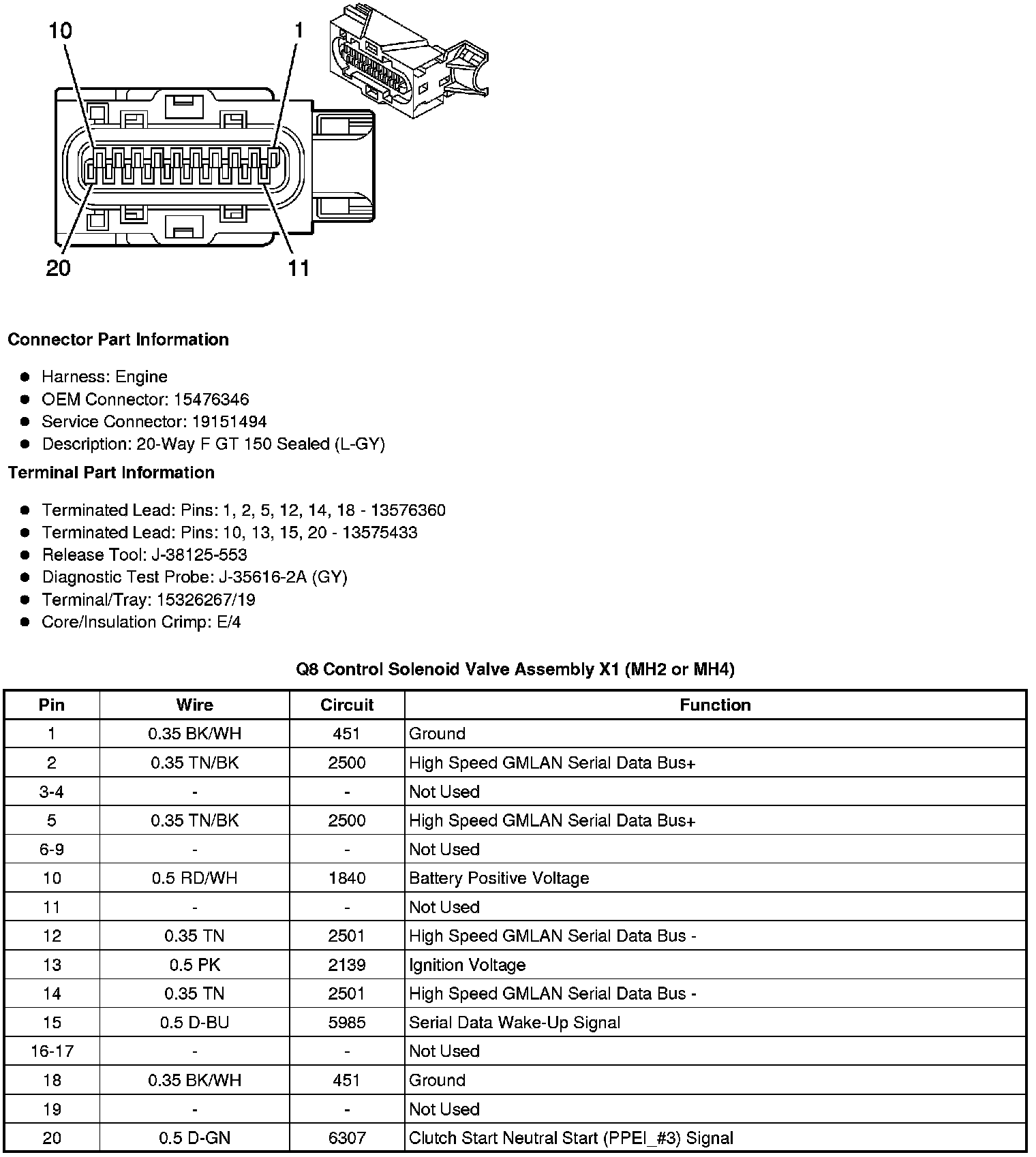

Q8 Control Solenoid Valve Assembly X1 (MH2 or MH4)

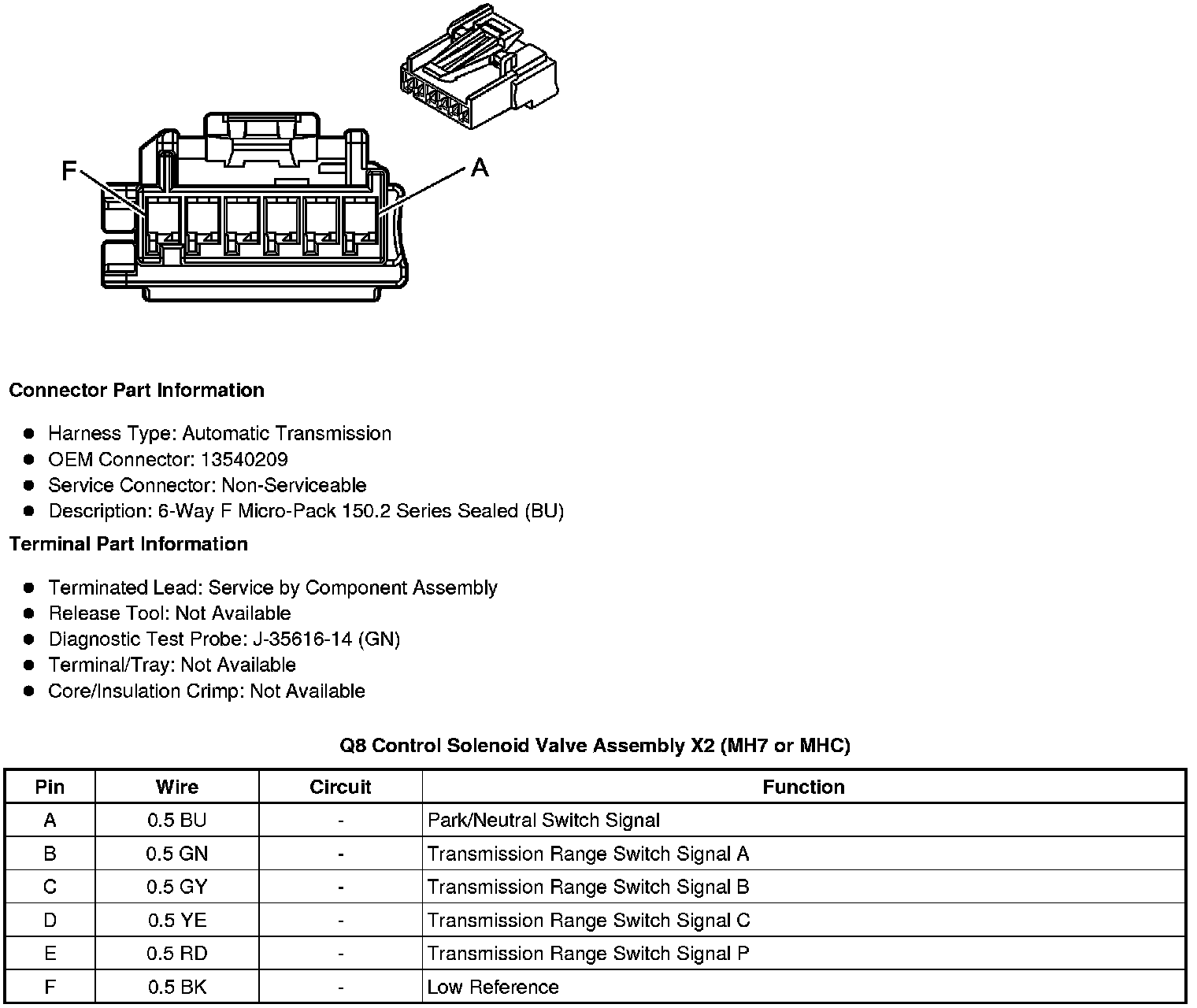

Q8 Control Solenoid Valve Assembly X2 (MH7 or MHC)

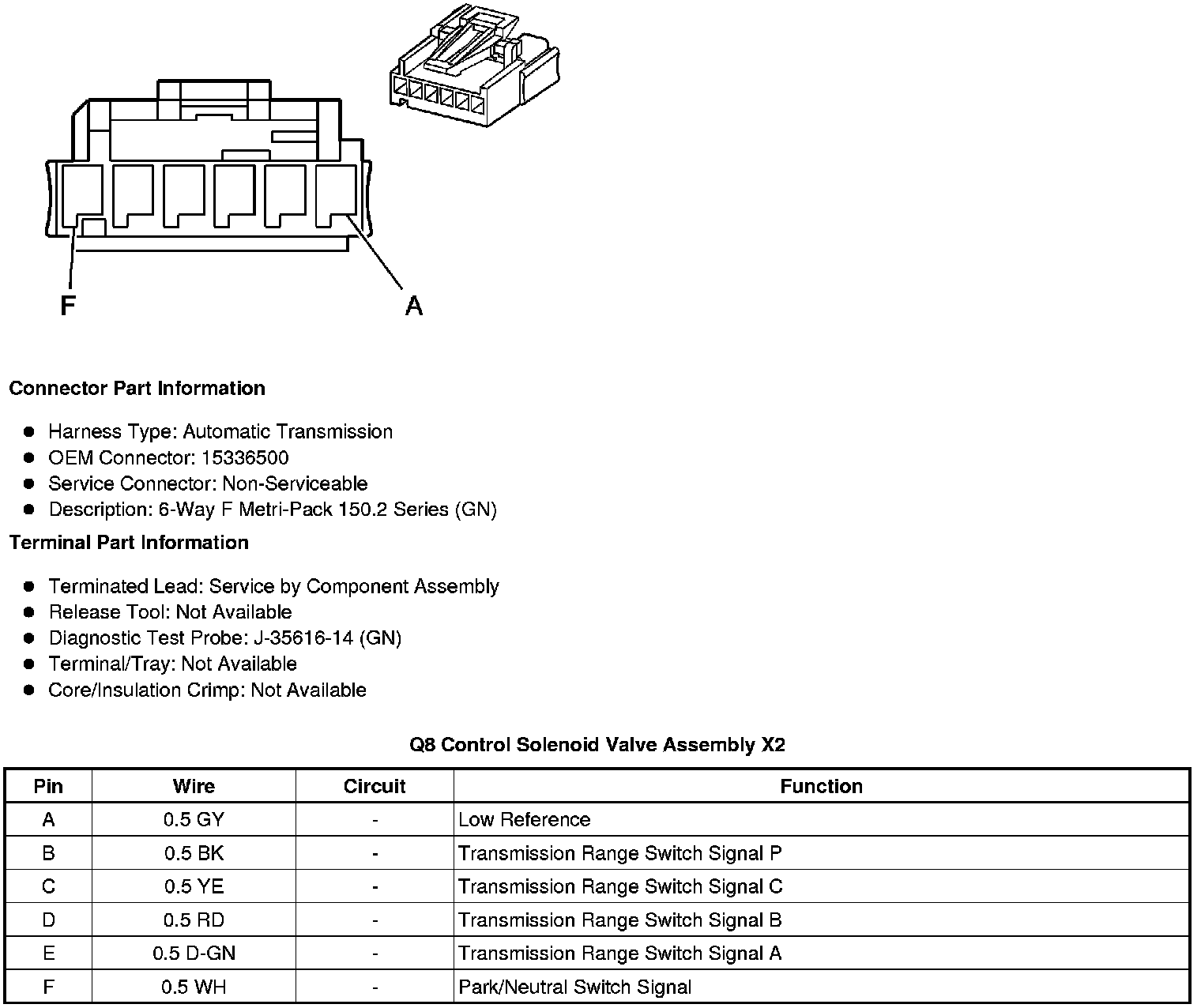

Q8 Control Solenoid Valve Assembly X2





Q8 Control Solenoid Valve Assembly X3 (MHC)

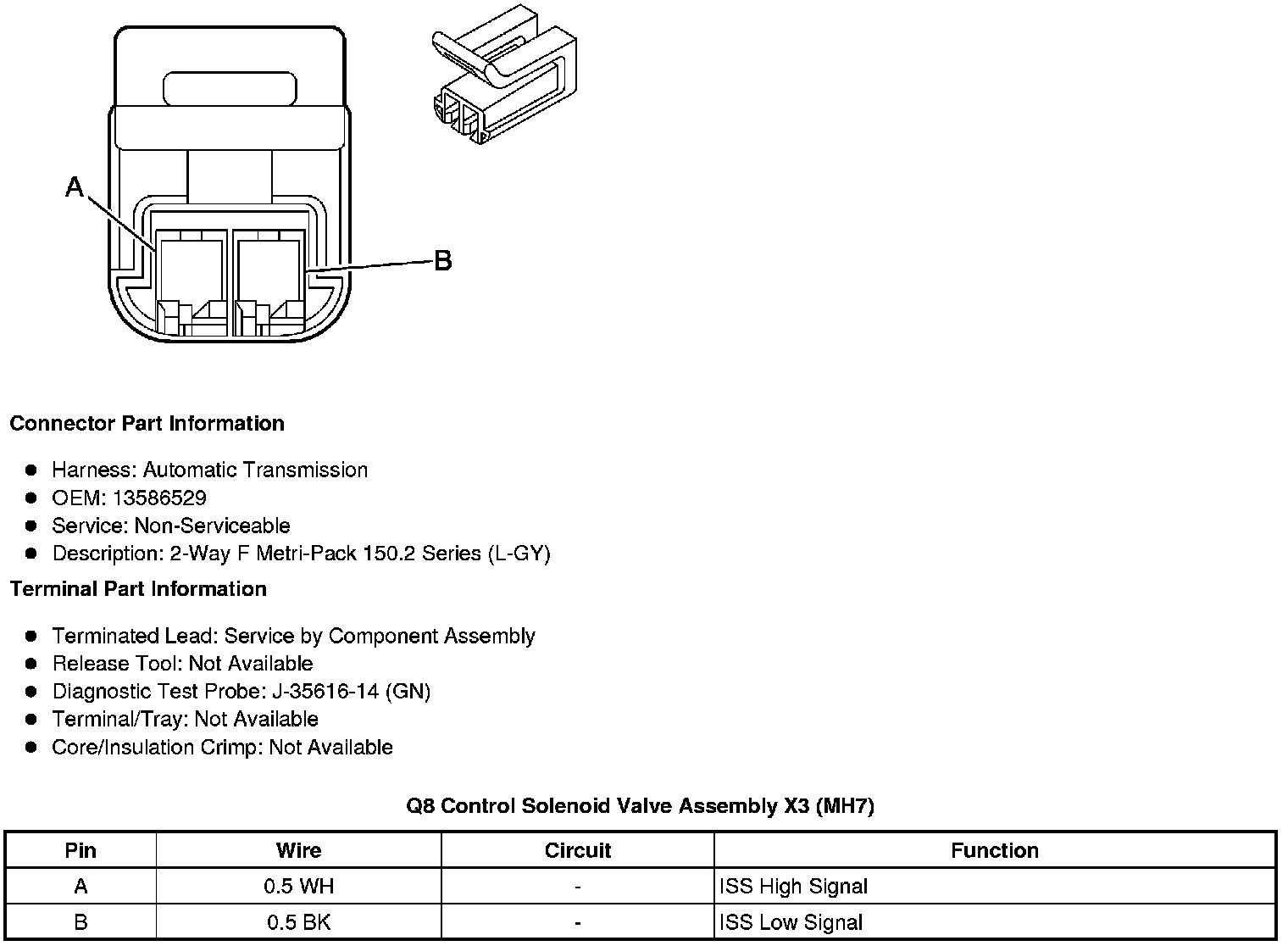

Q8 Control Solenoid Valve Assembly X3 (MH7)

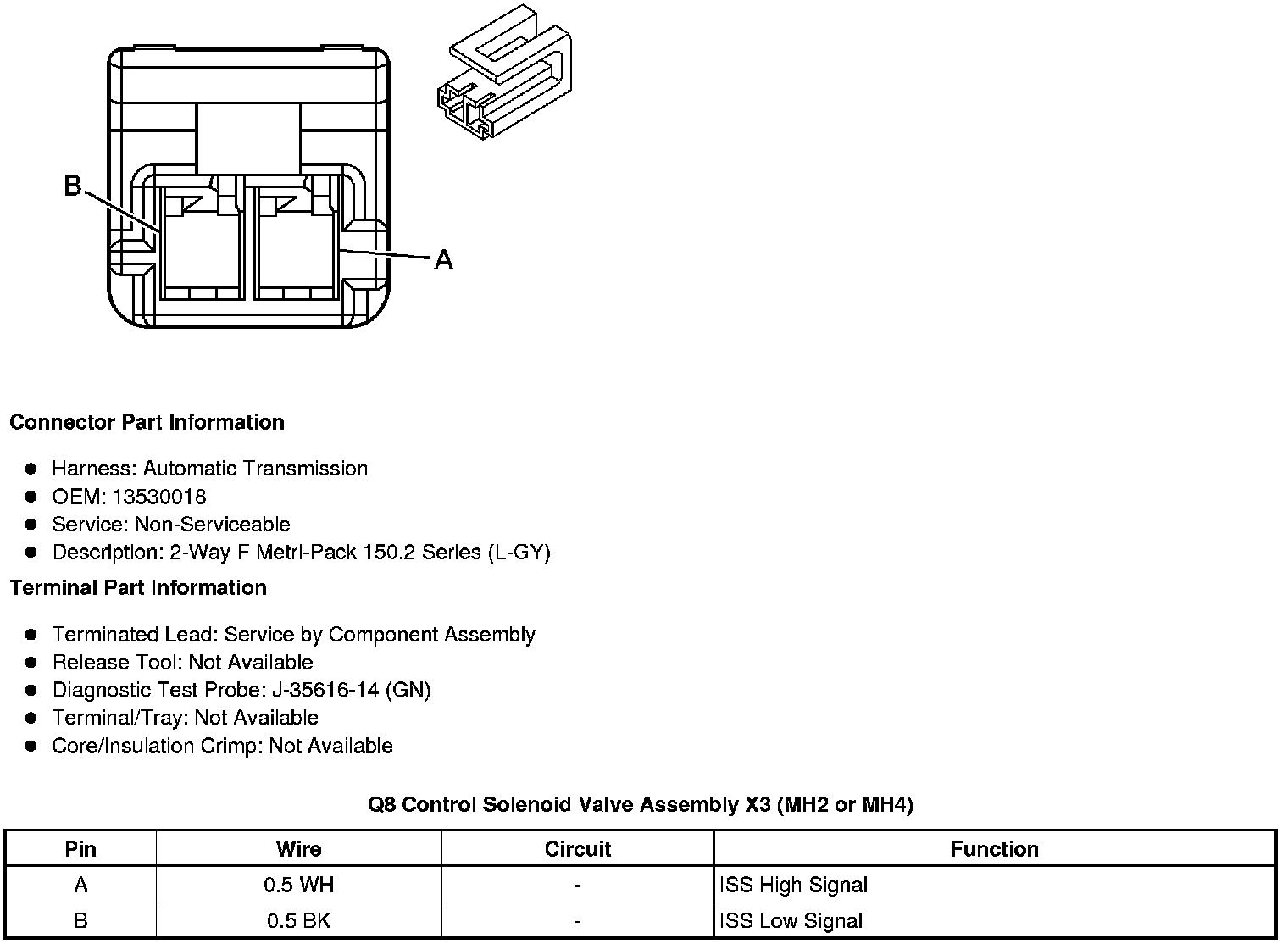

Q8 Control Solenoid Valve Assembly X3 (MH2 or MH4)

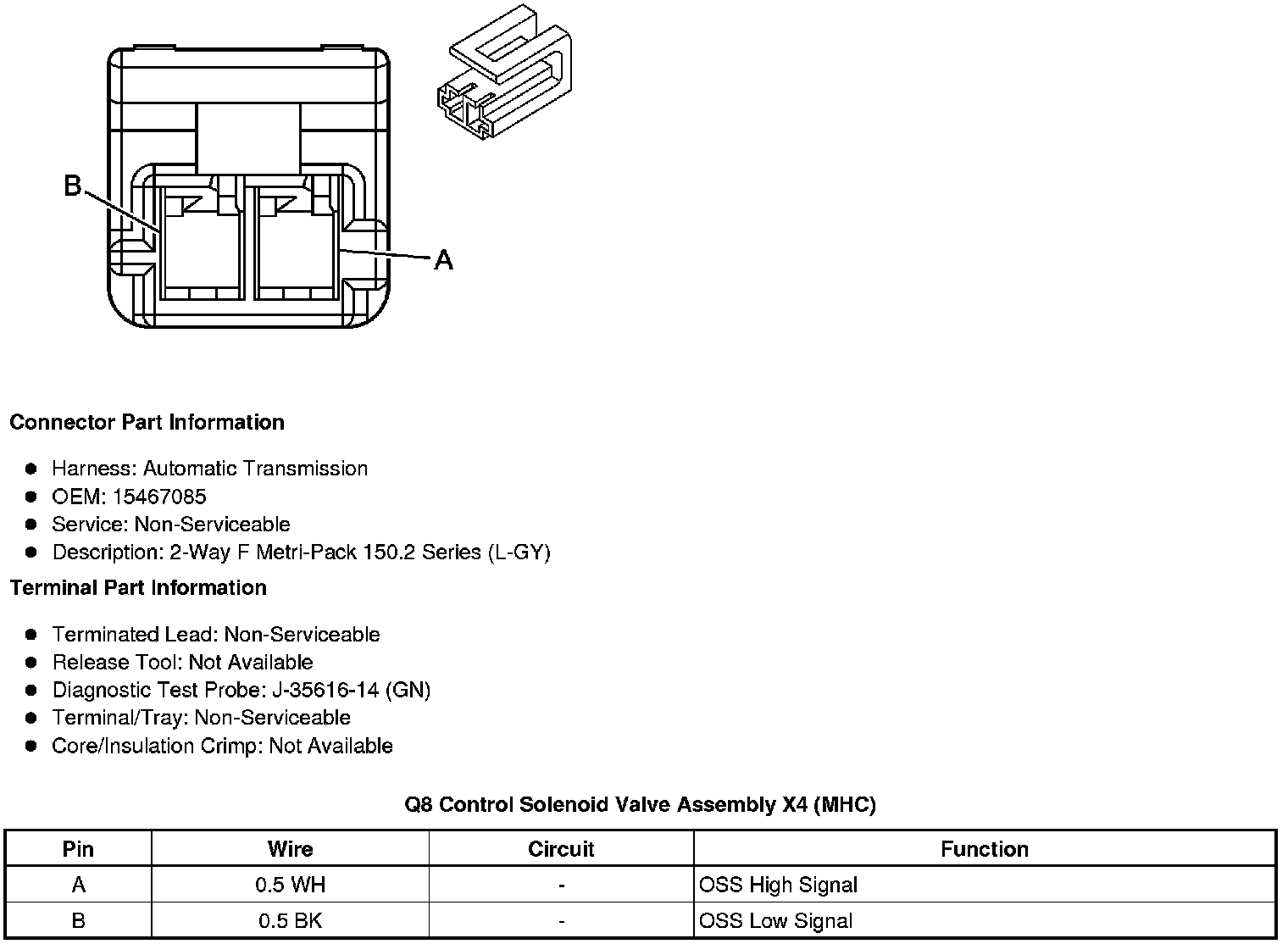

Q8 Control Solenoid Valve Assembly X4 (MHC)





Q8 Control Solenoid Valve Assembly X4 (MH7)

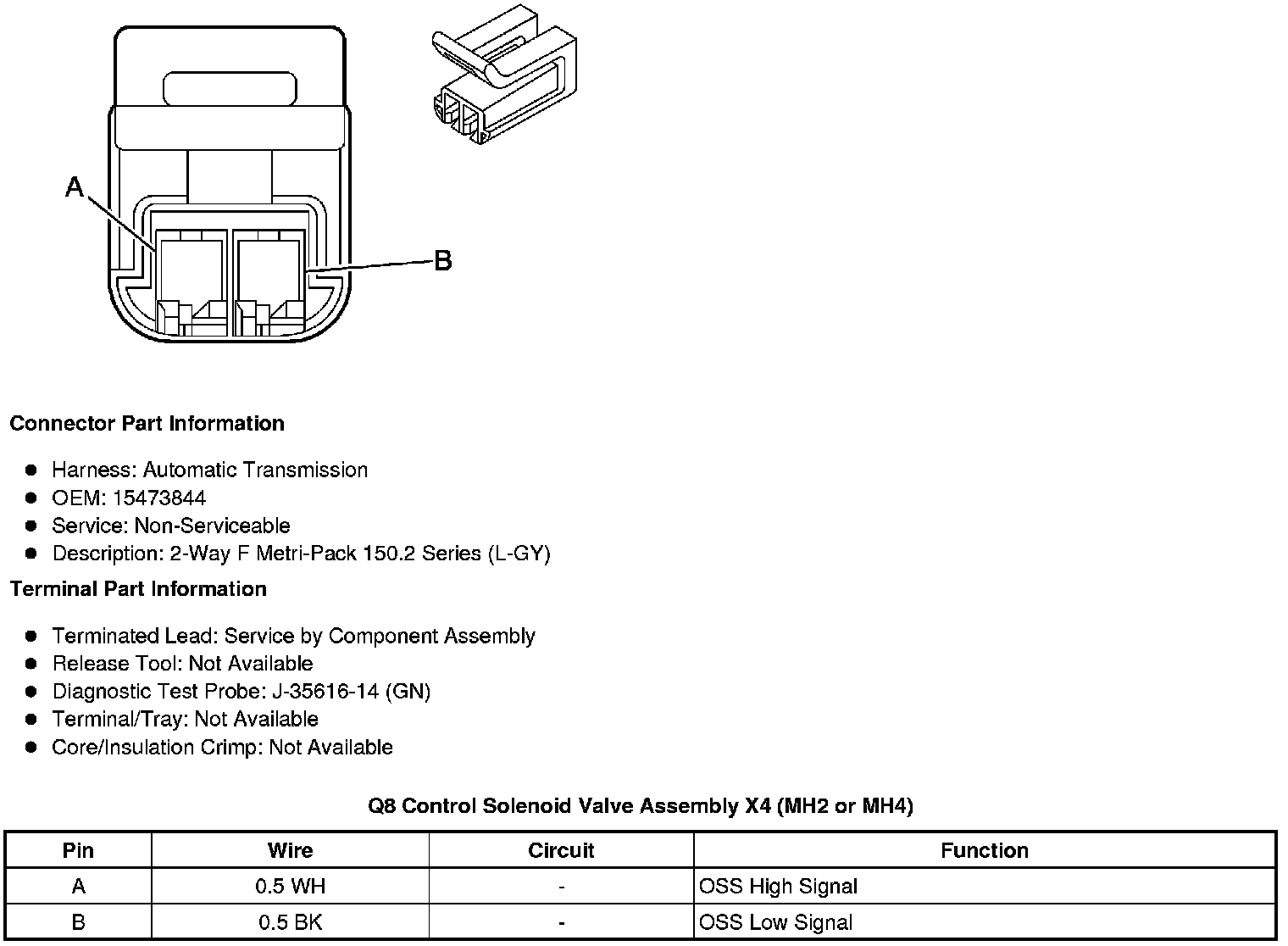

Q8 Control Solenoid Valve Assembly X4 (MH2 or MH4)
